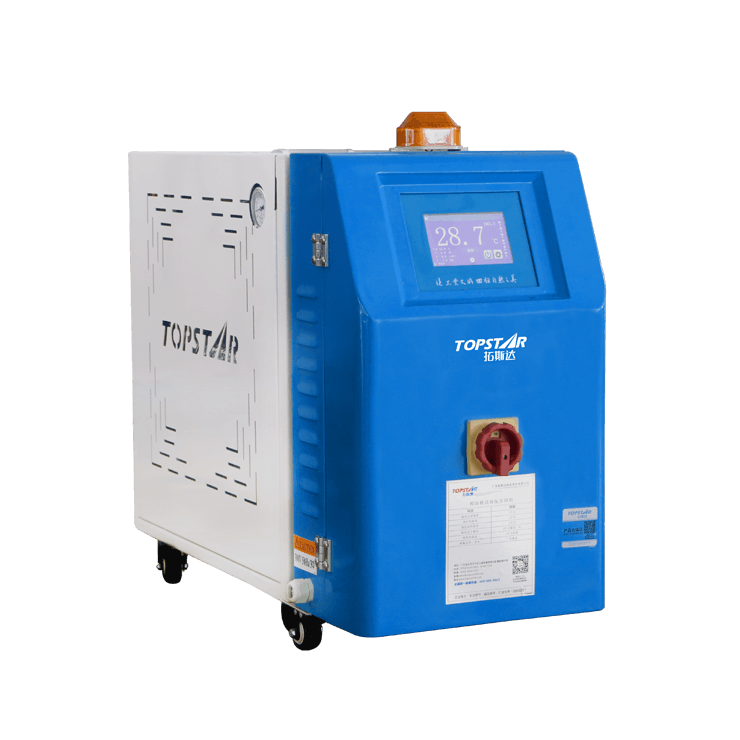

Mold Temperature Controller

Topstar’s fourth-generation mold temperature controller is designed for injection molding applications requiring fast heating, stable temperature control, and reduced water leakage. With intelligent control features and a temperature control accuracy of ±0.1°C, it supports consistent production and digital monitoring. Compared with the previous generation, it offers a 10% improvement in temperature control efficiency and a 40% increase in heater service life.

Features

  • 1. The electric control box is isolated from the body, with good heat insulation effect and long service life of the electrical appliances.
  • 2. The special 7-inch touch screen controller for the mold temperature machine makes the operation more convenient and the temperature control more reasonable.
  • 3. The main pipeline adopts 304 stainless steel precision casting pipeline, which is integrally formed, with small pipe loss, uniform heating and long service life.
  • 4. The 120℃ standard water-type mold temperature controller is equipped with a pressure detector, and the 160℃&180℃ mold temperature controllers adopt an indirect cooling sealed circulation mode and a micro-boosting pump to replenish water, reducing the requirements for water inlet pressure.
  • 5. The high-temperature water-type mold temperature controller is equipped with a gas collection tank as standard to prevent gas from flowing back into the system, reduce the formation of bubbles, and ensure stable operation of the equipment performance.
  • 6. Forced cooling, scheduled power on and off, and preheating one hour in advance increased efficiency by 10%, thereby greatly shortening the time required for mold change.
  • 7. PID temperature control algorithm improves temperature control efficiency by 10%, ensuring temperature uniformity.
  • 8. Use solid-state relays for temperature control, with a response time of 0.1s, to ensure product yield.

Core product accessories

  • 1. Nickel-plated copper heater
  • 2. Standard 50μm high-precision filter (optional 30μm)
  • 3. Pressure detector
  • 4. Teflon float ball



Send Inquiry Category Brochure

Adequate supply of goods, available for delivery within 35 days.

The fourth-generation mold temperature controller meets customer needs

The fourth-generation mold temperature controller system is more intelligent.

10 minutes

Cooling and Mold Change

View details

In the traditional production process, mold replacement usually requires a long waiting time, and the mold must be completely cooled before it can be disassembled and replaced.

The fourth-generation mold temperature controller has the functions of forced cooling and timed power on and off. By continuously opening the cooling solenoid valve to cool down, the temperature of the mold can be reduced in about 10 minutes.

Preheating one hour in advance can increase efficiency by 10%, thereby greatly shortening the time required for mold change.

±0.1℃

PID Temperature Control

View details

In order to make the temperature control accuracy more precise, Topstar's fourth-generation mold temperature controller can maintain a temperature control accuracy of ±0.1℃.

Through the latest PID temperature control algorithm, the temperature control efficiency is increased by 10% to ensure temperature uniformity.

0.1s

Solid-State Relay Response

View details

In addition, solid-state relays are used for temperature control in the hardware part, and the response time can be brought to 0.1s.

Through the dual protection of software and hardware, the temperature is ensured to fluctuate within ±0.1℃ to ensure product yield.

Structural Materials and Filtration

Topstar copper heater Copper Heater

In terms of structural materials, the newly upgraded copper heater makes the impurities in the water less likely to adhere to the copper surface and not easy to scale. Copper has excellent ductility and thermal conductivity, with a lifespan of 40% and an efficiency of 10%.

Topstar filtration Filtration

The mold temperature controller can be used normally even when the water quality is poor. At the same time, it is equipped with a 50-mesh high-precision filter and an optional precision filter with a 30μm filtration grade. The filter aperture is about 0.03mm, which can effectively filter impurities and prevent mold clogging.

Topstar liquid-level detection Ultrasonic Media Inspection

Detection is achieved by monitoring changes in the intensity of sound waves as they propagate through the medium. The system remains unaffected by the presence of minor oil traces or impurities, as well as by high-temperature and high-pressure conditions; it is entirely immune to issues such as impurity adhesion, mechanical jamming, or damage leading to water ingress, ensuring stable, long-term operation.

Heat Medium Recovery and Pure Water Circulation

Heat Medium Recovery

In the fourth-generation mold temperature controller, the heat medium recovery technology is used to completely replace the residual medium in the mold with high-pressure gas, thereby preventing the mold from being damaged and improving the product yield.

Pure Water Circulation

The pure water series mold temperature controller has its water tank, uses pure water as the circulating medium, and a closed circulation system to prevent metal ions from corroding the mold and scale from clogging the mold. Reduce the requirements for water quality to avoid mold rust.

PRODUCT RANGE

Compare Topstar Mold Temperature Controller Series

Topstar offers water and oil mold temperature controllers for different operating temperatures, circulation requirements, and monitoring needs. Compare the configurations below, then select a model according to your mold and production conditions.

Topstar standard water type mold temperature controller

TTWP Series

Standard Water Type

Topstar flagship water type mold temperature controller

TTWB Series

Flagship Water Type

Topstar high-temperature oil type mold temperature controller

TTOP Series

High-Temperature Oil Type

Series / Configuration Maximum Temperature Options Key Differences When to Consider It
TTWP Standard Water Type 120°C, 160°C, 180°C Different heater and pump configurations for water-based mold temperature control Injection molding applications requiring controlled heating and circulation
TTWP High-Flow Water Type 120°C Multi-stage centrifugal pump; selected models offer maximum flow rates of 266 or 366 L/min Large molds or multiple circuits requiring higher total circulation flow
Pure Water Configuration 160°C, 180°C Dedicated water tank separates the circulating medium from the external cooling-water circuit Applications requiring cleaner circulating water or reduced exposure to external water contamination
TTWB Flagship Water Type 160°C, 180°C Ultrasonic flow monitoring and flow/pressure trend displays Production requiring greater visibility into mold-circuit conditions and easier fault investigation
TTOP Oil Type 200°C, 320°C Thermal-oil circulation; pump and structural configurations vary by temperature rating Processes requiring temperatures beyond the available water-type models

Representative Mold Temperature Controller Specifications

Model Medium Maximum Temperature Heater Power Maximum Pump Flow Maximum Pump Pressure Cooling Method
TTWP-1210 Water 120°C 8 kW 58 L/min 0.44 MPa Direct
TTWP-125024F Water 120°C 24 kW (12 × 2) 366 L/min 0.52 MPa Direct
TTWP-1810 Water 180°C 8 kW 54 L/min 0.50 MPa Indirect
TTWB-1810 Water 180°C 8 kW 54 L/min 0.50 MPa Indirect
TTOP-2010 Oil 200°C 8 kW 55 L/min 0.44 MPa Indirect
TTOP-3210 Oil 320°C 12 kW 54 L/min 0.50 MPa Indirect

Maximum pump flow and maximum pump pressure are separate performance limits and do not occur simultaneously. Actual circulation depends on mold-circuit resistance. The listed models are representative; confirm operating conditions, electrical supply, and final configuration with Topstar before ordering.

Need help comparing models? Send us your temperature, heating, and circulation requirements.

Discuss Your Requirements
SELECTION GUIDE

What Should You Confirm Before Selecting a Mold Temperature Controller?

A suitable mould temperature controller must match the mold’s temperature window, heating requirement, circulation demand, and number of independently controlled zones. Confirm these conditions before choosing a model.

Water or oil? Match the operating temperature and cooling-water conditions.

Operating Temperature and Cooling-Water Conditions

Specify both the highest and lowest temperatures required during production. A model’s maximum temperature rating alone does not establish whether it can maintain the required conditions under load.

Also confirm the available cooling-water temperature, pressure, and supply capacity. A mould temperature controller transfers heat to the cooling-water supply; it does not generate refrigeration. Low-temperature requirements may therefore need a suitable chilled-water source.

How much heating power? Size the heater for mold weight and the required preheating time.

Mold Weight and Required Preheating Time

Heating power should be assessed using mold mass, starting temperature, target temperature, and the time available for preheating.

For example, heating an 800 kg mold from 30°C to 110°C within one hour gives an estimated heater requirement of approximately 10.64 kW using the material assumptions and allowance in Topstar’s selection example. A 12 kW configuration can then be considered for further assessment.

This is a preliminary preheating estimate. Continuous-production heat load, heat losses, and cooling requirements must be evaluated separately.

Which pump configuration? Match the target flow to the resistance of the mold circuits.

Required Flow and Mold-Circuit Resistance

Provide the required circulation flow and pressure-loss information where available. Circuit length, channel diameter, parallel branches, and restrictions affect the pump’s actual operating point.

A high-flow configuration may suit molds requiring greater total circulation, while more restrictive circuits require sufficient pump head at the target flow. Injection molding machine tonnage can provide initial context, but should not replace a mold-circuit assessment.

One temperature zone or two? Use independent zones when mold halves need different temperatures.

Independent Temperature Zones and Installation Requirements

If the fixed and moving mold halves require different temperatures, consider a dual-zone configuration or separate units. Size the heater and pump for each controlled circuit.

Before ordering, confirm supply voltage and frequency, connection sizes, cooling-water conditions, and any communication requirements.

For a model recommendation, send Topstar your target temperature range, mold weight, preheating time, circuit requirements, cooling-water conditions, and electrical supply.

APPLICATIONS

Built for Real Production Needs

Different production problems call for different temperature-control configurations. These applications illustrate how Topstar matches equipment features to workshop and mold requirements.

HOME APPLIANCE PRODUCTION

Cleaner workshop. Flexible placement.

Water-type units replaced oil-type equipment to address oil contamination and floor-space needs.

View application details

Water-Type Mold Temperature Control for Home Appliance Production

A home appliance manufacturer used Topstar water-type mold temperature controllers to replace existing oil-type units. The project addressed workshop oil contamination and the need for more flexible equipment placement.

The water-based solution helped improve workshop cleanliness, while the compact equipment supported more efficient use of floor space.

For a similar replacement, first confirm that the required operating temperature, circulation performance, and cooling conditions are within the selected water-type model’s capabilities.

PRECISION MOLD TESTING

See circuit conditions. Focus troubleshooting.

Ultrasonic flow monitoring helps operators investigate circulation abnormalities during precision mold testing.

View application details

Flow Monitoring for Precision Mold Testing

A precision mold manufacturer serving export markets selected Topstar’s flagship mold temperature controller with ultrasonic flow monitoring to support demanding mold-testing requirements.

Flow and pressure trends provide additional information about circulation conditions, helping operators investigate abnormalities associated with restricted flow, leakage, or unstable circulation. This supports more focused troubleshooting than relying on the temperature display alone.

For comparable applications, evaluate the required monitoring functions alongside temperature, heater capacity, and pump performance.

Discuss Your Mold Temperature Control Requirements with Topstar
FAQ

Everything You Need to Know About
Mould Temperature Controller

Here are some frequently asked questions regarding the selection of mold temperature controllers, covering the choice between water-type and oil-type models, maintenance requirements, temperature control solutions, and industrial application scenarios. Please contact us for further details!

TEMPERATURE CONTROL SOLUTION
±0.5°C

The third-generation PID algorithm adapts to changes in the mold and environment, delivering more precise temperature control with an accuracy of ±0.5°C.

Q1 How do I choose between water-type and oil-type mould temperature controllers? +
The selection mainly depends on the required operating temperature. Water-type mold temperature controllers are suitable for standard injection molding applications requiring efficient heat transfer and economical operation, while oil-type controllers are designed for high-temperature applications requiring stable and precise temperature control.
Q2 Which type of mould temperature controller requires less maintenance? +
Water-type units generally require less maintenance, with lower media costs and mainly periodic descaling. Oil-type units require regular oil replacement, carbon deposit removal and leak-prevention maintenance, resulting in higher service requirements.
Q3 How should I choose if the mold temperature requirement is 180°C? +
For mould temperature requirements around 180°C, both water-type and oil-type solutions can be considered. Water-type controllers provide economical operation when water quality and pressure conditions are suitable, while oil-type controllers offer a safer solution when higher temperature stability and operating margin are required.
Q4 Are there mould temperature controllers suitable for automotive parts and large-scale molding? +
Yes. Topstar TTWP-F series high-flow mold temperature controllers are designed for demanding applications. With a vertical multi-stage centrifugal pump, the system provides a maximum flow rate of 366 L/min and pressure up to 5.2 bar, making it suitable for thick-walled automotive parts and high-flow molding processes requiring stable temperature control.
TECHNOLOGY CENTER

Advanced Mold Temperature
Control Technology

Explore Topstar’s mold temperature control technologies, including precision temperature management, water and oil type selection, and high-flow solutions for demanding injection molding applications.

01

Precision Temperature Control

Learn how PID control technology and high-response heating systems maintain stable mold temperatures and improve product consistency.

02

Water Type vs Oil Type Selection

Understand the differences between water and oil temperature controllers and select the right solution according to processing temperature requirements.

03

High Flow Temperature Solutions

Discover high-flow mold temperature solutions designed for automotive parts, large molds and applications requiring stable heat transfer.

Series Models

Topstar's mold temperature controller series primarily consists of the TTWB flagship series, the TTWP standard water-type, and the TTOP standard oil-type series.

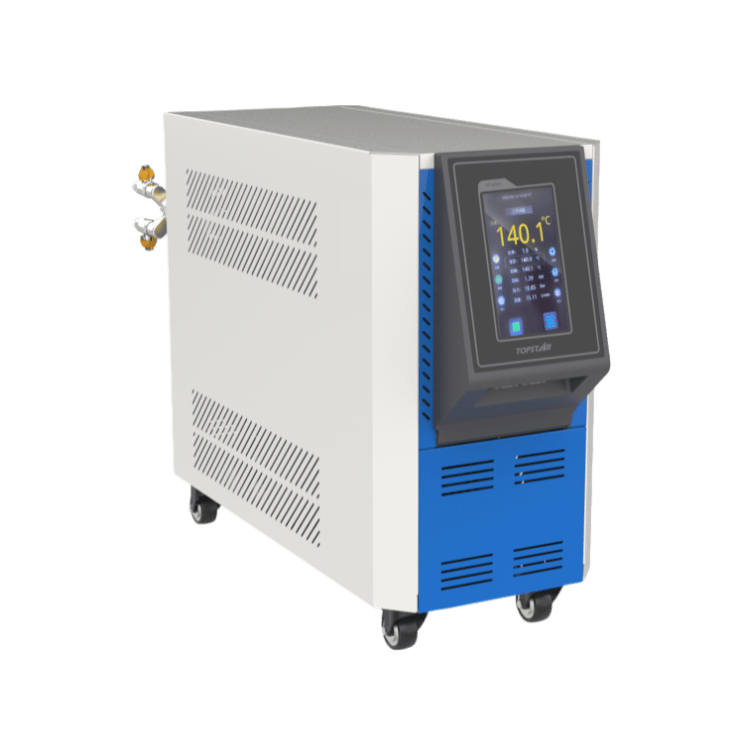

TTWB Series Water-Cooled Mold Temperature Controller
TTWB Series Water-Cooled Mold Temperature Controller

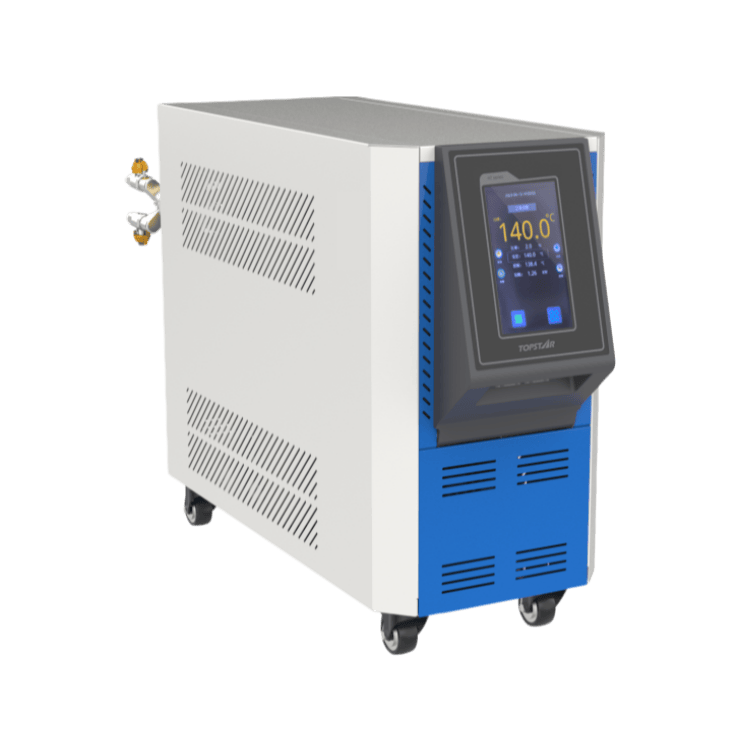

TTWP Series Water-Type Mold Temperature Controller
TTWP Series Water-Type Mold Temperature Controller

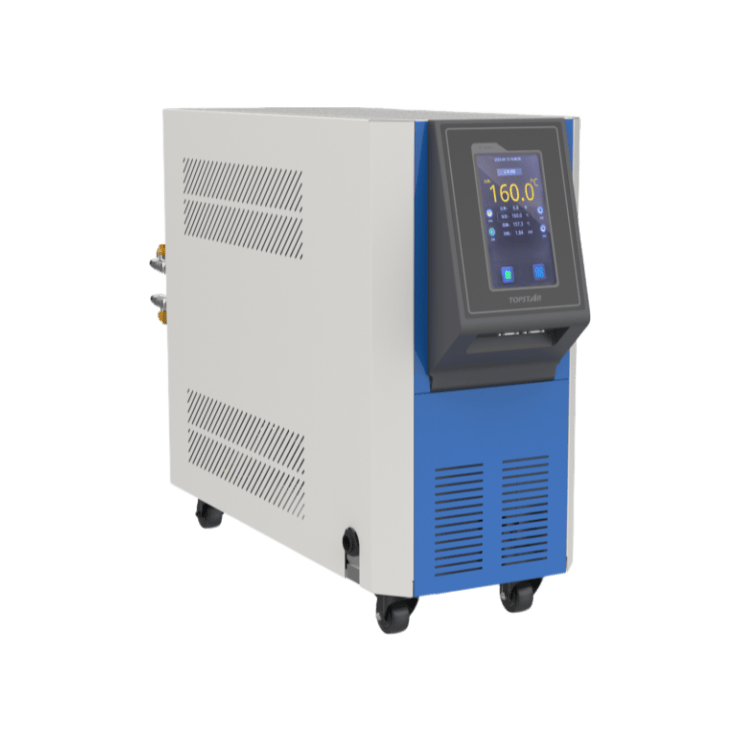

TTOP Series Oil-Type Mold Temperature Controller
TTOP Series Oil-Type Mold Temperature Controller

Application Scenarios

Ideal for 3D printing, optics, medical, precision molds – prevents product/mold pollution.

  • Optical plastic products
    Optical plastic products
  • Medical plastic products
    Medical plastic products
  • Refrigerator or ac housings
    Refrigerator or ac housings

More Information

Recommend

Browse Categories

Help Center

View Our FAQs
Send Inquiry

Get A Quick Quote
