Industrial Robot

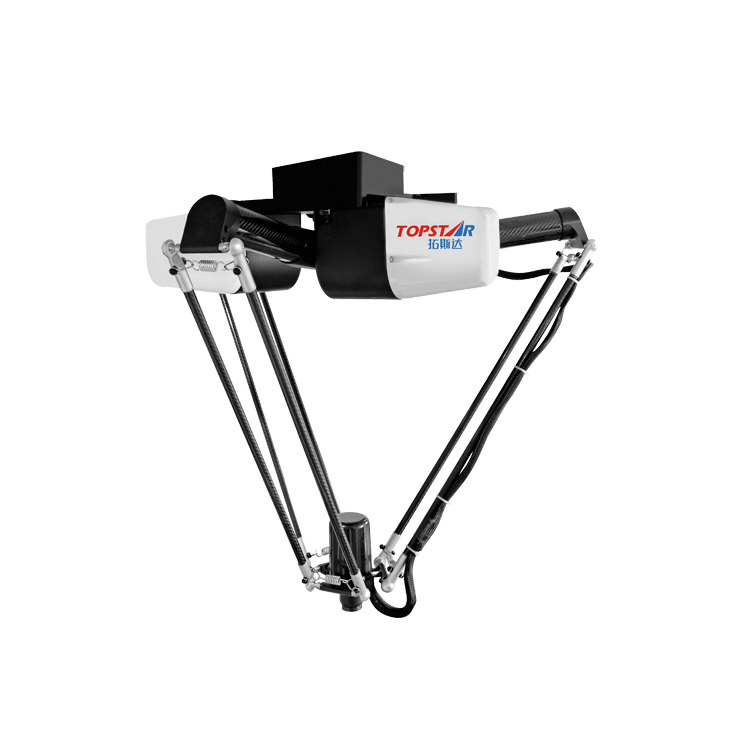

Topstar's industrial robots include the SCARA series, six-axis multi-joint series, parallel multi-joint series, and collaborative series. Load range 2-35kg, high load and high speed, standard cycle time is 0.48s. The repeatable positioning accuracy is ±0.025mm, achieving reliability and stability. IP40 or IP67 protection grade can be selected according to needs. The overall footprint is small, the structure is compact and lightweight, the arms are slender, and it supports installation at any angle.
Category Brochure
TRH002-400-150 0_1 Industrial Robot

Products

Industrial Robot

Products

Industrial Robot

  • High Performance
  • Reliability
  • Durability
  • Universally Applicable

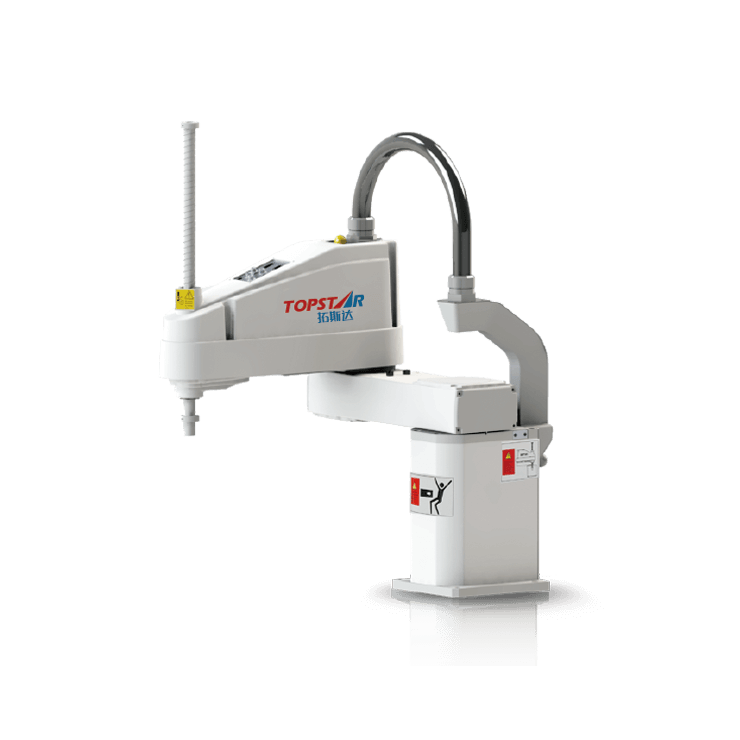

TRH002-300-150-S

Four-Axis Scara Robots

The independently developed four-axis SCARA robot is equipped with a precise integrated drive and control control system. Combined with a customized visual module, it can achieve rapid automatic calibration of the robot and is easy to operate. It has been optimized in appearance and function, with a smaller base size to save more space. The arm length can be selected from 300-700mm, which can meet the complex production processes and high-speed production requirements of 3C, packaging, medical and other industries.

Six Axis Industrial Robots

Six Axis Industrial Robots

The six-axis industrial robot has a lightweight body, an arm length of 715mm/912mm/1450mm/1813mm, and can bear a load of 7-35kg. The standard cycle time is less than 0.36 seconds, which meets the pursuit of maximum output in the shortest cycle time. The floor area is 180mmx180mm. It delivers maximum performance with a minimum footprint. Minimum working radius: 145.6 mm, reducing the footprint of the base space and ensuring a compact layout. It is mainly used in high-precision and precision production scenarios such as 3C electronics, and is used in assembly, pick and place, loading and unloading, tool operations, etc.

Did you know?
High-Security Equipment

Topstar’s direct press injection molding machine directly generates high pressure from the clamping cylinder on the plate, and the force point is in the same direction as the pressure in the cavity to achieve central clamping.
The plate deformation is quite small, and the product is not easy to flash. The force of the mold is balanced, and the service life of the machine is greatly extended.
For equipment of the same tonnage, about 10% of electricity can be saved after using the center clamping.
