All Electric Injection Molding Machine（90T-460T）
Featuring ultra-low injection speed, high-pressure holding capability, and precise pressure control, this electric injection molding machine eliminates shrinkage in thick-wall parts. A dedicated optical screw delivers superior mixing and venting performance, helping prevent yellowing in transparent products.
1. Communication response: 0.125 ms; repeatability: ±0.01 mm
2. Customized high-load mold; holding time up to 30 minutes
3. Injection precision: 0.1 mm/s
4. Mold design weight increased by 15%; load parallelism <0.05 mm
Characteristics
- 1. Low-damping injection unit for precise metering
- 2. The Servo self-driven motor runs at a very low speed and smoothly, and it can eliminate product flow marks.
- 3. High-precision pressure control, with a low-damping injection unit, to improve product stability.
- 4. High rigidity and low friction mechanical structure for precision molding.
- 5. Non-contact tie rod, The tie rod does not need lubrication, reduces pollution, and avoids strain on the column and movie mold linear guide.
Product Accessories
- 1. Wide support for platen and mold, stable dynamic support, stable mould opening and closing, and better protection of mould and machine.
- 2. High rigidity platen, full stress analysis, appropriate strength design.
- 3. Integrated injection unit, high rigidity, stable structure, more precise control.
- 4. Linear guide rails, low damping, more sensitive pressure detection, and more precise pressure control.
Adequate supply of goods, available for delivery within 35 days. You can consult the all electric injection molding machine price at any time.
Built For High Precision Manufacturing
Intelligent Electric Drive
Precision electric drive replaces traditional hydraulic systems, delivering faster, smoother, and more stable mold opening and closing. This reduces mechanical wear while also eliminating common problems such as oil leakage and vibration.
Digital Control Platform
The all-electric injection molding machine enables fast data transmission and coordinated control across all units. With digital process monitoring, it accurately controls key molding parameters, improving production efficiency and process stability.
High-Speed Servo Drive
The high-speed servo drive system minimizes communication delay and responds directly to motor commands in real time. This allows precise control of position, speed, and pressure, ensuring excellent molding performance.
Flexible Process Adjustment
Built on the concept of an “all-in-one injection molding process”, this machine supports real-time parameter adjustment for different materials and part designs. Customizable control strategies help deliver stable and accurate molding across a wide range of applications.
High-Rigidity Structure For Stable Injection Performance
The TEll series electric injection molding machines features optimized clamping and injection unit structures, delivering superior rigidity, enhanced motion stability, precise control capabilities, and reliable performance to ensure consistent, high-quality, and high-precision production.
High-Stability Platen Design
The TEll series features an expertly designed motion profile, ensuring smooth mold opening and closing actions. High platen rigidity guarantees consistent product quality and offers superior mold protection. The series accommodates a wide range of mold thicknesses, meeting diverse installation requirements. Additionally, an optional linear guide support system is available to ensure even smoother and more agile movement.

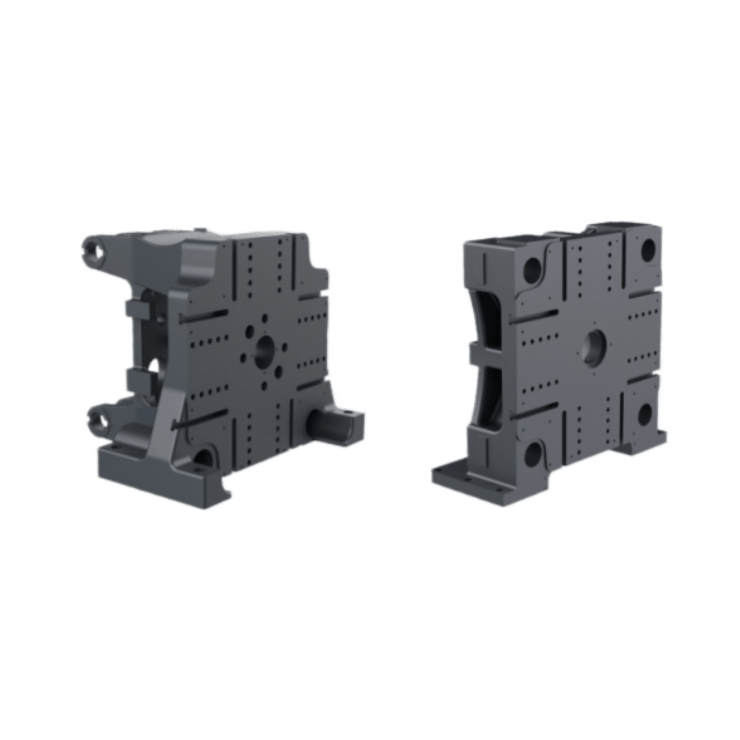

Wide Support Platen
Wide support base ensures stable dynamic support for platen and mold, providing smoother operation and enhanced mold protection.
Non-contact Tie-bar Design
Lubrication-free operation reduces contamination and tie-bar stress. Optional linear guide rail improves motion sensitivity and low-pressure mold protection.

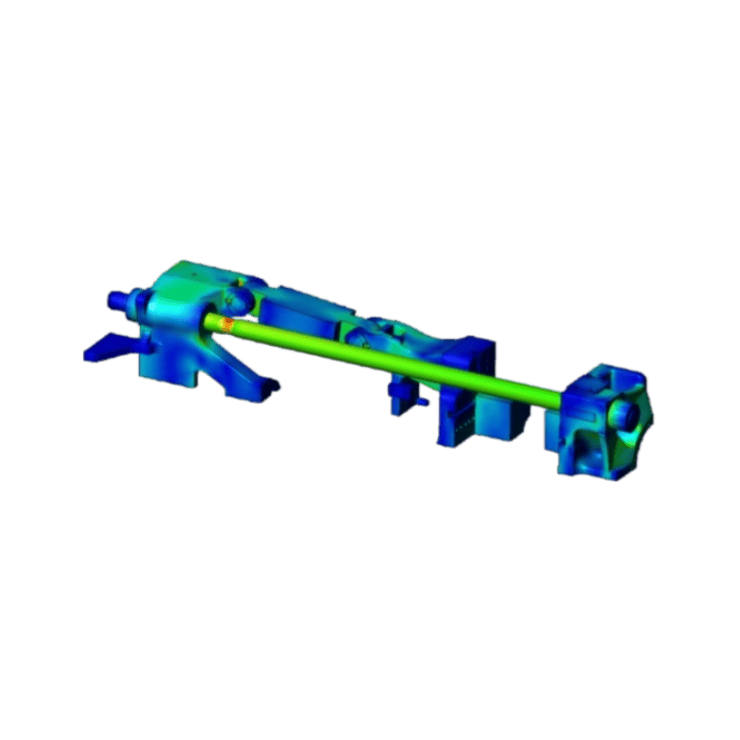

High-Rigidity Platen
Comprehensive stress analysis optimizes structural strength, ensuring stable molding quality and long-term machine reliability.
High-Rigidity Injection Structure
The TEII series electric injection molding machines features a modular design, making it adaptable to various production conditions. The high-rigidity structure ensures stable product quality, while linear guide rail support enables precise low-speed control below 1 mm/s.
High Rigidity & Stable Injection
The integrated injection unit adopts a high-rigidity structure design, reducing deformation during injection movement and improving overall process stability. The optimized structure provides precise injection control and consistent molding quality for continuous production.
Precise Low-Speed Injection Control
Linear guide rail support reduces mechanical resistance and improves movement sensitivity. With low damping characteristics and accurate pressure feedback, the injection unit achieves stable low-speed control below 1 mm/s, ensuring precision molding performance.
Hydraulic vs Electric Injection Molding Machine
Technical Specifications
Frequently Asked Questions About
The All Electric Injection Molding Machine
Please contact us if you would like to learn more about the operation, selection, and performance of all electric injection molding machines; we would be happy to answer your questions.
Injection repeatability accuracy, ensuring consistent dimensions and stable quality during continuous mass production.
Q1 What level of injection precision does the TEII series achieve? How is product consistency ensured? +
Q2 In which precision manufacturing sectors is the TEII series primarily used? +
Q3 Is the TEII series suitable for molding thick-walled automotive light lenses? +
Q4 How does the TEII series maintain stable performance during high-speed injection molding? +
Core components
Case & Application
Applicable industries: Medical, automotive parts, consumer goods, home appliances, 3C products, toys, etc., suitable for high-precision, high-quality molding requirements.
-
Appliance Parts -

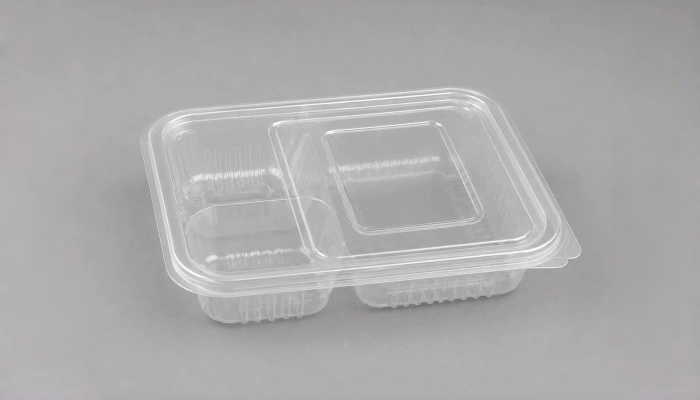

Disposable Tableware -
Medical parts -

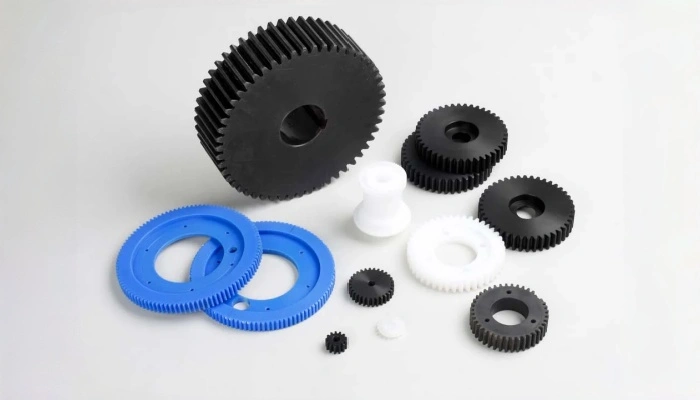

Micro injection Gear -

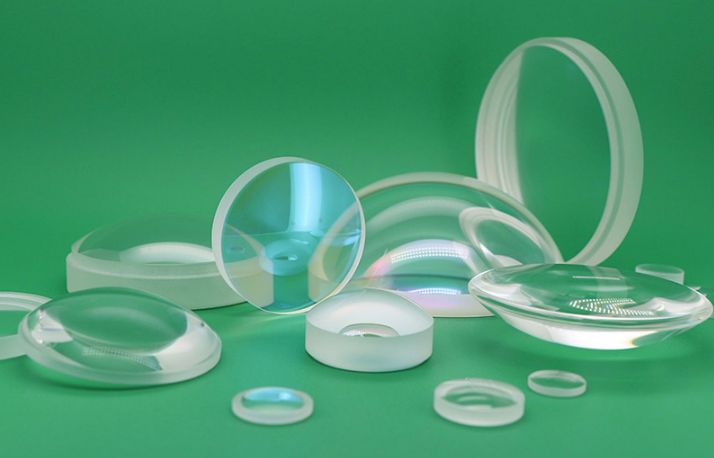

Plastic Optical Lens -

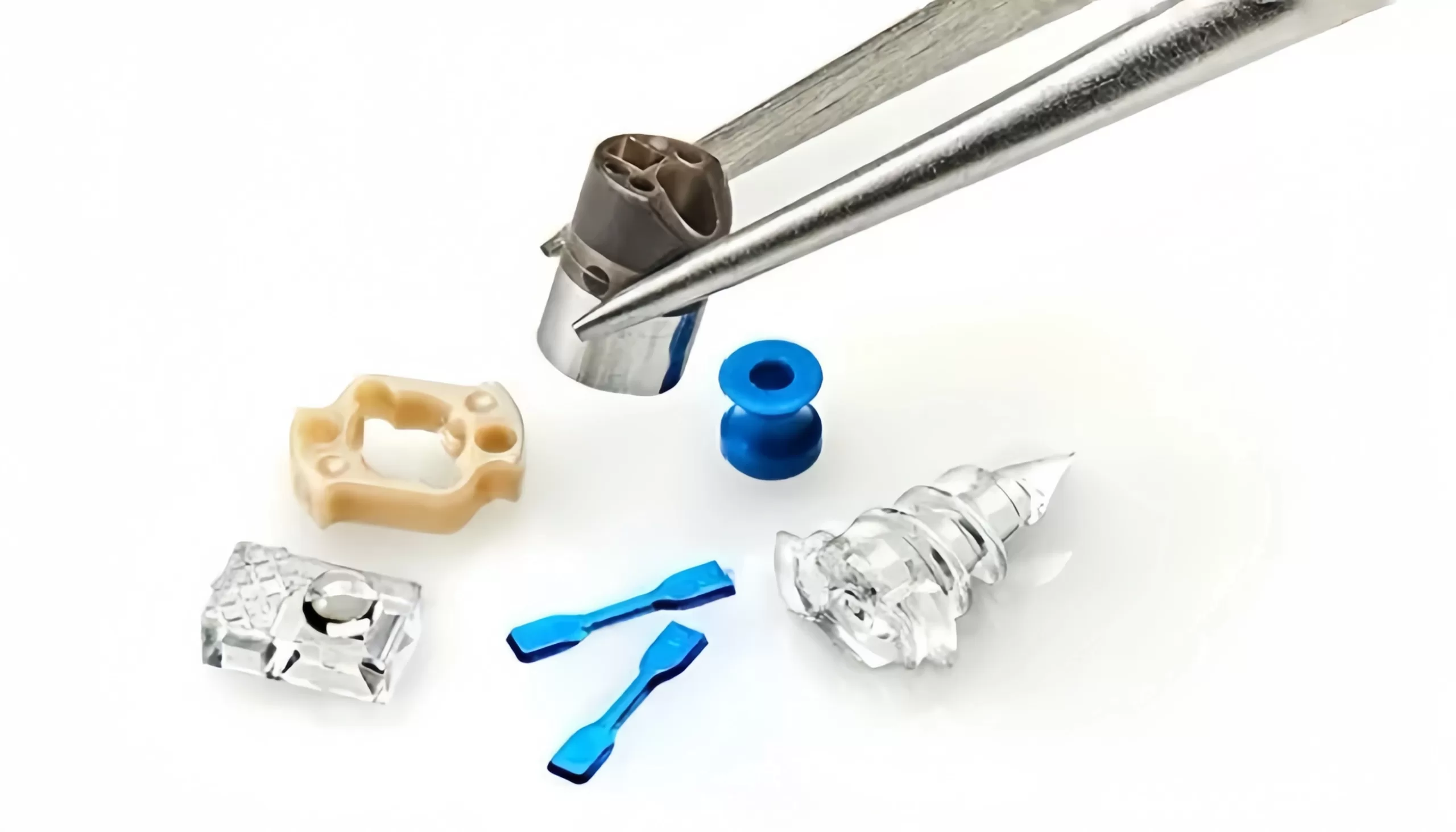

Micro injection Molded Product
