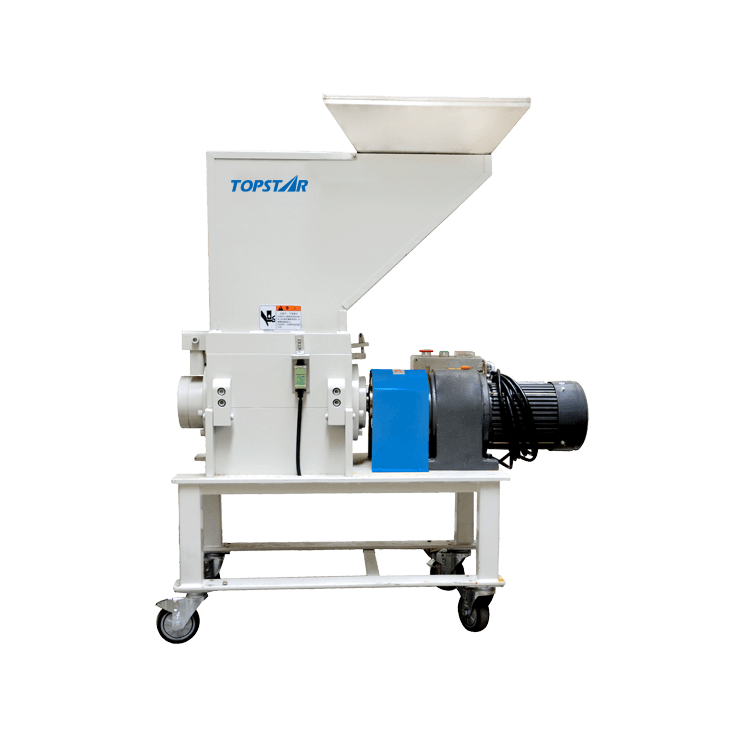

Low Speed Sound-Proof Granulator – TGL
The TGL series Low Speed Sound-Proof Granulators are designed for the in-line grinding and recycling of defective parts and rejects made from various hard, brittle plastics. It is particularly well-suited for processing hard sprue and runner scrap from materials such as PC, Nylon, and ABS. This screenless granulator features durable cutters made from high-quality SKD-11 steel (optional) and supports "30-second immediate recycling," minimizing material degradation from moisture absorption or oxidation. Operating at a low speed of 20–28 rpm, the unit is energy-efficient and eliminates noise pollution, making it ideal for recycling hard scrap materials like PC, PBT, ABS, and Nylon.
1. Screenless Design — Simplifies structure and improves recycling efficiency.
2. 20–28 RPM Low-Speed Operation — Reduces noise and energy consumption.
3. 30-Second Immediate Recycling — Minimizes moisture and oxidation damage to sprue materials.
4. Lubrication-Free Gear Drive — Saves maintenance and installation space.
Features
- 1. Non-mesh screen design, well-proportioned granules and less powder pollution.
- 2. Optimized structure of machine with small footprint which is especially suitable for thelimited space of workshop to use.
- 3. Both rotor blades and fixed blades are made of SKD-11(option) with long service life.
- 4. 30 sec instant recycling system to keep regrind material free from color changing by oxidation or damping.
- 5. Low speed at 20~28 rpm, power saving, less noise.
- 6. This unit is driven by shaft gear-motor, no need oil.
- 7. This series is suitable for granulating rigid&bristle resins-PC, PBT, ABS, Nylon, etc.
TGL Series Low Speed
Sound-Proof Granulator
Designed for efficient recycling of plastic waste near injection molding machines, the TGL Series combines intelligent control, convenient operation and low-speed granulation technology to achieve stable recycling performance with reduced noise.
Smart Operation
LCD controller provides intuitive operation and real-time machine status display, allowing quick startup and troubleshooting within minutes.
Convenient Recycling
Installed beside injection molding machines, the compact design enables immediate recycling of rejected parts, reducing material waste and labor costs.
Easy Maintenance
Manually openable hopper and cutting chamber design simplifies cleaning and material replacement, improving production changeover efficiency.
Reliable Granulation Performance
Non-Mesh Screen Design
Produces uniform granules while reducing powder generation and improving recycled material quality.
Compact Structure
Small footprint design allows flexible installation in space-limited production environments.
Long-life Cutting System
Rotor and fixed blades adopt SKD-11 material (option) for extended service life.
30 Seconds Recycling
Instant recycling system minimizes oxidation and moisture absorption during material handling.
Low Noise & Energy Saving
Low-speed operation at 20~28 rpm reduces noise, power consumption and mechanical stress.
Wide Material Compatibility
Suitable for rigid and brittle resins including PC, PBT, ABS and Nylon.
TGL Series Low Speed Sound-Proof Granulator
| MODEL | TGL-2526TS-1.5HP-A3 | TGL-2526TB-1.5HP-A3 | TGL-3232TS-2HP-A3 | TGL-3232TB-2HP-A3 | TGL-3243TS-3HP-A3 | TGL-3243TB-3HP-A3 |
|---|---|---|---|---|---|---|
| Crushing Chamber (mm) | 253×225 | 253×225 | 305×305 | 305×305 | 310×415 | 310×415 |
| Crushing Ability (kg/h) (PP material standard) |
10~15 | 10~15 | 20~30 | 20~30 | 30~40 | 30~40 |
| Revolutions (r/min) | 20~28 | 20~28 | 20~28 | 20~28 | 20~28 | 20~28 |
| Cutter Type | Rotary+S Knife | Rotary+S Knife | Rotary+S Knife | |||
| Rotating Blades | Two S+Three Rotary | Two S+Three Rotary | Two S+Three Rotary | |||
| Fixed Blades | 6 | 6 | 6 | 6 | 8 | 8 |
| Motor Power (HP) | 1.5(1.1kW) | 1.5(1.1kW) | 2(1.5kW) | 2(1.5kW) | 3(2.2kW) | 3(2.2kW) |
| Total Power (kW) | 1.2 | 1.2 | 1.6 | 1.6 | 2.3 | 2.3 |
| Wires Specifications (mm²) | 5×1.5 | |||||
| Wires Length (m) | 5 | |||||
| Noise Level (dB) | 85 | |||||
| Crushing Recycle Type | Suction | Box | Suction | Box | Suction | Box |
| Dimensions L×H×W(m) | 0.91×1.29×0.43 | 0.91×1.29×0.43 | 1.05×1.33×0.48 | 1.05×1.33×0.48 | 1.16×1.35×0.48 | 1.16×1.35×0.48 |
| Weight(kg) | 205 | 205 | 280 | 280 | 323 | 323 |

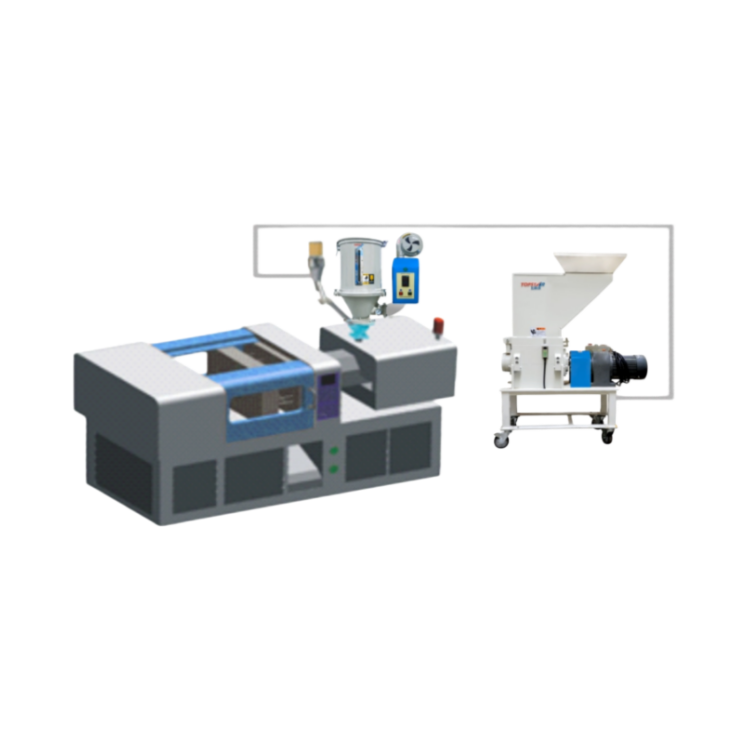

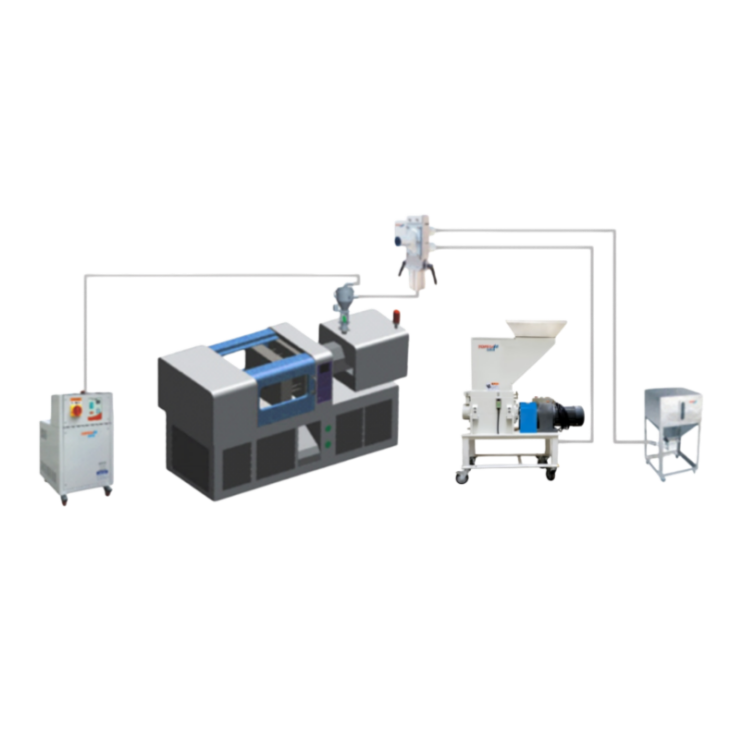

Recovery System Flow Chart
