MEWE Series Injection Robots
MEWE series injection robot(3/5 axis robot) feature outstanding rigidity, stable heavy-load performance, and a repeatability of up to ±0.05 mm. Their instantaneous speed can reach 2.8 m/s. The MEWE series features intelligent functions such as mold protection, automatic mold opening compensation, and adaptive control, which prevent mold damage from collisions and enhance production reliability. Connectivity with MES systems, flexible I/O expansion, and customizable programming capabilities enable seamless integration into complex automated production lines and custom manufacturing applications. These robots are ideal for handling heavy molds and fixtures, or for production lines requiring long-term operational stability.
Product Features
Highly Efficient
- Reinforced main arm & Base: Featuring a reinforced, thickened structural design, overall rigidity has been increased by 20%.
- High-load precision: Even under heavy-load conditions, it maintains a repeatability of ±0.05 mm.
- Fast & Precise Motion: Instantaneous linear speeds reach up to 2.8 m/s while maintaining a repeatability of ±0.05 mm.
Heavy-duty
- 750W High-power servo motor: Load capacity has been increased by 20%.
- Optimized low-inertia cross-section design: Vibration amplitude during operation has been reduced by 20%, ensuring long-term continuous operation.
More Intelligent
- Protects the mold by real-time dynamic adjustment of joint torques, enabling compliant response to external forces and preventing collision-induced mold damage.
- Reduces machine setup time by supporting signals from the injection molding machine. It detects the actual mold opening position, automatically compensates the robot stroke, and minimizes alarms and manual re-tuning caused by mold opening inaccuracies.
Optional series
- 1.MEWE-80 V(suitable for 100-300IMM tons)
-
2.MEWE-80s V(suitable for 100-300IMM tons)
-

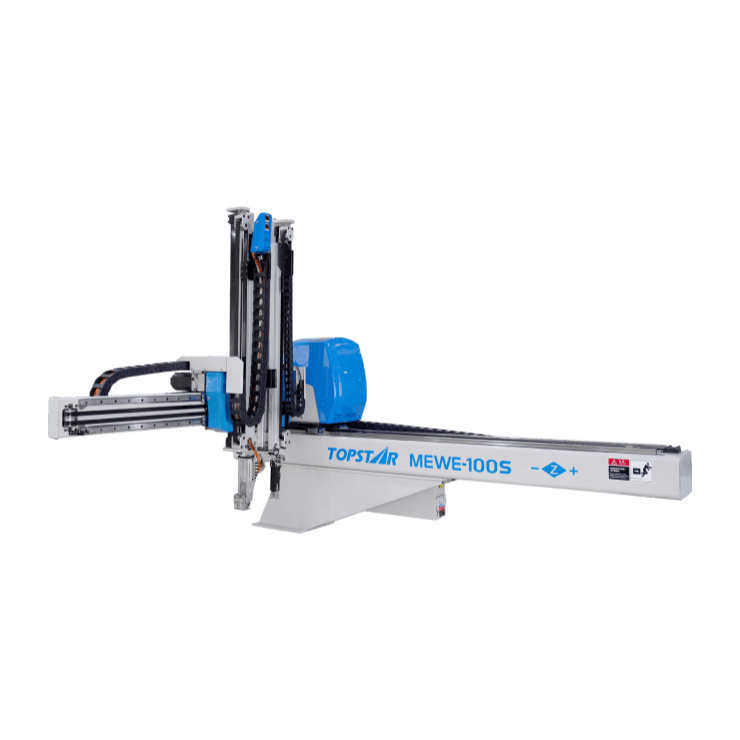

3.MEWE-100 V(suitable for 300-550IMM tons)
-
4.MEWE-100s V(suitable for 300-550IMM tons)
-

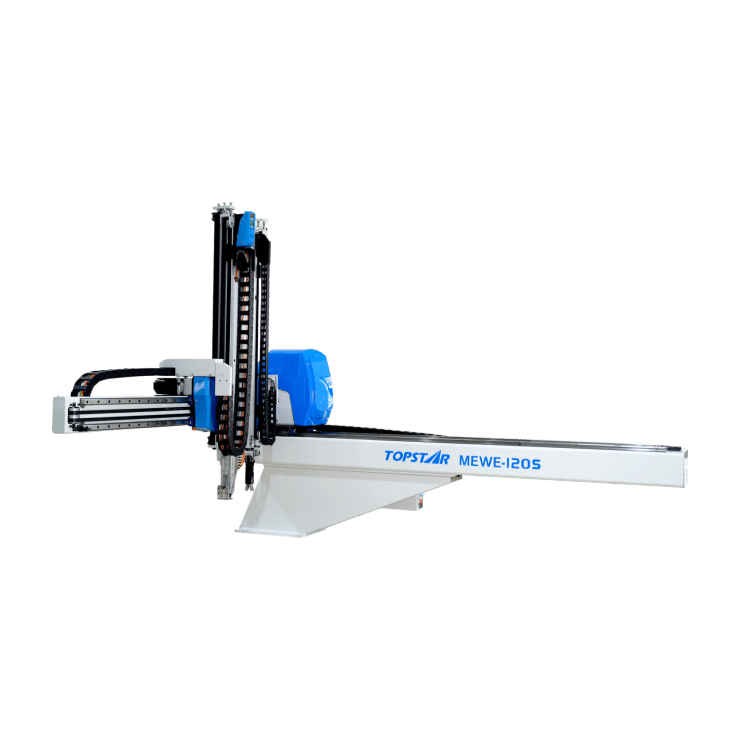

5.MEWE-120 V (suitable for 350-800IMM tons)
-
6.MEWE-120s V (suitable for 350-800IMM tons)
Adequate supply of goods, available for delivery within 35 days.
Description
MEWE Series Injection Robot
The versatile configuration of the MEWE series of injection molding robots provides connectivity and flexible customization capabilities, enabling it to adapt to a wide range of automated production needs and application scenarios.
Standard MES Interface:
The MEWE series of injection molding robots is equipped with a standard MES interface, enabling real-time remote monitoring of two key areas:
1. Production data
2. Robot arm operational status.
This enables efficient production management and timely resolution of various issues without the need for on-site supervision.
High-Capacity I/O Board:
Thanks to its high-capacity I/O board, the MEWE series can simultaneously support up to 8 suction channels and 8 gripping channels. This allows the injection molding robot to connect multiple suction cups, grippers, or other auxiliary devices at once, enabling it to complete complex gripping, handling, or loading tasks in a single operation.
High-Precision Positioning Unit:
The high-precision positioning unit of the MEWE series injection molding robots is designed to address two key application scenarios:
1. High-load operating conditions
2. Non-standard insertion/embedding operations.
Under high-load conditions, it maintains stable and precise positioning performance, effectively preventing positional deviations caused by heavy loads;
when performing non-standard insertion or embedding tasks, it achieves precise positioning, ensuring operational accuracy and consistency.
Specialized Programming Commands
To meet non-standard and customized automation needs, the MEWE series injection molding robots feature a suite of dedicated programming commands. These commands are specifically tailored to address complex and non-standard production scenarios, including:
1. Planning customized motion paths
2. Defining specialized gripping logic
3. Adapting to unique production processes specific to different customers.
Thanks to its high level of customization, the MEWE series can flexibly adapt to a wide range of specialized production requirements.

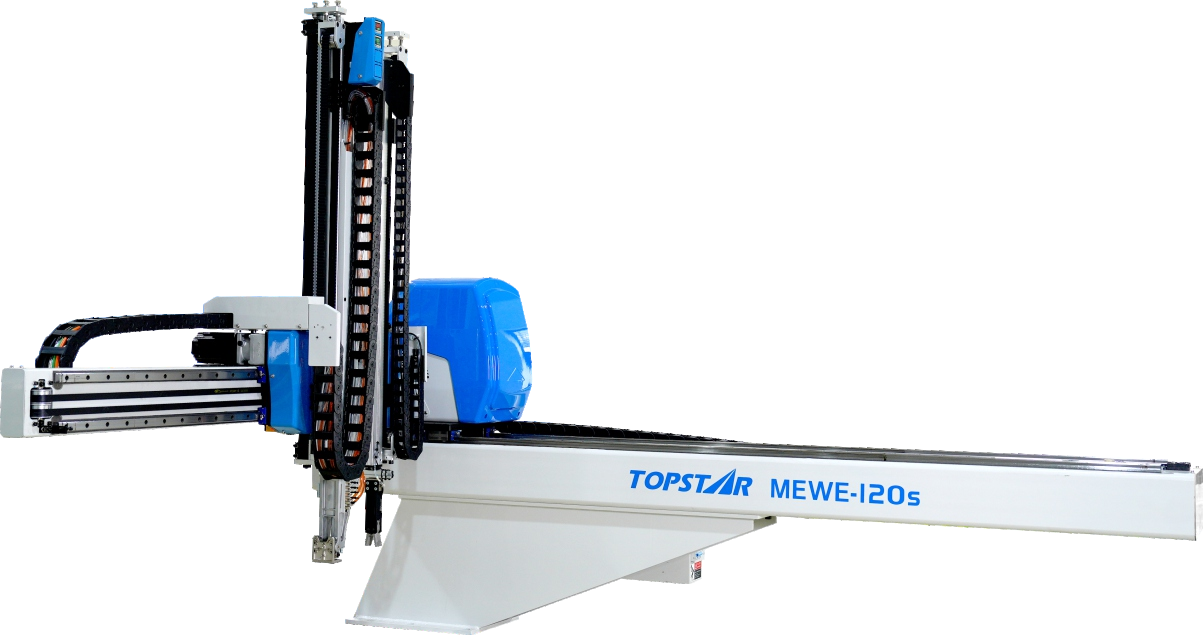

Model Display
