Powerful Granulator – TGP
The TGP series powerful granulator is specifically designed for the size reduction and recycling of various types of hard plastics. It features an optimized rotor design available in three configurations: flat blade, claw blade, and straight blade. The claw-style blade design effectively distributes cutting forces and enhances the shearing power of individual blades; it is particularly well-suited for processing thick-walled products, large plastic scrap, and hard material lumps, offering increased cutting efficiency while effectively minimizing blade wear.
1. Powerful Crushing Performance — Ideal for hard plastics, thick parts, and large plastic scraps.
2. 3 Blade Options — Flat, claw, and straight blades for different crushing requirements.
3. High-Shear Claw Blade — Distributes cutting force for stronger crushing and reduced blade wear.
4. Durable Alloy Blades — Provides excellent wear resistance and long service life.
5. Flexible Screen Sizes — Standard 8 mm / 10 mm mesh with custom sizes available.
6. Contamination-Free Option — Stainless steel hopper and screen available for transparent and white materials.
Features
- 1. All models are suitable for granulating big & different material & different shapes of defect plastic parts, can be collected to granulate together for recycling use.
- 2. The motor is equipped with over load protector & interlock power protection safety device & granulator is equipped with cleaning cutter protection safety device for ensuring operators’ safety.
- 3. Blades are made of excellent alloy material with long service life.
- 4. The standard screen mesh size for 10HP & below is 8mm; for 15HP & aboveis 10mm. Other specs can be customized according to customers’ requirements.
- 5. Unique design realizes that the power is smallest but the efficiency is highest. It is also equipped with double- silencer to achieve low noise.
- 6. Feeding hopper and screener need to be made of stainless steel in order toavoid painting peeling off to make material contamination for effecting color.
- 7. Easy disassembly design – feeding hopper, cutters and screener easily dismantle for cleaning.
TGP Series High Performance Powerful Granulators
The TGP series powerful granulator is designed for large plastic parts, gates, and runners, delivering powerful crushing performance, high recycling efficiency, and easy maintenance. With an optimized blade design, durable alloy blades, and reduced wear, it delivers high-shear crushing of hard plastics and large waste pieces.
TGP-S Series Powerful Flake Blade Granulator
Designed for large thin-wall products and centralized processing of sprues and runners.

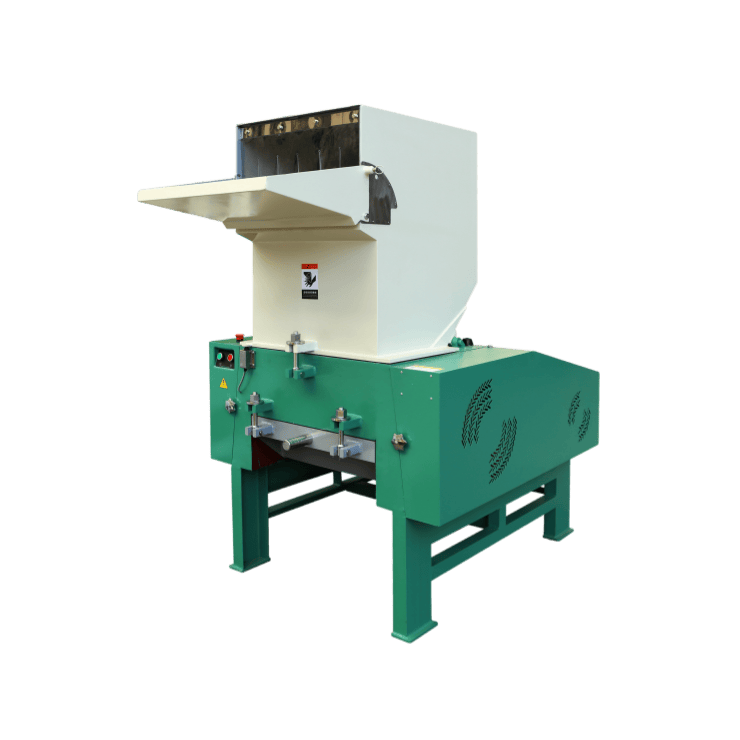

TGP-C Series Powerful Claw Blade Granulator
Designed for rigid and thick plastic products requiring strong shearing force and efficient pulverization.
Key Advantages of TGP Series
Supports various defective plastic parts recycling.
Overload and interlock protection design.
High quality alloy blade materials.
Multiple granule sizes available.
Double silencer design reduces noise.
Quick disassembly for cleaning.
TGP-S Series Specification
| MODEL | TGP-2320S-5HP | TGP-3120S-7.5HP | TGP-4123S-10HP | TGP-5129S-15HP | TGP-6132S-20HP | TGP-8147S-30HP/40HP |
|---|---|---|---|---|---|---|
| Motor Capacity(HP/KW) | 5(4kW) | 7.5(5.5kW) | 10(7.5kW) | 15(11kW) | 20(15kW) | 30(22kW) 40(30kW) |
| Blade size | 230×200 | 310×200 | 410×235 | 515×290 | 610×320 | 815×470 |
| Mix Crushing Ability(kg/h) | 100 | 150 | 200 | 300 | 350 | 450 |
| Dimensions(L×W×H)(m) | 0.97×0.61×1.2 | 1.0×0.72×1.29 | 1.03×0.84×1.39 | 1.23×1.01×1.63 | 1.32×1.11×1.83 | 1.73×1.49×2.3 |
| Weight(kg) | 290 | 435 | 450 | 820 | 970 | 2000 |
TGP-C Series Specification
| MODEL | TGP-3626C-10HP | TGP-4228C-15HP | TGP-4833C-20HP | TGP-6635C-30HP |
|---|---|---|---|---|
| Motor Capacity(HP/KW) | 10(7.5kW) | 15(11kW) | 20(15kW) | 30(22kW) |
| Blade size | 360×260 | 420×280 | 480×330 | 660×350 |
| Mix Crushing Ability(kg/h) | 200 | 300 | 350 | 450 |
| Dimensions(L×W×H)(m) | 1.06×0.83×1.44 | 1.27×0.9×1.6 | 1.37×0.98×1.79 | 1.57×1.32×2.00 |
| Weight(kg) | 500 | 795 | 1040 | 1700 |
