Powerful Sound-Proof Granulator – TGQ
The TGQ series powerful sound-proof granulator features a double-layered hopper design to minimize noise while delivering exceptional safety, environmental performance, energy efficiency, and durability. It boasts a well-engineered structure and user-friendly operation, with a hinged design that facilitates easy maintenance and servicing. The fully enclosed silent design ensures noise levels remain below 85 dB at a distance of one meter, fostering a favorable working environment.
1. Efficient Internal Cooling — Dissipates motor heat and extends equipment service life.
2. Flexible Recycling — Supports both centralized and machine-side crushing.
3. Easy Maintenance — Hinged structure provides quick access for cleaning and servicing.
4. Multiple Safety Protections — Includes motor overload protection, emergency stop, and phase sequence control.
5. Stainless Steel Storage Bin — Easy to clean, with an optional suction-port design.
Features
- 1. Fully hermetic & silent design, the noise level is below 85db around 1 meter distance away from machines, also avoiding dust contamination simultaneously.
- 2. The material storage tank is made of stainless steel for easy cleaning,stainless steel suction spout is also available for option.
- 3. Motor overload protection device, emergency safety switch device.
- 4. To be equipped with electrical phase controller, avoid any damage from motor reverse.
- 5. To install power isolator, easy maintenance & safety operation.
- 6. This series can be used beside the press and collect all rejected parts to granulate together.
- 7. Unique design with inside heat dispersion system, expels heat generated from the electrical cabinet to prolong parts’ service life even under the fully hermetic machine.
- 8. Movable stainless feeding hopper and handle switch with optimal designare operation conveniently.
TGQ Series Powerful
Sound-Proof Granulator
The Powerful Sound-Proof Granulator delivers efficient plastic crushing with <85 dB low-noise operation, advanced motor cooling, and comprehensive safety protection.
Fully Enclosed Sound-Proof Design
Double-wall sound insulation structure keeps noise level below 85dB while preventing dust leakage.
Stainless Steel Clean Recycling System
Stainless steel material storage tank and internal structure prevent contamination and simplify cleaning.
Dual Safety Interlock Protection
The machine automatically stops when hopper or bin door opens, ensuring operator safety.
TGQ Series Performance Features
Silent & Clean Design
Fully hermetic structure reduces noise and prevents dust contamination.
Stainless Steel Construction
Easy cleaning structure prevents contamination of regrind materials.
Safety Protection
Motor overload protection, emergency switch and phase controller ensure safe operation.
Easy Maintenance
Movable feeding hopper and power isolator simplify maintenance procedures.
Heat Dispersion System
Internal cooling design extends electrical component service life.
Workshop Integration
Suitable for beside-the-press recycling applications.
Large Capacity Crushing
Designed for centralized processing of rejected parts.
Reliable Performance
Stable operation for continuous injection molding.
TGQ Series Specification Sheet
| MODEL | TGQ-2321S-5HP | TGQ-4127S-10HP | TGQ-5232S-15HP | TGQ-6234S-20HP | TGQ-8148S-30HP |
|---|---|---|---|---|---|
| Crushing Chamber (mm) | 230×200 | 410×270 | 520×320 | 620×340 | 815×480 |
| Mix Crushing Ability KG/HR | 100 | 200 | 300 | 350 | 500 |
| Cutters | 2 | 2 | 2 | 4 | 4 |
| Rotating Blades | 6 | 12 | 15 | 18 | 24 |
| Motor Power (HP) | 5(4kW) | 10(7.5kW) | 15(11kW) | 20(15kW) | 30(22kW) |
| Dimensions L×WxH(m) | 1×0.72×1.49 | 1.18×0.93×1.7 | 1.3×1.06×1.96 | 1.36×1.16×2.13 | 1.85×1.54×2.68 |
| Weight(Kg) | 500 | 800 | 1100 | 1350 | 2250 |

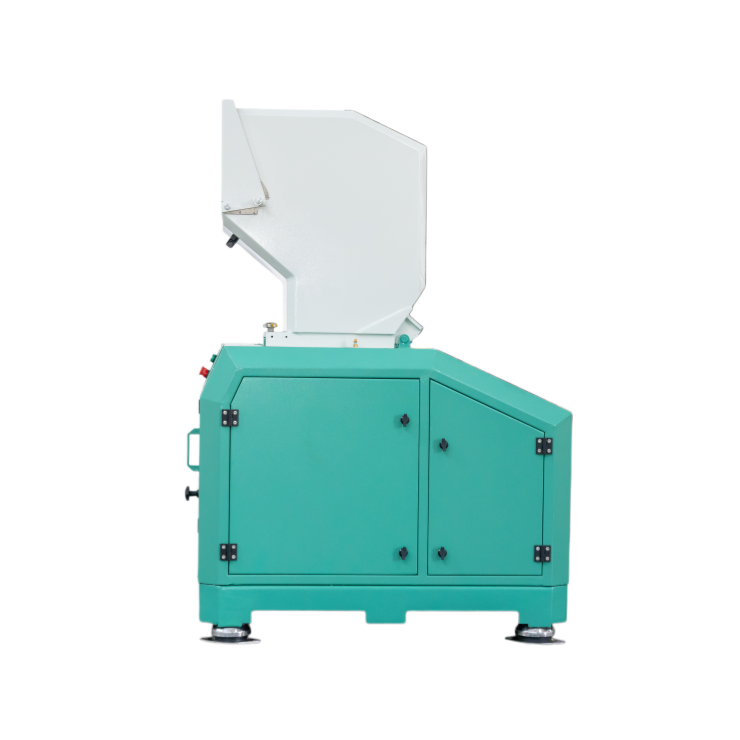

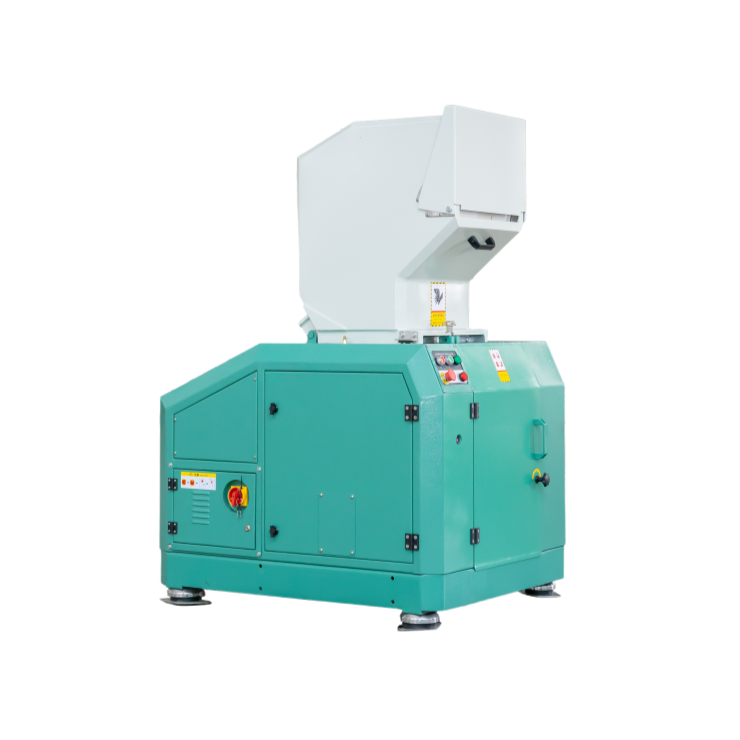

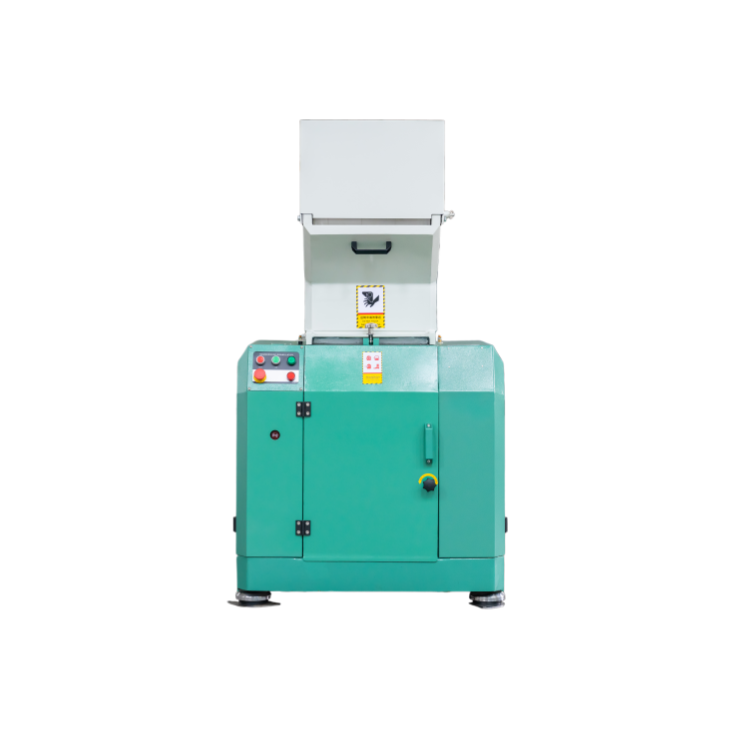

Model Display
