TCDE Series 3 in 1 Compact Dehumidifying Dryers (Energy-Saving Type)
The TCDE Series 3-in-1 Compact Dehumidifying Dryer integrates dehumidification, drying, and multi-stage conveying into one compact, energy-efficient system. With a dew point as low as -40°C, it provides stable dry air to improve the quality of hygroscopic and optical-grade plastics. The insulated drying hopper and fully enclosed conveying system reduce heat loss and prevent moisture reabsorption, ensuring efficient and consistent drying performance.
1. 3-in-1 Integrated Design
2. -40°C Low Dew Point
3. Energy-Efficient Drying System
4. Moisture-Proof Conveying
5. Smart Control & Protection
6. High-Precision Plastic Processing
Features
- 1. To integrate the functions of dehumidifying, drying, and two-stage conveying into a single unit. The three-stage conveying function is optional.
- 2. To improve the quality of finished products greatly, thanks to a stable supply of dehumidified air at -40 dew-point.
- 3. Low power consumption, high efficiency.
- 4. Double-wall insulated hopper dryers feature a down-blowing pipe design to avoid heat dispersion, improving drying efficiency.
- 5. The feeding system is made of stainless steel to eliminate material contamination.
- 6. Closed-loop circulation for dehumidified air & feeding system to avoid the possibility of moisture regain for absorbing outside air during material conveying.
- 7. To adopt electromagnetic contactless relay control heating. (option)
- 8. Intelligent microprocessor control for faulty alarm & pre-heating setting.
- 9. Optical-class powder-removing models are suitable for a clean workshop.
- 10. Multiple safety protection devices.
- 11. Using imported superb parts which enhance function and extend service life for saving maintenance cost.
- 12. Powder-coated frame of the machine with an exquisite appearance.
- 13. Compact construction; small footprint to save space; move conveniently for any machine use.
- 14. Optimum design for easy maintenance.
3 in 1 Compact Dehumidifying Dryer
The TCDE series 3 in 1 compact dehumidifying dryer energy savings of up to 60%, a stable dew point below -40°C, and advanced PID temperature control, ensuring uniform drying and precise dehumidification. Furthermore, it is equipped with a smart touchscreen, RS485/MODBUS communication interface, and multiple safety protection systems, providing reliable operation and higher efficiency for demanding plastics processing applications. Additionally, an optical-grade energy-saving 3 in 1 dehumidifying dryer is designed for the manufacture of optical-grade products, catering to diverse customer needs.
Advanced Drying Performance & Intelligent Control
Energy Conservation
Compared with conventional dryers and honeycomb three-in-one units, comprehensive energy savings can reach up to 60%.
Stable Dehumidifying
Provides continuous dehumidified air with dew point below -40℃ for long-term stable material drying.
Smart Control System
Touchscreen monitoring, scheduled power control, RS485 MODBUS communication and MES integration.
Precision Drying
Third-generation PID algorithm and solid-state relay control ensure accurate temperature regulation.
Intelligent Protection & Communication
Touchscreen Monitoring
Equipped with an intuitive touchscreen for real-time monitoring of temperature, operating status, and alarm conditions; supports scheduling power-on and power-off times up to one week in advance.
Safety Protection
All fans employ current transformers for current overload monitoring and protection, as well as phase sequence and reverse rotation protection.
Remote Communication
Standard RS485 communication interface MODBUS protocol, integrates with MES systems to enable remote monitoring and data acquisition.
TCDE Series Specification Sheet
| Model | TCDE-25 | TCDE-50 | TCDE-75 | TCDE-100 | TCDE-150 | TCDE-200 | TCDE-300 | TCDE-400 |
|---|---|---|---|---|---|---|---|---|
| Dew Point (℃) | -40 | |||||||
| Drying Temperature (℃) | 70~160 | 70~160 | 70~160 | 70~160 | 70~160 | 70~160 | 70~160 | 70~160 |
| Control Method | PID Control | |||||||
| Effective Capacity (L) | 42 | 84 | 125 | 167 | 250 | 333 | 500 | 670 |
| Feeding Volume (kg) | 25 | 50 | 75 | 100 | 150 | 200 | 300 | 400 |
| Hopper Material | SUS201 (Buffing) | |||||||
| Drying Heater Capacity (kW) | 3 | 3 | 4 | 4 | 6 | 12 | 12 | 18 |
| Drying Blower Capacity (kW) | 0.25 | 0.4 | 0.55 | 1.1 | 1.5 | 2.2 | 2.2 | 3 |
| Conveying Blower Capacity (kW) | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 |
| Conveying Distance (m) | 11 | 11 | 11 | 11 | 15 | 15 | 22 | 22 |
| Electricity Specification | AC380V 3P/PE 50Hz | |||||||
| Total Electrical Capacity (kW) | 4.55 | 4.95 | 5.85 | 6.4 | 9.2 | 15.9 | 16.6 | 23.4 |
| Compressed Air Requirement (L/min) | 2 | |||||||
| Product Net Weight (kg) | 134 | 138 | 160 | 210 | 240 | 265 | 465 | 475 |
Note: The dew point varies according to ambient air conditions.
Note: The above charging amount is based on a bulk density of 0.6 kg/L, with plastic raw material particles of 3-5 mm diameter as standard.

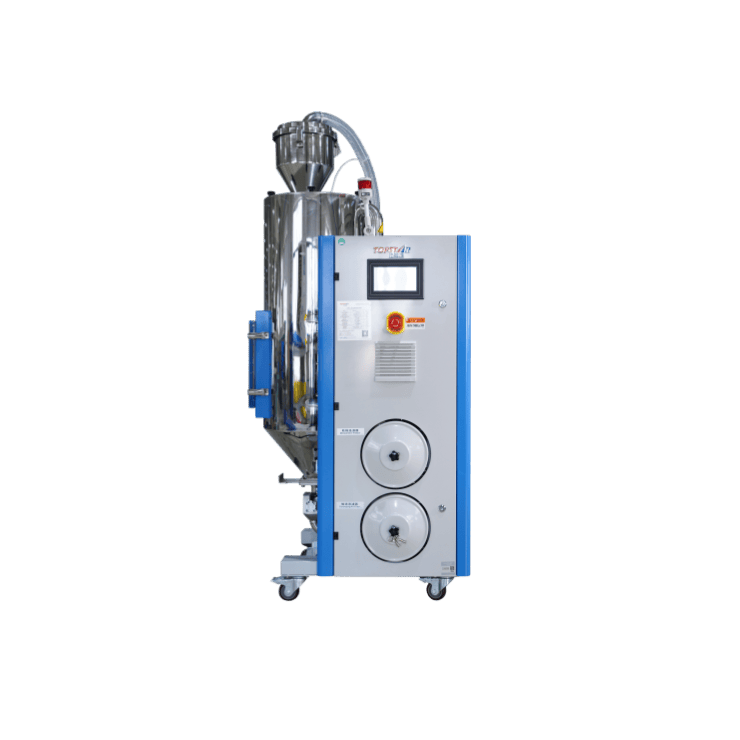

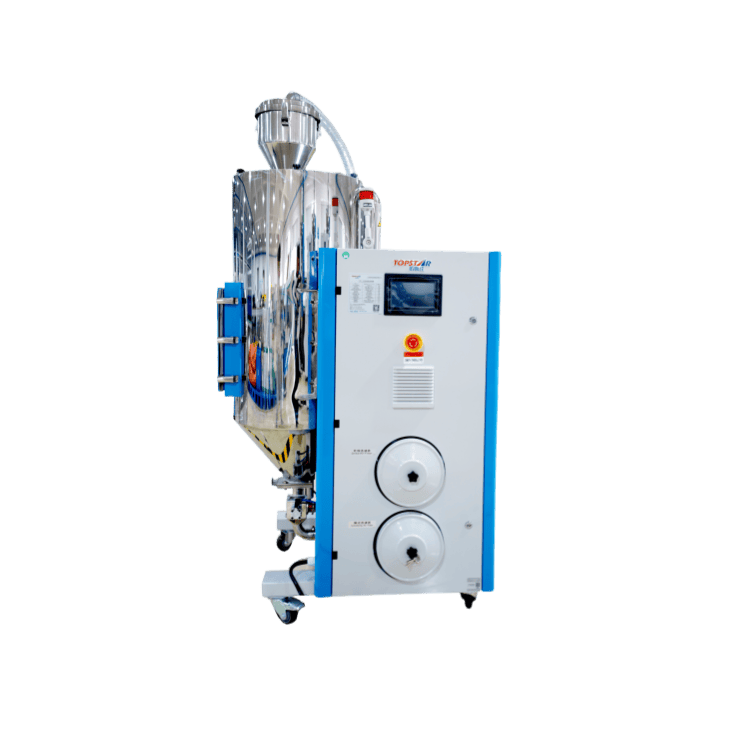

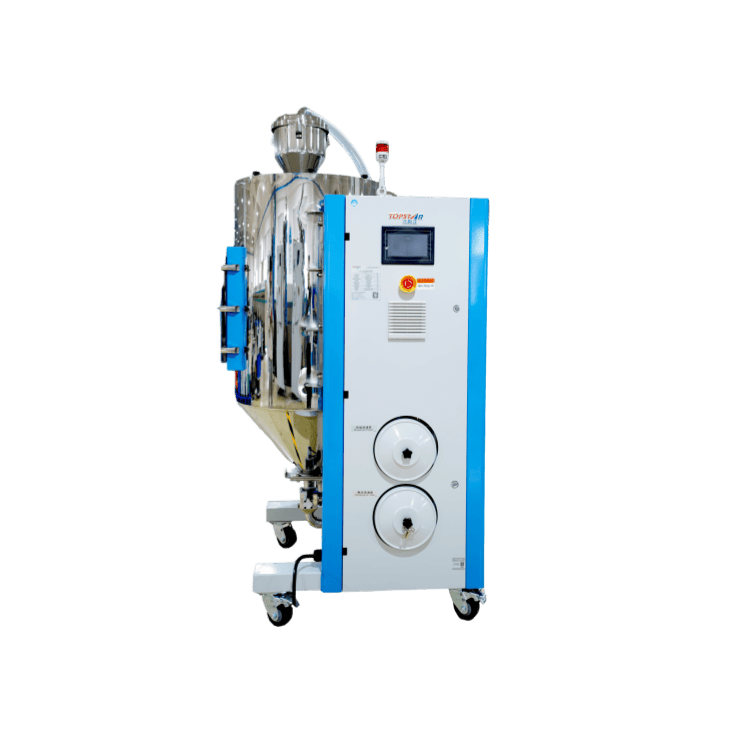

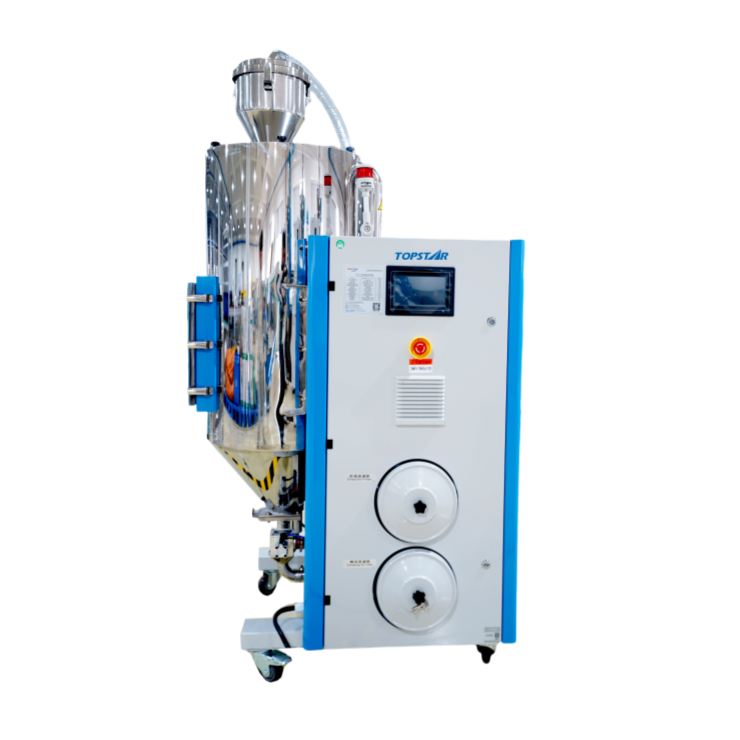

Model Display
