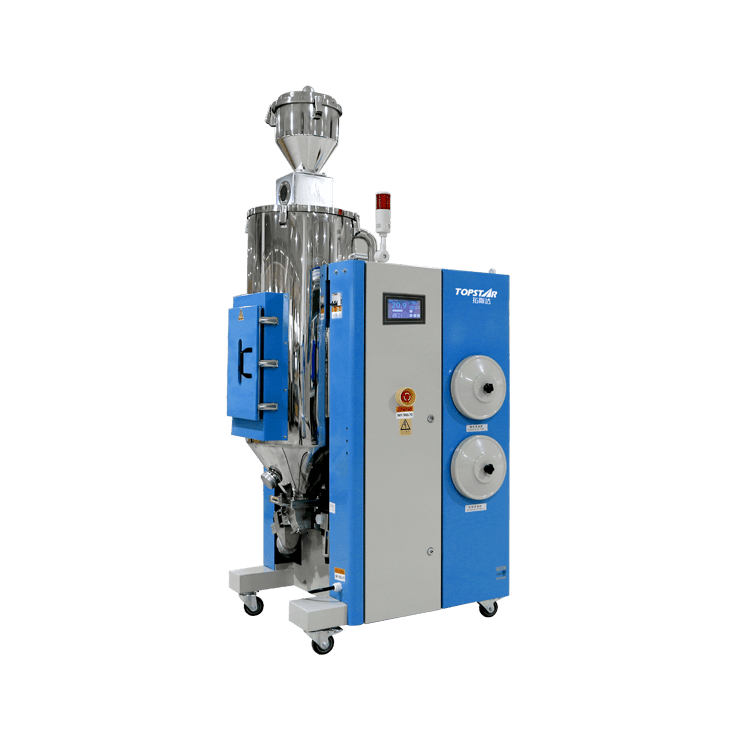

TCDH Series 3 in 1 Compact Dehumidifying Dryer(Honeycomb Rotor)
The TCDH 3 in 1 compact dehumidifying dryer utilizes a high-performance honeycomb rotor to deliver stable, low-dew-point dry air, thereby enhancing the processing quality of precision- and optical-grade plastics. Its dual-cooler dehumidification system ensures consistent drying performance, while the sealed conveying circuit effectively prevents material re-absorption of moisture and contamination.
1. 3-in-1 Integrated System
2. High-Performance Honeycomb Rotor
3. Dual-Cooler Dehumidification Technology
4. Sealed Conveying System
5. Optical-Grade Design
Features
- 1. 3 in 1 compact dehumidifying dryers are equipped with a honeycomb rotor, which can acquire stable low dew-point drying air.
- 2. To integrate the function of dehumidifying, drying and two-stage conveying into single unit. The three-stage conveying function is optional.
- 3. Double-wall insulated hopper dryers feature a down-blowing pipe design to prevent heat dispersion, improving drying efficiency.
- 4. The dehumidifying system employ double coolers for ensuring lower retur air temperature anddew-point value.
- 5. The feeding system is equipped with a shut-off valve to ensure no remaining material in the hopper tube.
- 6. Multiple safety protection devices.
- 7. Optical-class models use mirror-polished treatment on the material contact surface to avoid material contamination and collocate the feeding system with a closed-loop in order to avoid the possibility of moisture regain for absorbing outside air during material conveying.
- 8. To adopt the PlD temperature controller to accurately control regenerative temperature to ensure a stable new point.
- 9. The return air filter is installed inside to ensure no powder & dust contamination to the honeycomb
rotor. - 10. Using imported superb parts which enhance function and extend service life to save maintenance costs.
- 11. Powder-coated machine frame with an exquisite appearance.
TCDH Series 3 in 1 Compact Dehumidifying Dryer
Utilizing advanced honeycomb rotor technology, it achieves high-precision drying, stably controls the dew point to -40°C, and efficiently removes moisture. This ensures efficient and stable drying performance during injection molding.
Deep Dehumidification For Precision Drying
The TCDH 3 in 1 Compact Dehumidifying Dryer features advanced honeycomb rotor technology to deliver deep dehumidification with a stable dew point as low as -40°C. Designed for high-precision plastic drying applications, it ensures uniform airflow, reliable moisture removal and consistent drying performance. The TCDH series is equipped with intelligent control, RS485/MODBUS communication, and PID temperature regulation, providing efficient, safe, and precise drying and dehumidification solutions for plastic processing environments.
Deep Dehumidification
Provides dew point control down to -40°C with minimal fluctuation, ensuring stable drying performance for high precision applications.
Reliable Structure
Three-zone honeycomb rotor structure with thermal insulation design improves regeneration efficiency and dehumidification stability.
Intelligent Control
Touchscreen monitoring, weekly scheduling, RS485 communication and MODBUS protocol support enable smart factory integration.
Precise Drying Control
Third-generation PID algorithm and 0.1s solid-state relay response provide accurate temperature regulation and longer service life.
Smart Monitoring & Safety Protection
Advanced control architecture integrates intelligent monitoring, remote communication and multi-level safety protection to ensure stable dryer operation and long-term reliability.
Intelligent Monitoring
Standard RS485 communication interface and MODBUS protocol enable seamless MES integration, supporting remote monitoring, data acquisition and intelligent factory management.
Enhanced Safety Control
All fans utilize current transformers for current overload monitoring and protection, as well as phase sequence and reverse rotation protection, ensuring greater stability, reliability, and safety.
Smart Energy Management
Schedule start-up and shut-down times a week in advance while maintaining high-efficiency drying performance to support long-term production operations and achieve energy savings.
TCDH Series Specification Sheet
| Specification | TCDH-15 | TCDH-25 | TCDH-50 | TCDH-75 | TCDH-100 | TCDH-150 | TCDH-200 | TDB-300C | TDB-400C | TDB-500C | TDB-600C |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dew point (℃) | -40 | ||||||||||
| Drying temperature (℃) | 70~160 | ||||||||||
| Control method | PID Control | ||||||||||
| Effective capacity (L) | 25 | 42 | 84 | 125 | 167 | 250 | 333 | 500 | 667 | 833 | 1000 |
| Feeding volume (kg) | 15 | 25 | 50 | 75 | 100 | 150 | 200 | 300 | 400 | 500 | 600 |
| Hopper material | SUS201 (Buffing) | ||||||||||
| Drying heater capacity (kW) | 1.8 | 3 | 3 | 4 | 4 | 6 | 12 | 12 | 18 | 21 | 21 |
| Drying blower capacity (kW) | 0.25 | 0.4 | 0.55 | 0.7 | 0.7 | 1.1 | 2.2 | 2.2 | 4 | 5.5 | 7.5 |
| Regen. Heater Capacity | 3 | 3 | 3 | 3 | 3 | 6 | 6 | 6 | 9 | 9 | 10 |
| Regen Motor Capacity | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.4 | 0.4 | 0.55 | 0.7 | 0.7 | 1.5 |
| Conveying blower capacity(kW) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | 2 | 2 | 2.2 | 2.2 | 2.2 |
| Conveying distance (m) | 11 | 11 | 11 | 11 | 11 | 15 | 22 | 22 | 22 | 22 | 22 |
| Piping (conveying) | φ38.1 PVC hose | ||||||||||
| Electricity specification | AC380V 3P/PE 50Hz | ||||||||||
| Main circuit breaker capacity (A) | 32 | 32 | 32 | 32 | 32 | 32 | 63 | 63 | 63 | 100 | 100 |
| Total electrical capacity (kW) | 6.55 | 7.9 | 8.05 | 9.2 | 9.2 | 15.2 | 23 | 22.45 | 33.92 | 38.42 | 42.22 |
| Compressed air requirement (L/min) | 2 | ||||||||||
| Protection function | Three-phase electrical detection / temperature sensor failure / overtemperature / fan overload / electric heating overtemperature / heating failure | ||||||||||
| Product color | SPCC white baking paint (RAL7047), SPCC blue baking paint (RAL5012), SUS | ||||||||||
| Product net weight (kg) | 201 | 208 | 222 | 229 | 248 | 340 | 358 | 671.5 | 811 | 950 | 1100 |
Note: The dew point varies according to ambient air conditions.
Note: The above charging amount is based on a bulk density of 0.6 kg/L, with plastic raw material particles of 3-5 mm diameter as standard.

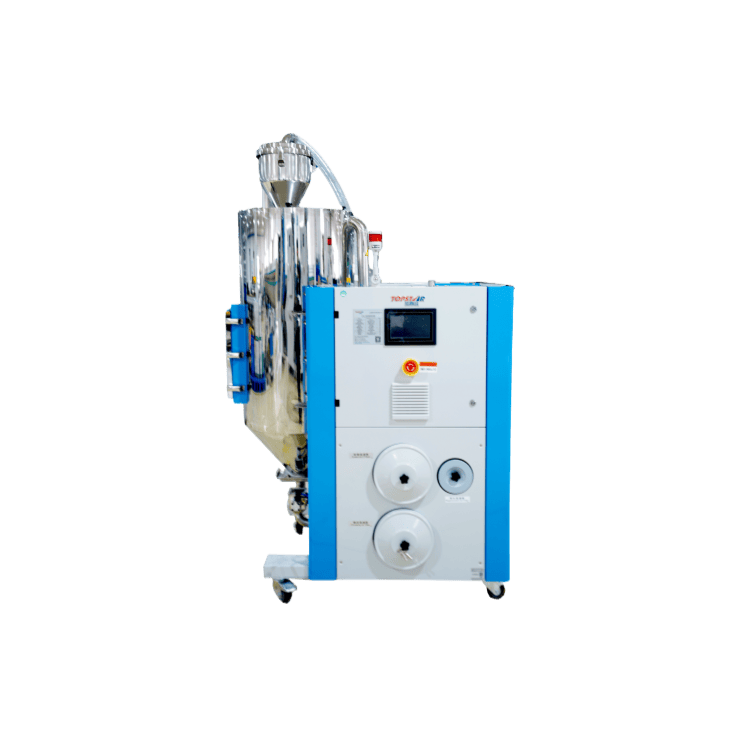

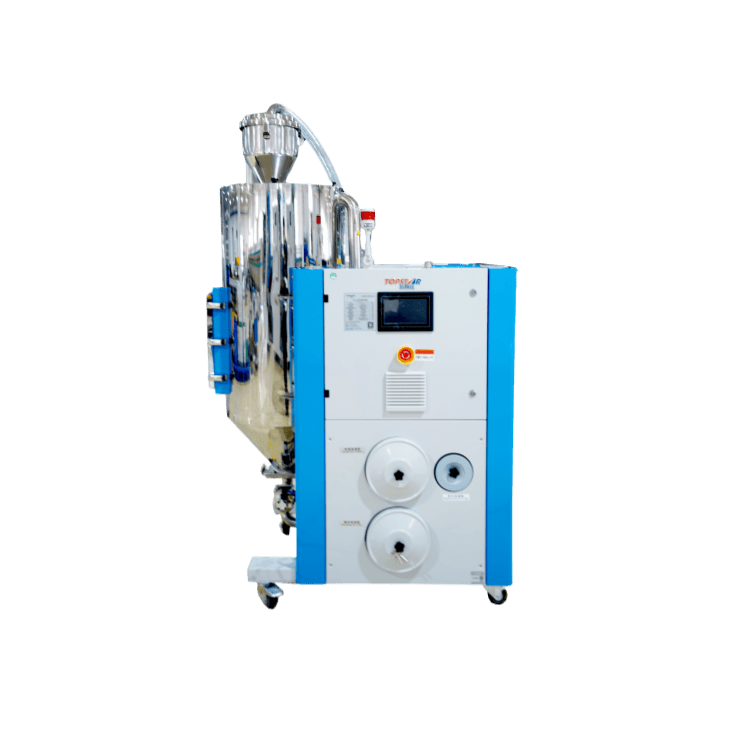

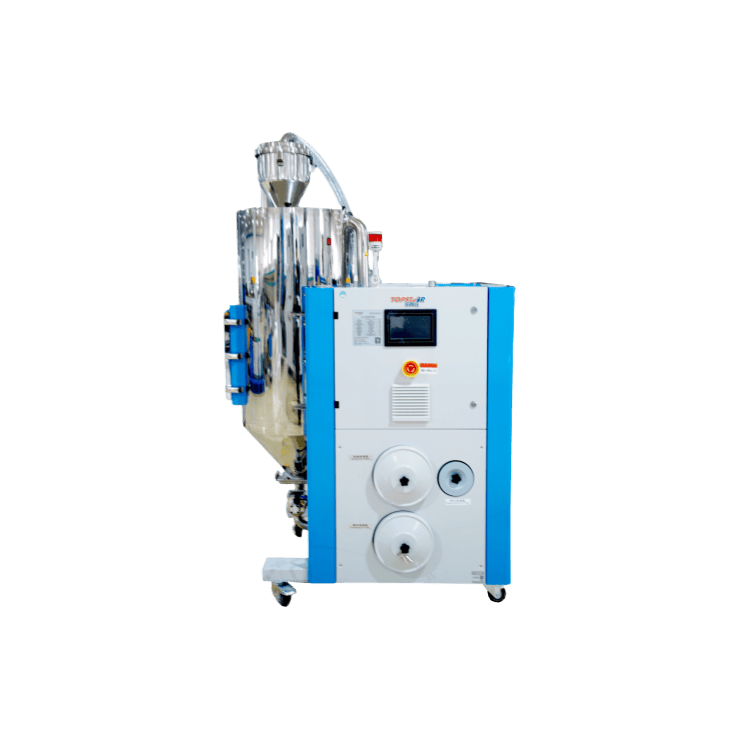

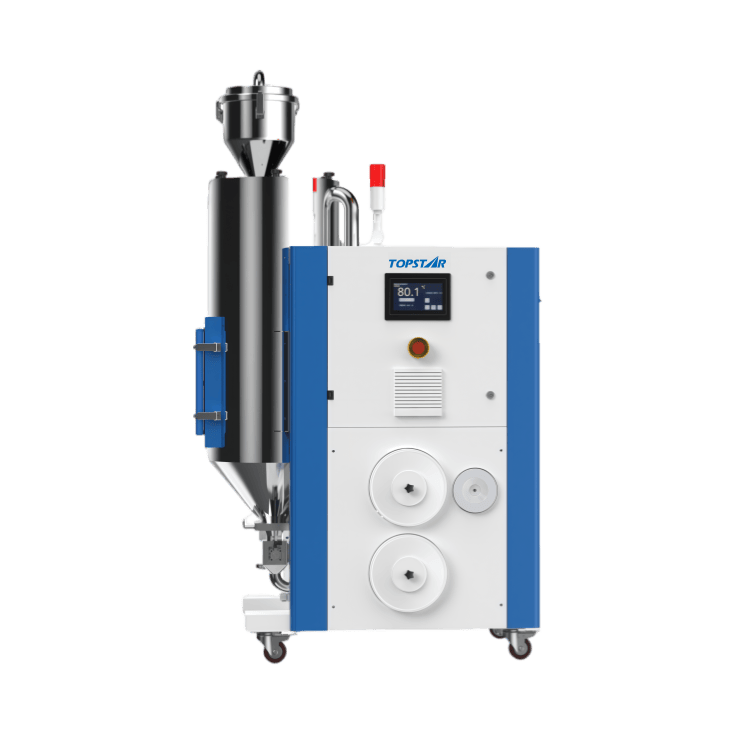

Model Display
