Direct Press Type Injection Molding Machine（130T-2800T）
TH Series Direct Press Type Injection Molding Machines are divided into two series: small and medium-to-large. Both series feature standardized clamping and injection platforms. The design employs a two-plate direct-pressure center-clamping structure to achieve the maximum mold opening stroke. The design employs a two-platen, direct-clamping, center-locking structure to achieve a maximum mold opening stroke. This configuration meets the production requirements for large-sized, deep-cavity products.
1. Multiple Mold Protection
2. High-precision Molding
3. Stable and Durable
4. Compact Design
Characteristics
- Small Direct Press Injection Molding Machine(130T-320T)
- 1. Central direct press clamping structure: Small platen deformation, parallel pressure on the mold, high molding accuracy.
- 2. Double-cylinder for injection, linear guide for moving: Stable injection, sensitive action, high precision.
- 3. Patented sealing ring structure: High sealing reliability and long service life.

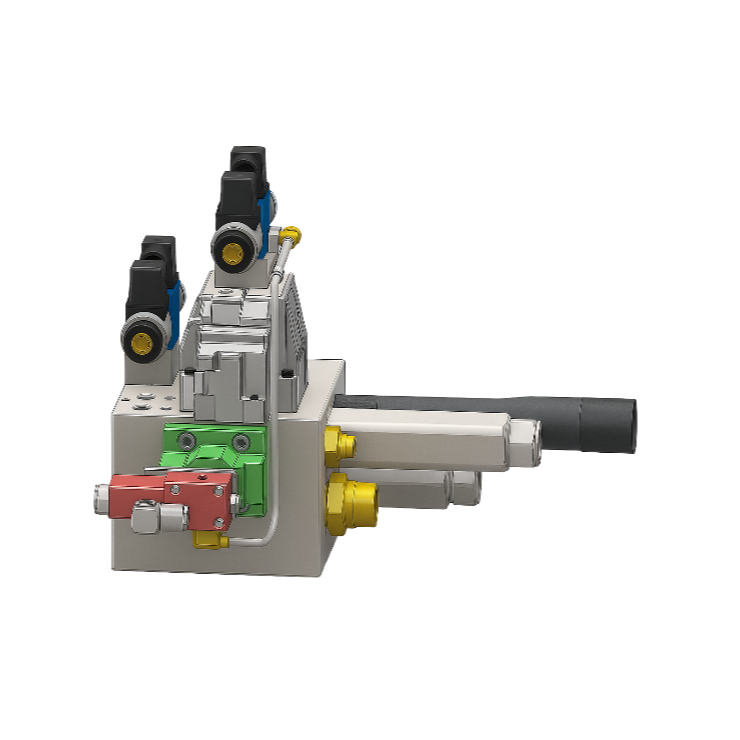

- 4. Full series of servo drives: CNC back pressure, KEBA controller.
- Medium and Large Direct Press Injection Molding Machine(550T-2800T)

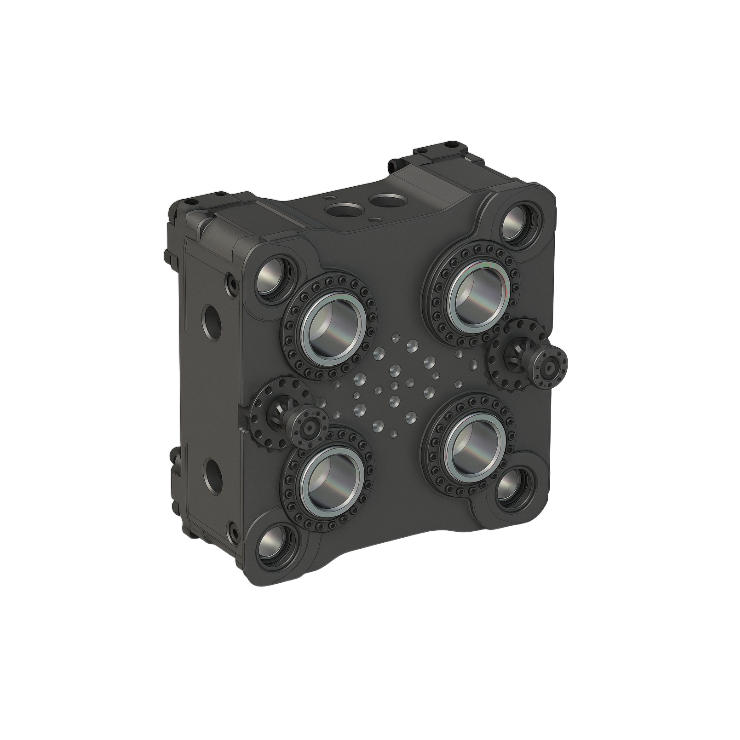

- 1. Multi-cylinder direct press clamping structure: small platen deformation, parallel pressure on the mold, high molding accuracy.
- 2. Double-cylinder/Four cylinders for injection, a linear guide for moving: stable injection, sensitive action, high precision.
- 3. Patented sealing ring structure: high sealing reliability and long service life.
- 4. Large template spacing, high rigid template: suitable for deep cavity injection molding, product thickness is uniform.
Product Accessories
- 1. Diagonal double injection mold shift oil cylinder and linear guide, more accurate and stable injection.
- 2. An optimized and upgraded platen, with a reliable structure and small deformation, can effectively protect the equipment and improve the mold’s service life.
- 3. High-performance chrome plated screw, durable and efficient, a wide range of applications.
- 4. High color mixing/high mixing screw: to meet the high color mixing products, easy to change color custom screw: specially customized plasticizing components for different products, such as PC, PA, etc.
- 5.Professional matching of plasticizing components to meet the plasticizingrequirements and color mixing performance of different materials.
Adequate supply of goods, available for delivery within 35 days. You can consult the Direct Press Type Injection Molding Machine price at any time.
Structural Stability & High Precision Performance
Optimized clamping structure ensures uniform force distribution, improved mold protection, higher molding accuracy, and long-term stable production efficiency.
Multiple mold protection design + even force distribution prevents localized overpressure on the parting surface and mold cavity deformation, protecting the mold and reducing maintenance costs.
Central direct-pressure clamping: clamping force acts directly on the center of the platen, significantly reducing flashing and uneven wall thickness issues, resulting in high yield rates, especially suitable for thin-walled and deep-cavity products.
Patented stress-optimized structure + synchronous braking structure: four- column synchronous movement, no adjustment required, low failure rate, ensuring long-term stable operation of the equipment.
Compared to traditional models, it occupies a smaller footprint and has a lower center of gravity, requiring less factory headroom. The same factory area can accommodate more machines, increasing overall production capacity.
Higher Yield, More Durable Molds, More Flexible Production
Clamping force applied directly to the platen center helps distribute pressure more uniformly, reduce platen deformation, and improve mold protection for demanding production tasks.
Uniform force distribution for better molding consistency
By applying clamping force directly to the center of the platen, the structure helps minimize deformation, improve parting line sealing, and maintain accuracy during long production cycles.
Uniform Clamping
Minimizes platen and mold deformation, improves parting line sealing, reduces flash, and helps boost product yield.
Mold Protection & Shape Retention
Helps prevent long-term deformation under uneven pressure, extends mold lifespan, and supports high-precision part production.
Versatile & Flexible Production
Large mold capacity and wide opening stroke support thin-walled, deep-cavity, and dynamically balanced products on one machine.
Machine Performance Parameters
Model Display
Case & Application
-

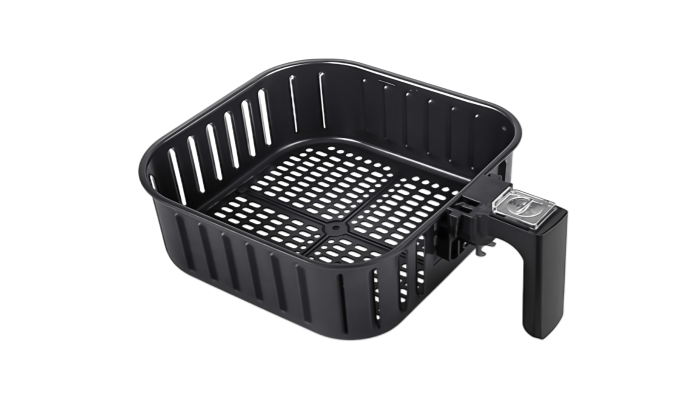

Appliance Parts -

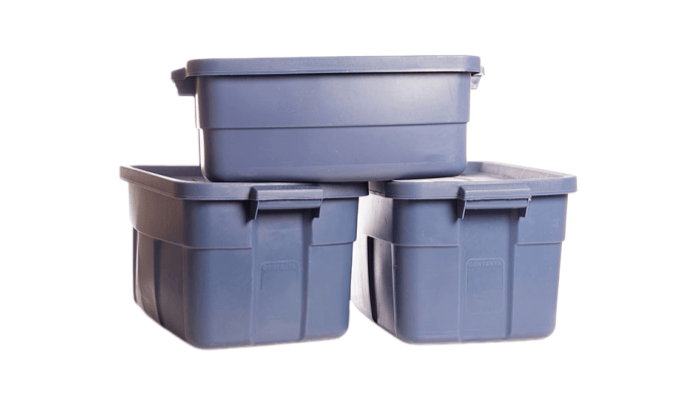

Consumer Goods -

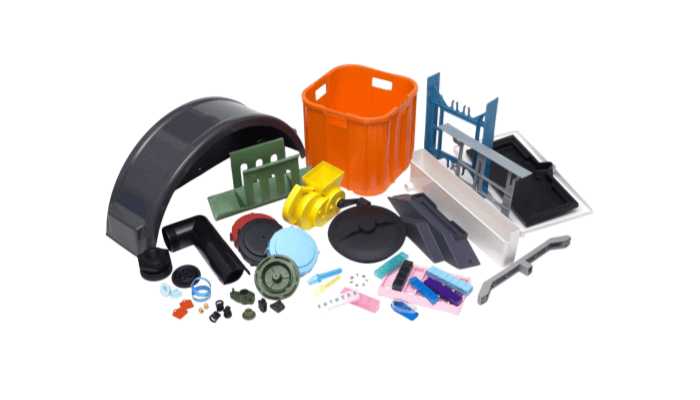

Large-scale injection-molded product -

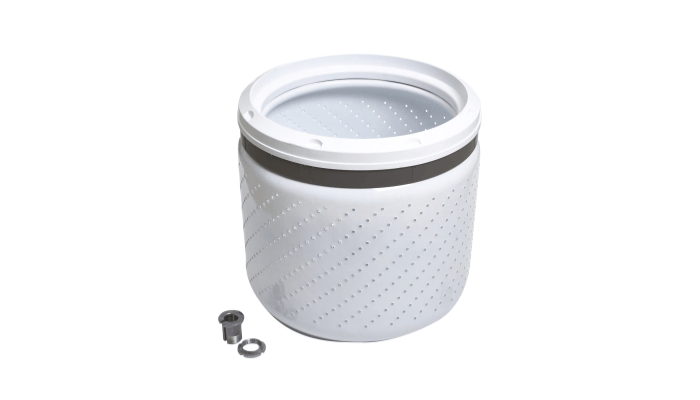

Home appliance industry -

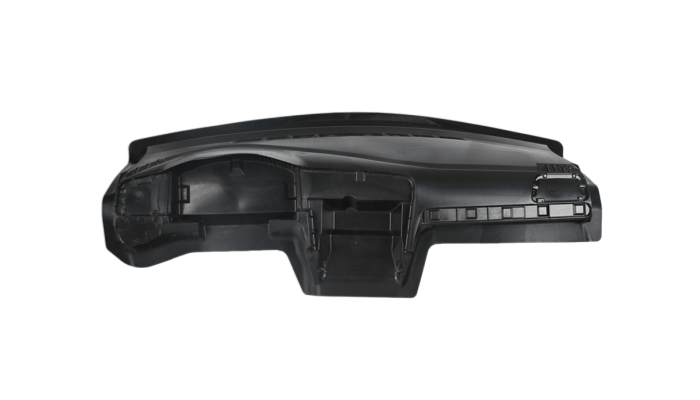

Plastic automotive parts -

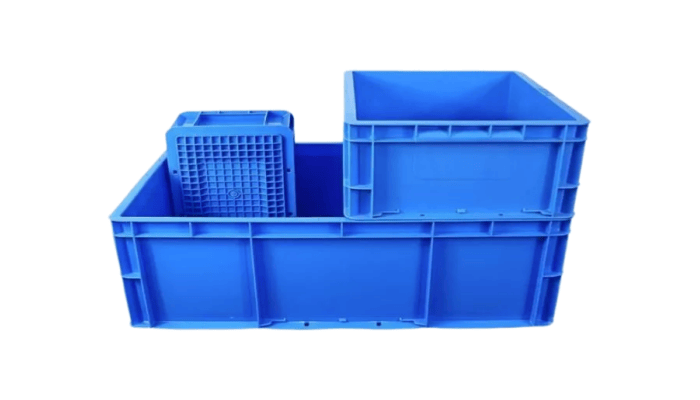

Deep-cavity plastic product
