Which injection molding characteristics enable high-precision parts?

2025/08/01 By Topstar

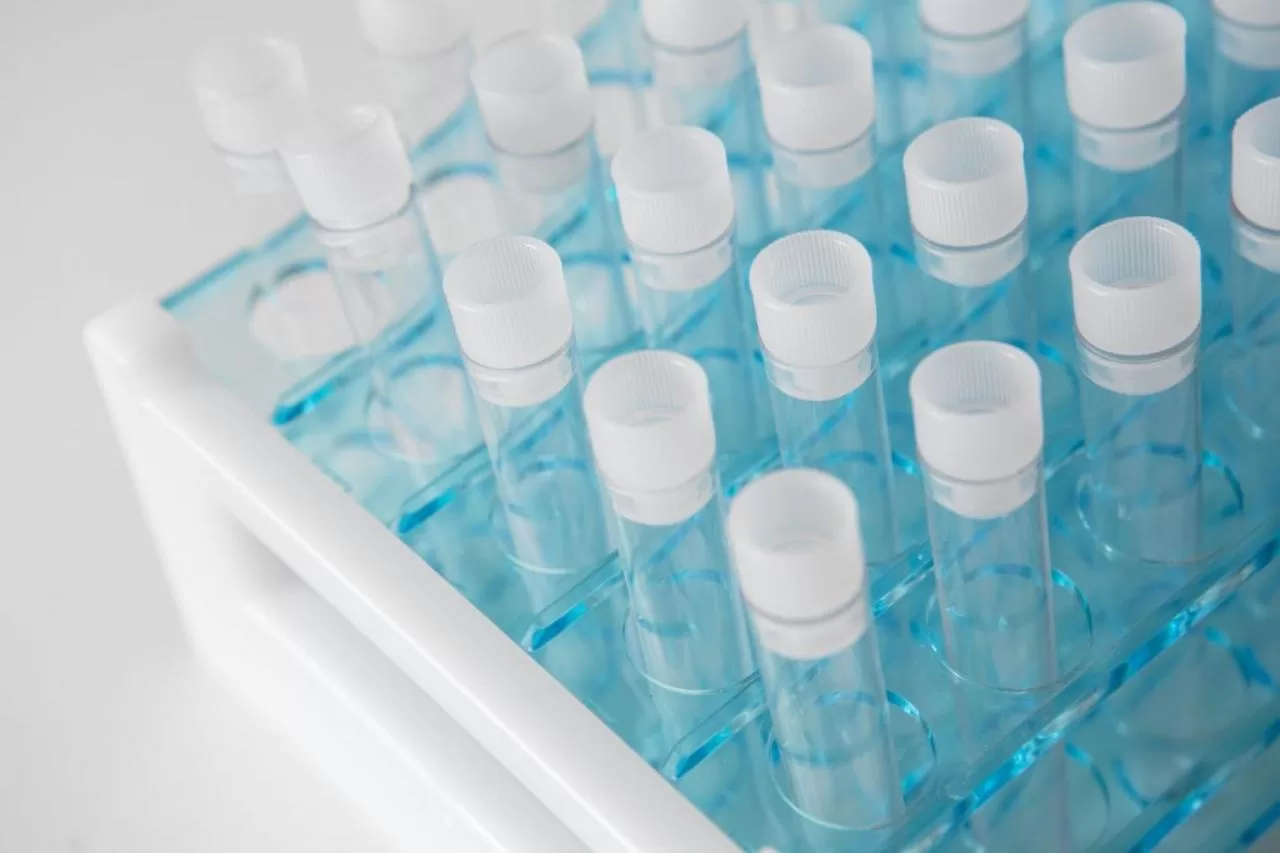

Precision medical plastic parts

Industry data show that the injection molding of precision plastic parts, such as those used in medical product packaging and optical housings, requires tolerances as low as ±0.01 mm. To achieve these levels of performance, we generally recommend using all electric injection molding machines equipped with servo motors and/or linear guides to ensure repeatable performance. Of course, the machine’s repeatability and controllability must also be taken into account. Furthermore, maintaining a consistent barrel temperature and precise injection profiles are essential, as are precise mould clamping methods. Proper equipment and process design lay the foundation for molded parts that meet the most stringent dimensional and surface finish requirements.

Machine Rigidity and Structural Rigidity in Injection Molding

High-precision injection molding requires an injection molding machine with exceptional rigidity. For example, a highly rigid platen and sturdy tie-bar design minimizes deflection under clamping force, ensuring precise alignment of the mold halves with every shot. Furthermore, a reinforced machine frame reduces vibration. Using an injection molding machine with reinforced high rigidity and linear guides and tie-bars ensures platen parallelism. The highly rigid injection unit reduces screw shaft deflection during high-pressure filling, ensuring consistent shot weight. By eliminating mechanical deflection and ensuring structural rigidity, you achieve consistent gate seals and part dimensions with every cycle in the process, thereby enabling the creation of repeatable microfeatures and thin-wall geometries essential for modern precision applications.

Servo-driven injection and pressure control in injection molding

Precise metering and injection require a servo-driven injection molding machine equipped with a flexible and intelligent control System. Servo control of position, speed, and pressure in injection molding provides fast response and precise metering. Furthermore, servo injection enables smooth transitions between speed and pressure stages. By adjusting the injection speed profile and maintaining the holding pressure within a ±1 bar tolerance, you can minimize part-to-part variability. Furthermore, multi-step injection profiles prevent hysteresis and over-packing at the gate, reducing internal stresses. This level of dynamic control ensures uniform melt front progression, minimal volume shrinkage, and consistently sharp part edges, ensuring the high-precision features and tight tolerances required by precision industries.

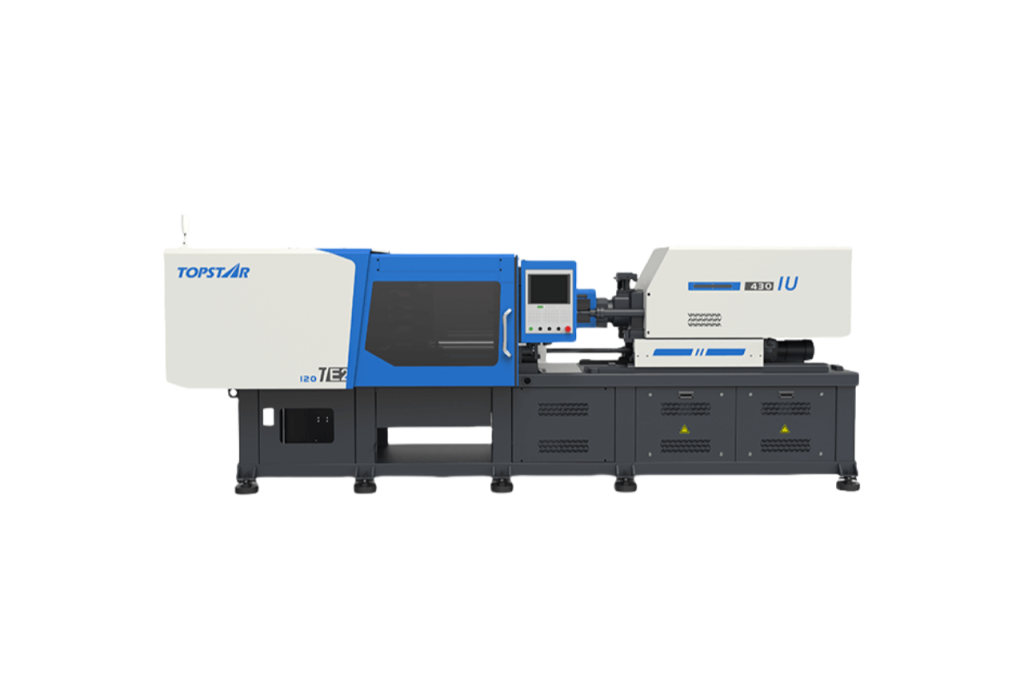

all electric injection molding machine 7-7

Ensuring Temperature Uniformity and Barrel Zoning

In injection molding, it’s also crucial to maintain uniform melt quality across all zones. To achieve this, you divide the barrel into five or more independently controlled heating zones. This prevents thermal gradients that can cause variations in flow rate. Real-time thermocouple feedback also ensures consistency. High-precision thermocouples and PID controllers can be installed to maintain each zone within ±1°C of the setpoint. Advanced screw designs with mixing sections ensure consistent melt temperature and material uniformity. By strictly controlling melt conditions and thermal stability, warpage, sinkage, and internal stresses can be reduced, resulting in parts with dimensionally stable and high surface quality that meet the injection molding requirements for micro-precision and functional polymer components.

Mold Design and Thermal Management

Optimized mold design complements precision injection molding machines. Integrating conformal cooling channels maintains uniform cavity temperature, accelerating cycle times and reducing temperature-induced dimensional drift. Furthermore, high-thermal-conductivity beryllium copper inserts can be used where needed. By collaborating with the mold manufacturer, high-thermal conductivity steel and a balanced runner System can be specified to distribute the melt evenly. Furthermore, you use mold flow analysis to position the gates for a uniform filling pattern and proper venting, thereby avoiding air pockets. The combination of mold design, thermal management, and flow optimization ensures uniform solidification of each part, delivering tight tolerances and an excellent surface finish—critical for precision components in demanding injection molding applications.

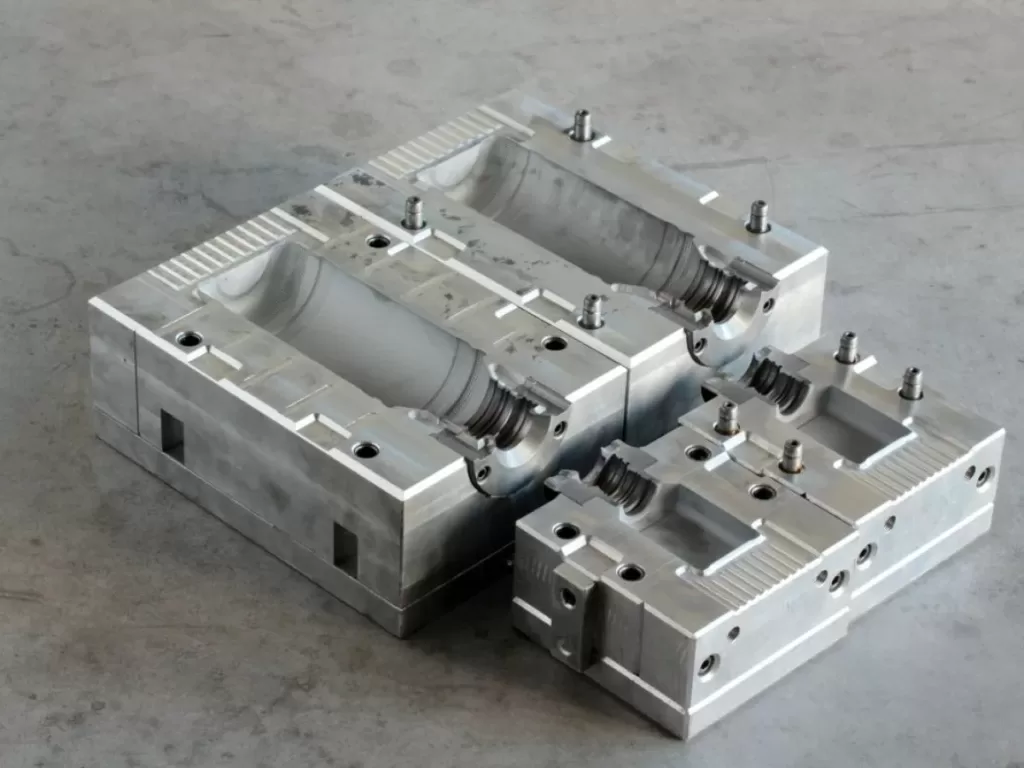

Injection molding 1

Monitor the entire process

Real-time monitoring is also key to achieving high-precision injection molding. In Topstar’s injection molding machines, we deploy in-mold pressure and temperature sensors to capture the profile of each shot, controlling them through a unified control panel to adjust for varying processes. Furthermore, you can implement SPC charts to track key metrics such as cushion position, injection pressure, and cycle time for early detection of deviations.

You can configure automatic alerts to trigger immediate process adjustments or intervention when deviations occur outside set limits. By integrating data-driven monitoring, instant feedback loops, and robust statistical controls, you can ensure rapid detection of drift and maintain high-precision output over long production runs.

Achieving High-Precision Parts

High-precision injection molding requires several key characteristics, including machine rigidity, servo-driven control, temperature uniformity, and process monitoring. I recommend investing in all electric injection molding machines equipped with advanced control systems, optimized mold cooling, and data-driven process control. This will ensure parts with tight tolerances, minimal warpage, and a high-quality surface finish.
