Why choose the Topstar EU Series 3-Axis Robot for precision part extraction?

2026/04/01 By le zhan

3-Axis Robot 6-5

Topstar’s EU Series 3-axis robot is primarily designed to address practical challenges encountered in injection molding production, specifically, inconsistent mold-opening positions, the need for repetitive setup and adjustment, slow response times, and a lack of transparency regarding equipment status. The EU Series integrates intelligent compensation capabilities, high-precision drive structures, ultra-high-speed motion performance, and standard MES interfaces into a single unit. This integration ensures that, in actual production environments, the robots generate fewer alarms, require less manual correction, and deliver more reliable part extraction.

Implementing Mold-Opening Position Compensation in 3-Axis Robot to Minimize Setup Time

Topstar’s EU Series 3-axis robots feature a mold-opening position compensation function that minimizes machine setup requirements. The system monitors the mold-opening position in real-time and automatically adjusts the robot’s stroke accordingly. By directly responding to signals from the injection molding machine, the 3-axis robot significantly reduces setup time and minimizes the need for manual adjustments. This ensures a smoother startup process and greater production stability.

In traditional robotic systems, even minor variations in mold opening can necessitate frequent recalibration. This process is both time-consuming and increases the risk of human error during setup. Through automatic compensation, however, the EU Series robots can continuously adapt to these variations, maintaining precise synchronization with the injection molding machine. This not only enhances part extraction accuracy but also boosts overall workflow efficiency by reducing the frequency of alarms and machine adjustments caused by imprecise mold-opening positions.

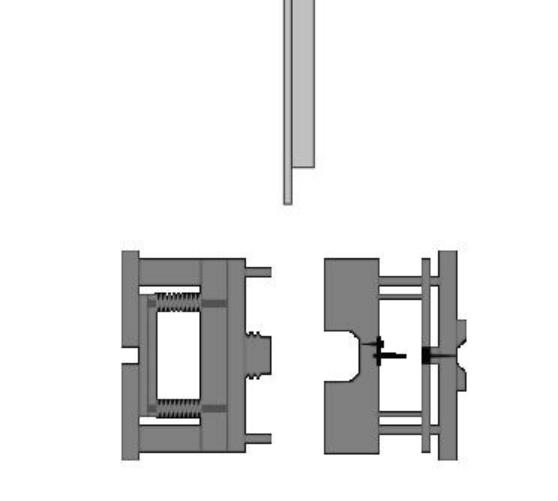

Implementing Mold-Opening Position Compensation in 3-Axis Robots to Minimize Setup Time

High-Precision Rack-and-Pinion Drive System

Both the front and rear axes of the EU Series 3-axis robots utilize a rack-and-pinion drive system. This design directly enhances positioning accuracy and mechanical stability, enabling the robots to achieve a remarkable repeatability of ±0.01 mm. Compared to motion systems with lower structural rigidity, rack-and-pinion transmission technology delivers stable power transmission and highly responsive mechanical performance. With rack-and-pinion drives employed on both the front and rear axes, the robot maintains its ±0.01 mm repeatability with exceptional consistency. Even during prolonged production runs, the robot returns to the exact same position with the utmost precision. This level of accuracy allows the robots to reliably extract precision parts—including compact or near-mold-edge parts—thereby preventing minor deviations that could otherwise lead to gripping errors, part surface damage, or collisions within the mold area.

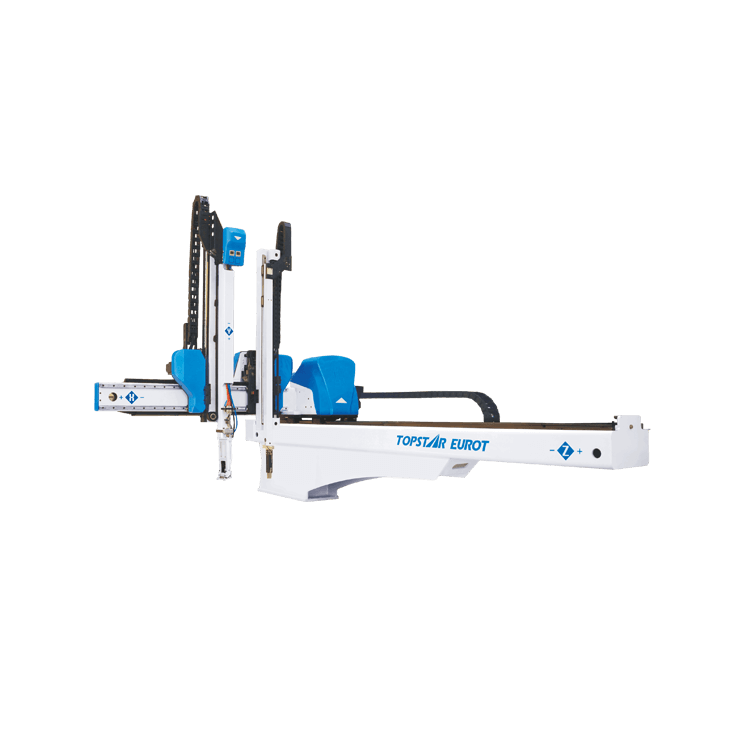

AC-Servo-Injection-Robots-EUW-120

High-Speed ​​Motors and Ultra-Fast Motion Performance

Speed ​​is one of the primary reasons why customers choose Topstar’s EU Series 3-axis robots. This is particularly critical in injection molding and electronics assembly, where robotic systems must execute movements with exceptional speed and agility. To meet this demand, the EU series robots are equipped with high-speed motors capable of reaching up to 6,000 RPM. This design accelerates the motion response speed of the 3-axis robots and enhances their overall cycle performance.

Topstar’s motion system boosts maximum speed by 10% while simultaneously reducing acceleration and deceleration times by 20%. This means the robot can reach its working position faster, complete material extraction more quickly, and return more efficiently for the next cycle. With a maximum speed of 3 meters per second, the EU series robot can keep pace with the rapid cycle times of injection molding machines. If an extraction robot is too slow, it compromises efficiency; conversely, if it is too fast but lacks stability, it introduces quality risks. Topstar’s solution achieves a perfect balance between these two key requirements, leveraging high-speed motors and precisely controlled motion design.

3-Axis Robot: Enhancing Operational Efficiency and Smart Manufacturing Value

Topstar’s 3-axis robots minimize production interruptions caused by inaccurate mold-opening positions. By using real-time detection and automatic stroke adjustment, the system significantly reduces the frequency of alarms. This facilitates smoother operations, minimizes downtime, and reduces the reliance on manual intervention. Consequently, production efficiency is boosted while operational complexity is reduced.

A reduction in alarms also directly translates to increased employee productivity. Frequent alarms not only disrupt production but also heighten operator stress and workload. By minimizing these distractions, the take-out robot creates a more stable, manageable work environment. This results in more efficient production workflows, reduced downtime, and higher Overall Equipment Effectiveness.

Standard MES Interface for Real-Time Data Monitoring

The EU series 3-axis robots come equipped with a standard MES (Manufacturing Execution System) interface, enabling real-time monitoring of production data and operational status. This feature empowers manufacturers to track performance, rapidly identify issues, and optimize production workflows. It transforms the extraction robot from a standalone device into a pivotal component of a smart manufacturing ecosystem. When connected to an MES, the system enhances data transparency across the entire production line. Managers gain real-time access to critical information—such as robot performance metrics, cycle times, and alarm history—thereby enabling data-driven decision-making. Furthermore, the utilization of remote monitoring capabilities reduces the need for on-site supervision, thereby boosting management efficiency.

MES system

The Versatile Applications of the EU Series 3-Axis Robots

Topstar’s 3-axis robots are widely deployed in a diverse range of applications, including injection molding, electronics assembly, and other high-speed automated manufacturing processes. By combining precision, speed, and smart control capabilities, these robots handle applications that demand both fast cycle times and high positioning accuracy really well. This versatility enhances their long-term value across a wide range of production environments. Furthermore, their exceptional adaptability allows manufacturers to deploy the same robotic platform across diverse production scenarios. This reduces the need for specialized equipment and streamlines inventory management. Whether you’re handling small, precision components or large molded parts, you can configure the EU Series to meet a wide range of operational needs.

A Robot That Integrates Precision, Intelligence, and Speed

Topstar’s EU Series 3-axis robots are specifically engineered for manufacturing facilities that cannot afford the drawbacks of slow response times, unstable positioning, or repetitive manual adjustments. By integrating intelligent mold-opening compensation, a high-precision rack-and-pinion drive system, ultra-high-speed motor performance, and MES connectivity, these robots deliver the speed and precision essential for modern production lines. Whether in an injection molding facility or an electronics assembly plant, this part-removal robot boosts efficiency without compromising on accuracy. That is precisely why it is the right choice!
