24-hour timer function: Topstar cabinet dryer can achieve timed drying

2026/02/25 By le zhan

nylon, PET, or PBT

Residual trace moisture in hygroscopic raw materials such as nylon, PET, or PBT can reduce melt quality, shorten plastic mold life, and increase waste. Topstar’s cabinet dryer solves this problem through intelligent timing, robust safety features, and precise temperature control. With a built-in 24-hour timer, adjustable airflow, PID temperature control, and a multi-layer protection system, Topstar cabinet dryers transform the drying process from tedious manual operation into a predictable automated step in the material flow.

Cabinet Dryer Equipped with 24-Hour Timer

The 24-hour timer function is one of the most practical and valuable features of Topstar cabinet dryers. This eliminates the need for manual pre-start operation, reducing reliance on operators. More importantly, it ensures process consistency. When the drying time is preset according to material specifications, errors caused by human estimation are eliminated.

For example, if nylon needs to be dried at 80°C for 4 hours, the cabinet dryer can be programmed to start automatically at 2:00 AM, ensuring stable drying conditions are reached before the injection molding machine begins production at 6:00 AM. Furthermore, timers improve energy efficiency. The dryer no longer runs continuously but operates only at predetermined time intervals. This controlled operation reduces unnecessary heating cycles, thus lowering overall energy consumption.

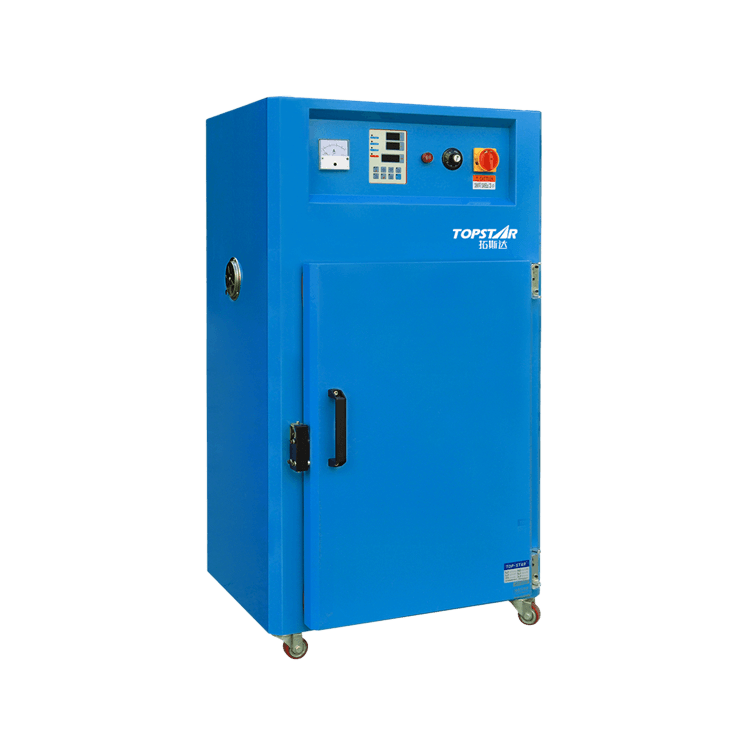

Cabinet Dryer

Adjustable Air Valve Design for Optimized Airflow

Airflow plays a crucial role in drying efficiency. Drying air must circulate evenly through the material to effectively remove moisture. Topstar cabinet dryers feature an adjustable air valve design that allows operators to fine-tune airflow based on material type and batch size. Different plastics require different airflow intensities. Lightweight materials may require moderate airflow to prevent scattering, while denser materials may require stronger airflow to ensure uniform heat penetration. Adjustable air valves allow for precise airflow control without increasing the heater load.

This flexibility brings two major advantages:

  • Improved drying uniformity
  • Reduced energy waste

By adjusting airflow rather than simply increasing temperature, operators can optimize drying performance while protecting material integrity, ensuring balanced airflow for stable and efficient operation. This feature significantly enhances operational flexibility for plants processing multiple materials.

The Cabinet dryer employs a PID temperature control system for uniform drying

Temperature stability directly determines drying effectiveness. Traditional on/off temperature control systems lead to significant temperature fluctuations, resulting in uneven drying or material degradation. Topstar cabinet dryers utilize a PID temperature control system. The PID control system continuously monitors temperature deviations and smoothly adjusts heater output. This prevents temperature overshoot and ensures a stable chamber temperature.

Stable temperature results in:

  • Uniform moisture removal
  • Reduced risk of thermal degradation
  • Improved dimensional consistency of molded parts
  • Reduced heater cycles, lower energy consumption

The PID control system, integrated with a 24-hour timer and adjustable airflow system, ensures stable drying conditions throughout the drying cycle. Temperature consistency is crucial for precision plastics production, especially when processing engineering materials.

Uniform drying of injection molded plastic

Safety Protection Features for Cabinet Dryers

Topstar’s cabinet dryers are equipped with an adjustable over-temperature protector to ensure safety during 24-hour timed operation. If the main temperature controller malfunctions or external factors cause overheating, the over-temperature protector will automatically cut power before the critical temperature is reached. This prevents safety hazards such as material degradation, equipment damage, and fire risks.

This adjustable design allows users to set safety limits according to material properties. This flexibility ensures safe operation on a variety of plastic products. Furthermore, this layered protection approach reflects forward-thinking engineering. Topstar does not rely on a single control mechanism; instead, it integrates redundant safety systems to ensure reliability.

Warning Lights and Motor Overload Protection

Efficient production requires timely fault detection. Topstar cabinet dryers are equipped with warning lights and clear fault indicators, providing real-time status updates during timed production. When abnormal conditions occur, such as overheating, motor overload, or electrical faults, the system immediately issues a visual warning. This allows operators to take quick corrective action. If the motor draws excessive current due to blockage or wear, the motor overload protection device will automatically stop operation, preventing further damage and reducing maintenance costs. By combining warning indicators with the protection system, Topstar cabinet dryers improve operational reliability and minimize downtime.

Intelligent, Safe, and Stable Dryer

Topstar cabinet dryers feature intelligent timing, precise temperature control, adjustable airflow, and multiple safety protections, providing a highly reliable drying solution. A 24-hour timer ensures drying time perfectly matches any production schedule. Meanwhile, the PID control system guarantees temperature stability, adjustable air valves optimize airflow for different materials, and multiple safety protections protect both the equipment and operators. These features combine to create a stable, energy-efficient, and easy-to-use plastic drying system.
