How to Calibrate the PID Controller of Topstar Injection Moulding Dryer for 1℃ Temperature Accuracy?

2026/03/02 By le zhan

injection moulding dryer 1-1

Precise temperature control in the injection moulding dryer ensures stable part quality and reduces scrap rates. For materials such as PA, PET, and PBT, the ±1℃ temperature control range in injection moulding dryers often determines whether dimensional tolerances or product mechanical properties meet standards. For users new to our dryers, we will explain here how to calibrate the PID controller on Topstar injection moulding dryers to achieve ±1℃ accuracy, resulting in more precise temperature control.

Calibration Process of PID Control in Injection Moulding Dryers

Before adjusting any PID parameters, the mechanical and electrical performance of the injection moulding dryer must be stable. Many control problems do not stem from improper parameter tuning, but from overlooked hardware inconsistencies. Therefore, pre-calibration checks are essential.

First, check the heater assembly. Topstar hopper dryers use high-efficiency heating modules designed for uniform heat distribution. Confirm that the heater resistance is within specifications and that the solid-state relays (SSRs) are functioning correctly, without delay or abnormal heating. Unstable SSR switching cycles directly affect PID output characteristics. Next, check the airflow system. The blower motor must operate at its rated speed, and the air circulation channels within the hopper dryer must remain clear. Clogged filters or uneven airflow will create temperature gradients, which no PID algorithm can fully compensate for.

Furthermore, ensure the input voltage is stable to within ±5%; ensure proper grounding to reduce signal noise; and ensure clean air filters and intact hopper insulation, with no material bridging or dead zones within the hopper. PID calibration should begin only when the injection moulding dryer is in mechanically stable operation. This rigorous approach ensures that parameter adjustments are aimed at optimising control rather than compensating for physical defects.

Characteristics of the PID Controller for the Injection Moulding Dryer

PID control in the injection moulding dryer adjusts the heater output based on three components:

  • Proportional (P): Reacts to current temperature deviations
  • Integral (I): Eliminates long-term steady-state errors.
  • Derivative (D): Predicts future trends and reduces overshoot.

In the hopper dryer, temperature control exhibits thermal inertia. Due to factors such as heater mass, airflow, and material heat absorption, the system response is relatively slow. Therefore, PID parameter tuning must account for delay and heat-storage effects. Injection moulding dryers equipped with PID control systems integrate intelligent automatic tuning algorithms, adjustable sampling intervals, and temperature deviation alarms. However, automatic tuning only provides a baseline. To achieve an accuracy of ±1℃, manual fine-tuning is essential. Precise control and adjustment of P, I, and D ensure rapid response without oscillation under load changes and maintain long-term stable regulation performance.

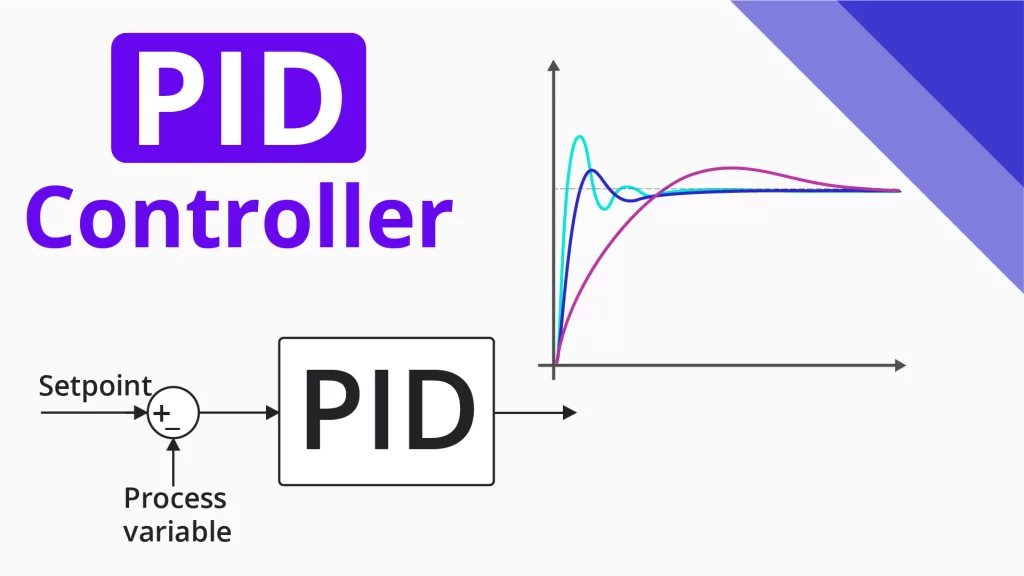

Characteristics of the PID Controller for the Injection Molding Dryer

Detailed Explanation of PID Calibration Steps

A structured approach ensures consistent results. The calibration steps are as follows:

Step 1: Establish Baseline Conditions
Set the injection moulding dryer to the target drying temperature with the hopper empty. Record the temperature profile for at least 30 minutes to observe the natural temperature rise time and overshoot characteristics.

Step 2: Run Automatic Tuning Under Load
Add production material to simulate actual operating conditions. Activate the automatic tuning function to generate initial PID parameter values ​​based on actual thermal mass and airflow resistance.

Step 3: Evaluate Overshoot and Settlement Time
If the overshoot exceeds 2°C, slightly decrease “P” or increase “D”. The goal is smooth convergence within ±1°C with minimal delay.

Step 4: Adjust the Integral Term to Eliminate Offset
If the steady-state temperature stabilises 0.5–1°C below the target temperature, gradually increase “I”. Avoid abruptly increasing the integral gain to prevent oscillations.

Step 5: Optimise the Sampling Interval
Hopper dryers are typically suited to a sampling interval of 0.5–1 seconds. Too long an interval reduces response speed; too short an interval increases sensitivity to noise.

Step 6: Disturbance Testing
Simulate cold-material loading and monitor the temperature recovery time. A well-calibrated injection moulding dryer should recover temperature stability within ±1°C in a predictable timeframe, without fluctuations.

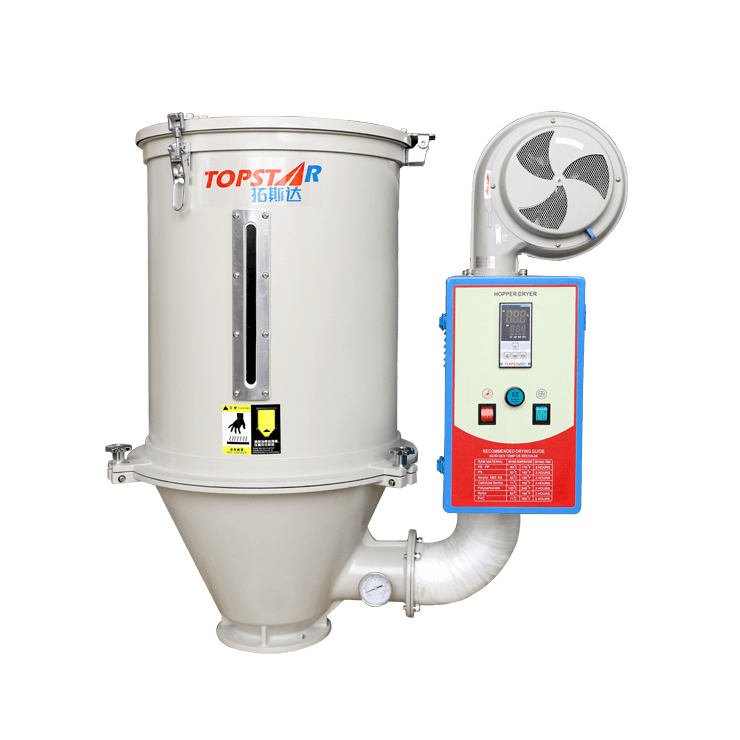

THD-Hopper-Dryer

Validation, Optimisation, and Long-Term Stability of Injection Moulding Dryer

Statistical performance testing is required to confirm 1°C accuracy. Run the hopper dryer under stable production conditions for at least two hours. Furthermore, temperature data must be recorded regularly to assess average temperature deviation, maximum fluctuation range, standard deviation, and overshoot following disturbances. Ideally, the steady-state deviation of the injection moulding dryer should be kept within ±0.5℃, and the maximum fluctuation within ±1℃. We also recommend multi-point verification. Measure the temperature at different depths within the hopper to confirm uniform air distribution. An uneven temperature distribution may indicate an airflow imbalance rather than a PID error.

Long-Term Maintenance and Drift Prevention

Achieving an accuracy of 1℃ once is insufficient; maintaining this accuracy over the long term is crucial. Without proactive management, environmental dust, heater ageing, and sensor drift will gradually affect performance. Routine maintenance should include recalibrating RTD every 6-12 months, regularly cleaning filters, checking SSR heat dissipation efficiency, and checking fan motor stability. Monitoring controller log data helps detect drift patterns before they affect product quality.

In addition, the displayed temperature should be regularly compared with an externally calibrated thermometer to ensure consistency. The Topstar injection moulding dryer control platform supports customizable alarm thresholds and the storage of historical performance data, enabling predictive maintenance rather than reactive repairs. Therefore, continuous preventative measures significantly extend equipment life and maintain temperature accuracy over years of operation.

Long-Term Maintenance and Drift Prevention

PID Instability Troubleshooting Guide

Even with proper calibration, operational variations can occasionally lead to system instability. A structured troubleshooting process can avoid unnecessary downtime.

If the temperature fluctuates around the setpoint, slightly reduce the proportional gain or increase the differential damping. If the temperature rises too slowly, check the heater efficiency and consider increasing the proportional gain slightly. A consistently stable deviation indicates the need for integral adjustment. Random fluctuations usually indicate electrical noise or poor grounding. A significant temperature drop during material feeding requires optimising the feed rate or fine-tuning the PID to restore balance. Avoid drastic parameter changes; small incremental adjustments yield stable results.

Achieving Precise Temperature Control Accuracy

Achieving ±1°C accuracy in Topstar injection moulding dryers requires a combination of suitable sensors, rigorous pre-inspection procedures, intelligent PID control, meticulous verification, and routine calibration and maintenance. By following the adjustment steps above, your process and quality teams will benefit from fewer scraps, more consistent production cycles, and measurable cost savings.
