Which features of the take-out robot can reduce cycle-to-cycle variation?

2025/07/21 By Topstar

take-out robots 1

Cycle-to-cycle variations in the injection molding process can impact part quality and production efficiency, particularly when the take-out robot is responsible for the take-out work. To solve this problem, Topstar allows the robot program, servo parameters, and mechanical settings to be modified through an intuitive manual controller or the application software, which can be adjusted according to the specific mold. This allows the trajectory of traction, undercut handling, anti-slip, tilting motion, and even irregular paths to be optimized, ensuring that each pick-up follows the same motion trajectory. Secondly, a single servo drive can directly control up to five servo motors, allowing for precise motion control of all axes. Finally, seamlessly connect with the injection molding machine under a unified control system, automatically calling and synchronising start, end, and error signals with millisecond accuracy. Achieve repeatable positioning accuracy within 0.01 mm, thereby reducing scrap and rework.

Custom Modification of Take-out Robot Application Optimization Take-out Path

One of the most effective ways to reduce variation in take-out robots is to modify programs, servo parameters, and mechanical parameters, or change applications according to needs. Topstar’s take-out robots enable operators to fine-tune the path of the take-out robot during take-out to manage undercuts or obstacles, allowing the robot to navigate complex mold geometries seamlessly in each cycle. Additionally, built-in scripts enable conditional branching for parts of different geometries or weights, automatically selecting the most suitable pick-and-place routine. The servo system fine-tunes acceleration/deceleration profiles to optimize both speed and motion smoothness, eliminating ejection jitter.

The system implements S-curve path interpolation to minimize mechanical shocks during directional transitions, enabling gentle material handling and precise positioning. This prevents inter-cycle deviations and preserves critical dimensional tolerances.

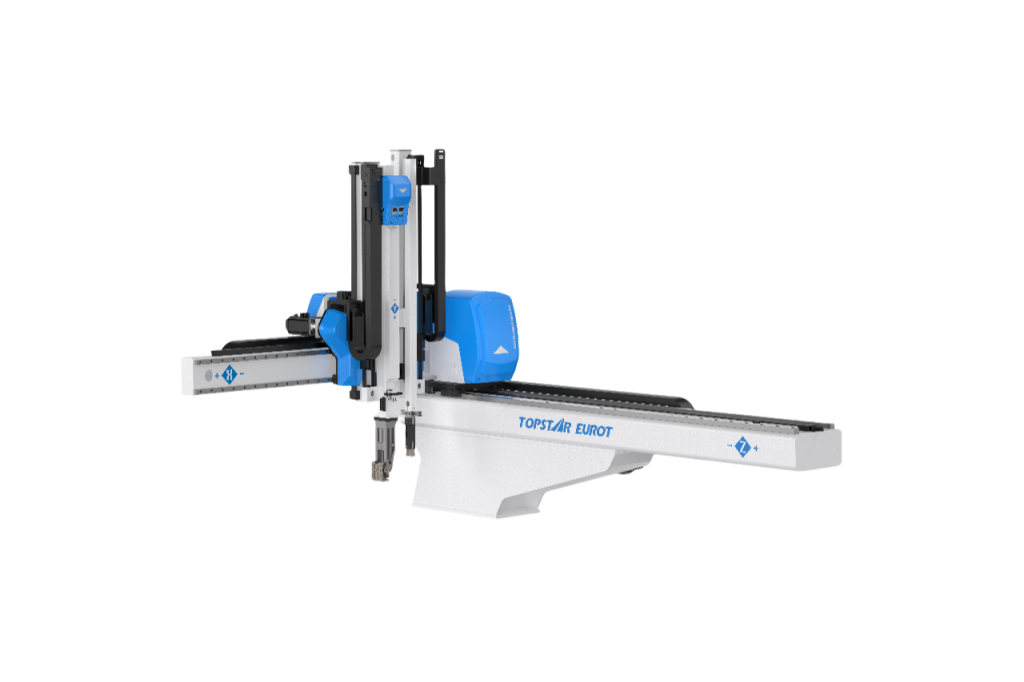

Linear robots 1-1

Precise multi-axis coordination and repeatability of the removal robot

To control movement more accurately, we utilise a servo drive to directly control five servo motors, thereby enhancing the accuracy of the removal control. First, all five servo motors share a standard motion controller with synchronous interpolation, ensuring coordinated motion in a complex motion chain. Then, the system utilises a high-resolution encoder feedback loop to correct any position errors in real-time. Engineers calibrate the injection molding robot’s motion model to compensate for joint clearance, link flexibility, and thermal expansion, ensuring micron-level spatial accuracy. Additionally, the controller’s compensation algorithm automatically adjusts according to changes in payload and environmental factors. The control system automatically triggers adaptive error recovery when deviations surpass ±0.01 mm. This holistic approach ensures that the pick-up motion of each cycle is nearly identical to that of the previous one, thereby reducing cycle-to-cycle variation.

Mechanical Parameter Adjustment for Gripping and Anti-Slip Control

In addition to software, it is also essential to reduce inconsistencies in the mechanical parameters of the pick-up robot when setting up part handling. Topstar’s take-out robots can accurately set the gripping force based on part weight and material stiffness to prevent slippage or cosmetic damage while adapting to changes in flow channel residues. The robotic system precisely regulates the gripper’s closing speed, holding pressure, and dwell time to ensure damage-free part handling. In addition, the sensors incorporated into it can detect over-tightening or under-tightening and trigger automatic corrective actions or alarms. Modular gripper fingertips enable rapid switching between different part shapes, ensuring optimal contact geometry. Therefore, by tailoring mechanical parameters to each part geometry and mold ejection force, Topstar’s injection molding robot solutions maintain stable processing and reduce scrap in each cycle.

Integrated control system for signal synchronization

Seamless synchronization between the take-out robot and the injection molding machine can minimize differences. In addition to the standard RS485 communication interface and support for MODBUS RTU communication protocol, Topstar’s integrated control system also supports pneumatic and safety signals. This enables the machine only to call the injection moulding robot when the mould is fully open, the temperature is correct, and the ejector is retracted. The controller actively monitors mold temperature (±1°C), cavity pressure, and ejector position before triggering the take-out sequence, ensuring perfectly timed robot intervention. Additionally, it can trigger post-ejection operations, such as part inspection or rejection classification, based on real-time sensor data. This coordinated operation prevents timing drift and ensures that each cycle follows the same sequence, thereby maintaining part quality and reducing equipment wear, which in turn improves production line injection moulding efficiency.

injection molding machines 95-12

Reduce cycle-to-cycle differences in injection molding.

Adjusting and modifying the servo parameter settings of the take-out robot, as well as performing mechanical adjustments and integrated control synchronisation, enables real-time monitoring and adaptive correction, thereby minimising cycle-to-cycle differences during precision multi-axis coordination. These optimizations boost the injection molding machine’s production efficiency by 15-30% while enhancing overall molding cycle performance.
