What is the effect of multi-compressor staged control on energy-saving water chillers?

2025/07/28 By Topstar

water chillers 2-2

Using multi-compressor staged control can make water chillers both efficient and energy-efficient. Compared with a single compressor system at partial load, energy consumption per ton can be reduced by up to 30%. Generally speaking, we deploy two to four compressors to operate in stages to match the cooling capacity with the real-time load. Under staged control, short cycles can be minimized, and equipment life can be extended. By utilizing multiple compressors, your chiller can provide precise cooling effects while maximizing energy savings and extending the life of the compressors, ultimately achieving energy-saving water chillers.

Load matching and stage sequencing for energy-saving water chillers

The staged compressor control of energy-saving water chillers enables precise load matching through sequential startup, thereby optimizing performance under varying demands. For example, at 25% load, only one compressor is running. Therefore, energy consumption is significantly reduced compared to full-load startup. I will configure it to start the compressors at the most efficient capacity level, thereby avoiding unnecessary stages. The system dynamically adjusts the floating discharge pressure setpoint at each stage to maintain peak refrigeration cycle efficiency. This sequential approach prevents overcooling and reduces inrush current peaks, making your chiller installation more adaptable to fluctuating process demands while reducing electricity demand charges and mitigating utility penalties.

Improve water chiller Part-Load Efficiency

Multi-compressor staged control enhances part-load efficiency by enabling energy-saving water chillers to operate continuously near optimal efficiency. Each stage of the water chiller compressor operates on its BEP curve, so this energy-saving water chiller combination system maintains high COP over a wide load range without over-stage. You can also further improve energy performance by programming setpoint deviations to minimize deadband and maintain stable chilled water temperatures. Additionally, pairing staged compressors with variable-speed drive fans and pumps can match airflow and flow rates to actual conditions, further reducing energy consumption. By focusing on part-load performance, your chiller can consistently reduce energy costs during daily and seasonal usage cycles, improving the sustainability of your facility.

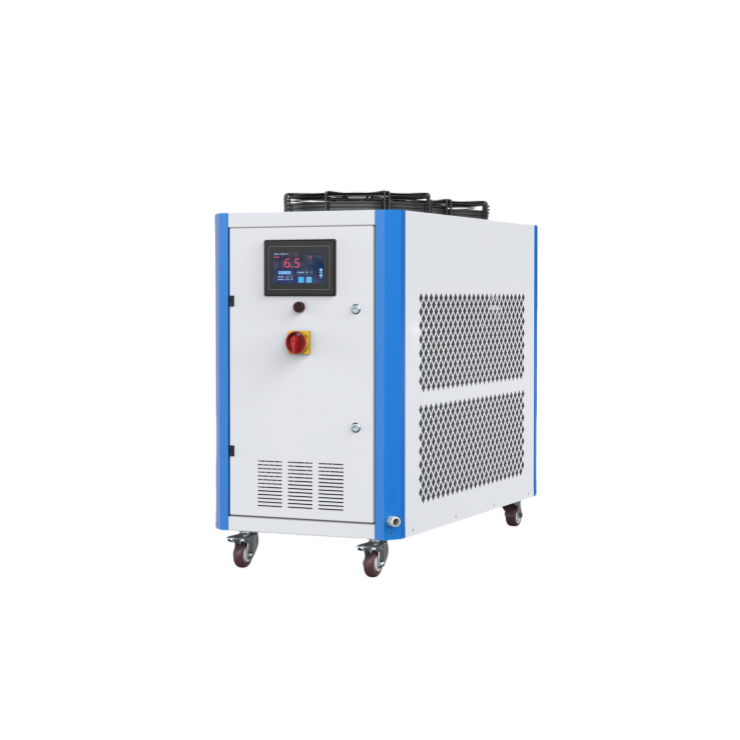

Energy-Saving water Chillers 2

Improve Energy-Efficient Water Chillers Reliability and Maintainability

Staged compressor control not only saves energy but also improves the reliability of energy-saving water chillers by balancing operation and reducing wear. In addition to load balancing, compressors are cycled in turns; however, no single unit takes on the entire workload, but rather the run time is evenly distributed. At the same time, I implemented a duty cycle algorithm that evenly distributes the runtime across all compressors, preventing any individual component from prematurely wearing out. This reduces wear and tear on particular units, extends maintenance intervals, and reduces the risk of unplanned downtime. By balancing the use of compressors, your water chillers can maintain consistent performance, perform scheduled maintenance, and reduce the total cost of ownership over the equipment’s lifetime, while ensuring reliable cooling.

Power Quality and Demand Management

Multi-compressor staged control also has a positive impact on power quality and demand management for energy-saving water chillers, which can smooth the facility’s electrical load profile. For example, staged compressors can limit peak current consumption, thereby smoothing the facility’s load profile and avoiding power factor loss. I have integrated soft-start or variable-frequency compressors in the water chiller to minimize voltage sags during startup, which can reduce stress on the upstream distribution network. Additionally, load-sensing relays can adjust the number of compressor stages to prevent simultaneous startup, thereby further protecting the infrastructure. This approach can reduce utility demand charges and stabilize downstream power systems, ensuring your chillers contribute to a more resilient power infrastructure.

Control Integration & Analytics

Advanced control integration and analytics enhance the benefits of energy-saving water chiller compressor tiering, providing actionable insights. In addition to basic tiering, Topstar’s water chillers integrate IoT-enabled controllers for remote monitoring. This enables operators to analyze run times, efficiency trends, and detect anomalies in real-time. The system seamlessly integrates with injection molding machines, displaying tiered performance metrics, kW/ton energy efficiency data, and predictive maintenance alerts on the machine’s HMI dashboard to enable data-driven decisions. These automated reports can identify opportunities to optimize tiering further or adjust set points based on seasonal patterns. By leveraging real-time data and analytics, your water chillers can achieve continuous energy savings.

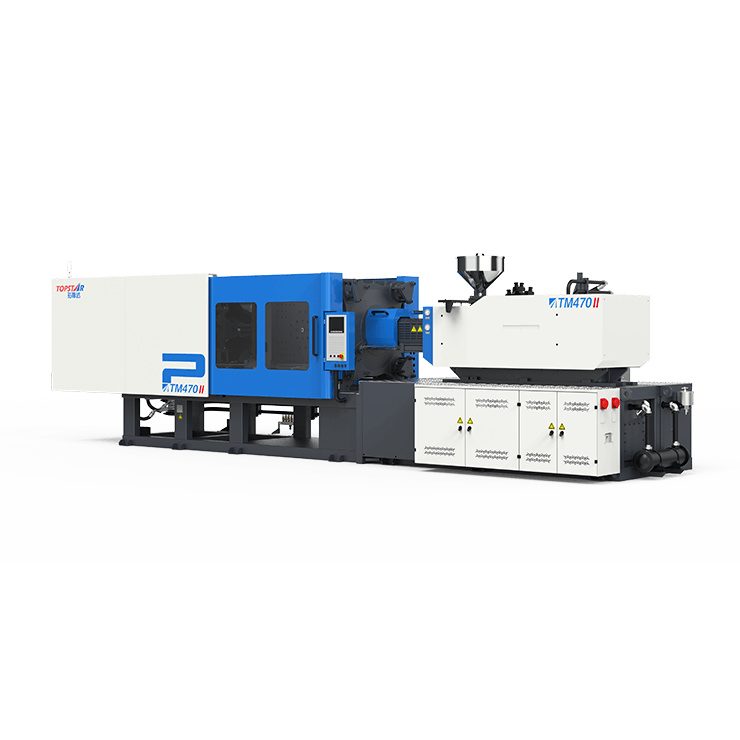

plastic injection moulding machine 1-2

Cooling Efficiently and Energy-Saving

Multi-compressor tiering control for energy-saving water chillers enables efficient and energy-saving cooling under various operating conditions, increased reliability, and improved power quality management. Controlling your chillers with multi-compressor stages will reduce operating costs, extend equipment life, support sustainable facility operations, and ensure consistent cooling performance.
