How does the T1 Cartesian injection robot meet comprehensiverequirements for speed, precision, and payload?

2026/07/03 By le zhan

T1 Cartesian injection robot

In injection molding, electronic assembly, and other automated processes that require fast cycle times, extremely high precision, and a certain load-bearing capacity, differences of even a millisecond or a micrometer can affect product quality and production efficiency. Therefore, Cartesian robots must possess three key capabilities: high speed, high precision, and high load capacity. So how does Topstar’s T1 Cartesian injection robot demonstrate these three capabilities? We will provide a detailed introduction below.

Design Philosophy of the T1 Cartesian injection robot

The core of our design philosophy for the T1 Cartesian injection robot is to maximize structural integrity while minimizing inertia and maximizing speed. Topstar achieves this goal by using advanced materials and simplifying the number of components. We build the robot arm from lightweight, high-strength A6061 aluminum alloy to deliver both strength and reduced weight. This material choice significantly reduces the arm’s moving mass, directly enabling faster acceleration and deceleration responses. Additionally, compared to previous generations, the number of structural components has been reduced by 20, which not only simplifies assembly and maintenance but also lowers the overall weight, enabling the equipment to perform more flexibly. This provides the T1 with a solid foundation for excellent performance in terms of speed, precision, and load capacity.

How Does the T1 Cartesian injection robot Improve Speed?

In automated processes, speed is often directly linked to production efficiency. The faster a Cartesian coordinate injection molding robot can remove products from the mold and transfer them to subsequent processes, the shorter the overall cycle time, resulting in higher output and greater profits.

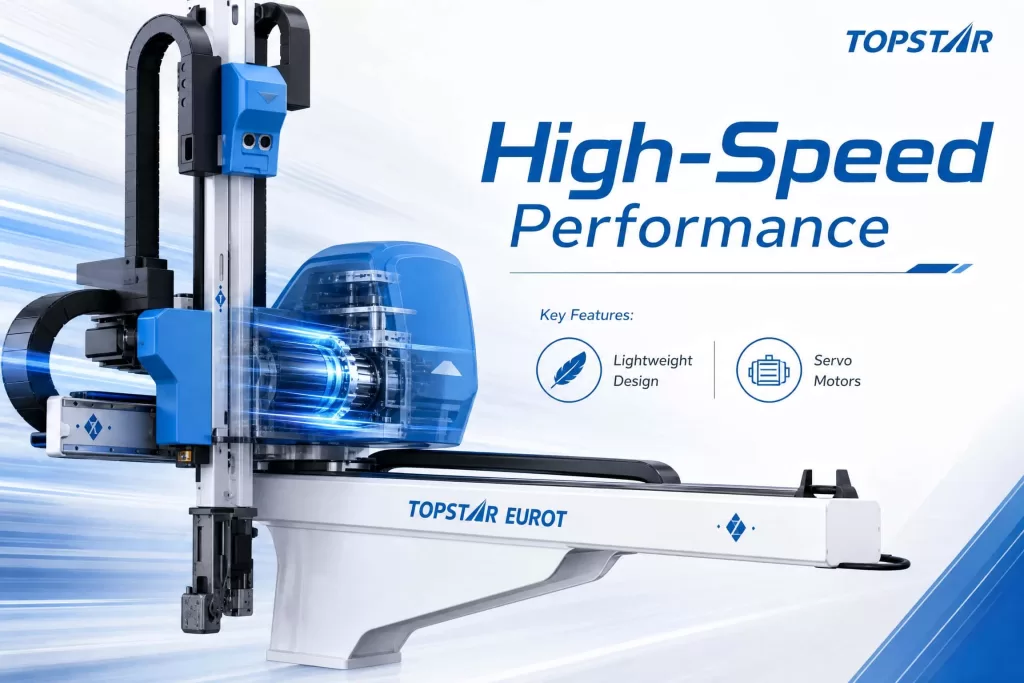

Lightweight Design and High-Speed Servo Motors

70% of the T1 Cartesian Injection Molding Robot’s main structure is made of high-rigidity, lightweight aluminum alloy. This material selection minimizes the total mass of the motion system, thereby reducing inertia. The reduced inertia enables faster acceleration and more precise deceleration, optimizing every movement within the production cycle.

To further enhance speed performance, we have equipped the T1 with high-speed servo motors capable of speeds up to 6,500 rad/min. These powerful motors enable instantaneous vertical speeds within the mold exceeding 3 m/s. The part removal process is extremely fast, reducing the T1 Cartesian injection robot’s dwell time in the mold from 1.4 seconds to an impressive 0.99 seconds, enabling the entire production line to fully realize its capacity. This direct reduction in cycle time significantly improves overall production efficiency by 20%.

Lightweight Design and High-Speed Servo Motors

How to Achieve High-Precision Gripping?

Speed can boost a factory’s production capacity, but precision is the key to ensuring quality—especially when manufacturing high-end and precision components. The T1 Cartesian Injection Molding Robot is designed to achieve micron-level positioning accuracy, ensuring that every component is handled with care and placed precisely, thereby preventing damage and maintaining product integrity.

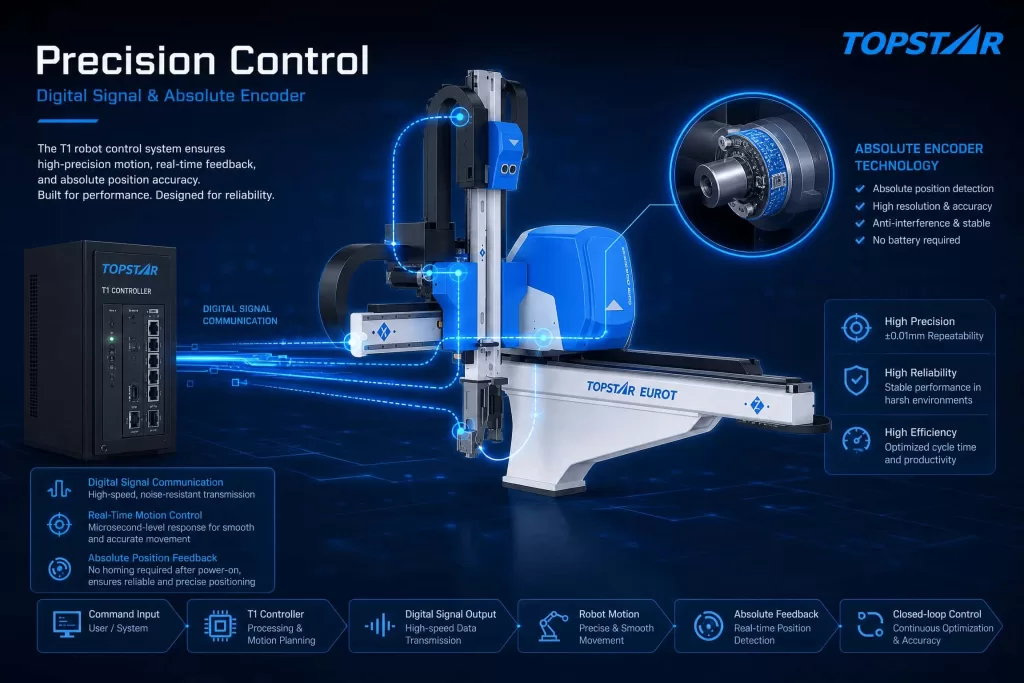

Digital Signal Transmission and Absolute Encoder Technology in the T1 Cartesian injection robot

The core of its high precision lies in the use of a 23-bit absolute encoder motor. This encoder provides up to 8.38 million distinct position points per revolution, enabling the robot to achieve extremely high-precision position sensing. This high-resolution capability enables the T1 to maintain a repeatability of ±0.02 mm, making it suitable for precision injection molding applications in sectors such as 3C electronics and medical devices.

To further ensure this level of precision, the T1 Cartesian injection robot employs digital signal transmission technology. This advanced transmission method eliminates electromagnetic interference (EMI) issues commonly found in traditional analog signal transmission. By utilizing digital signals, the T1 ensures the reliability of the position feedback system, enabling it to maintain stable motion accuracy even in factory environments with high levels of electrical noise.

Digital Signal Transmission and Absolute Encoder Technology in the T1 Cartesian injection robot

How to Maximize Payload Capacity and Versatility?

For these industrial robots, in addition to speed and precision, there is often a need for high payload capacity and the ability to handle multiple workpieces simultaneously. In this regard, the T1 Cartesian injection robot offers exceptional load capacity and structural stability, enabling it to handle automated tasks and multi-process applications.

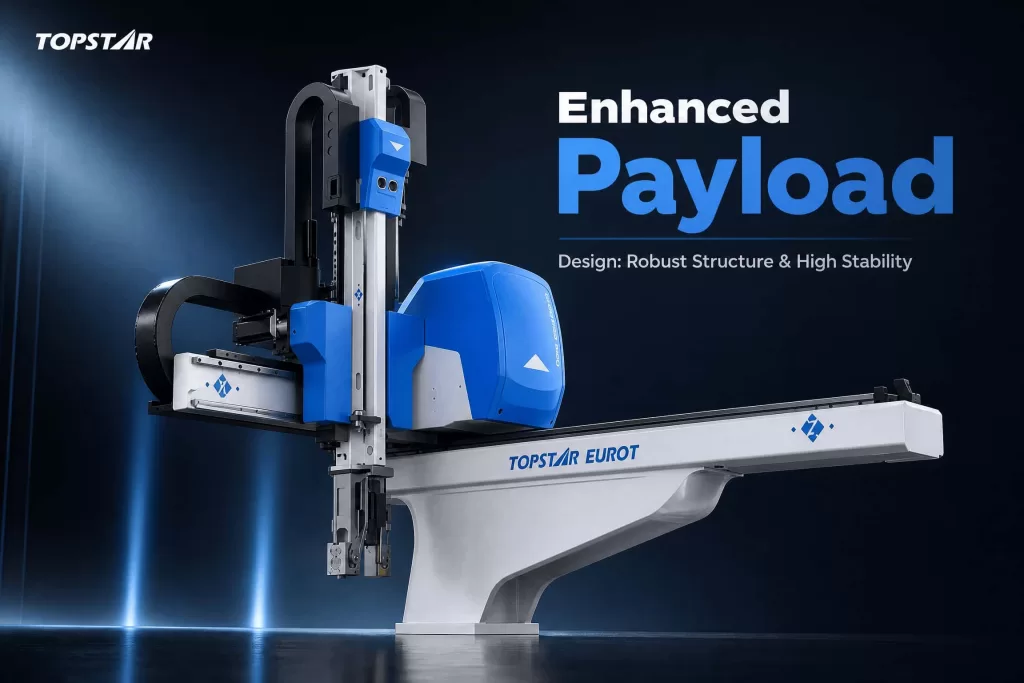

Robust Structural Design and Enhanced Load-Carrying Performance

The T1 Cartesian injection molding robot owes its outstanding load capacity primarily to its robust and well-engineered motion structure. To enhance load-bearing performance and ensure stability during high-speed operation, the robot utilizes thickened 200x150mm rectangular steel tubes as the main structure of its motion system. This robust construction provides the necessary rigidity to support heavier loads without sacrificing dynamic performance or causing unwanted vibrations.

Additionally, the T1 employs large-bore cylinders designed to deliver greater thrust to support heavier loads. The perfect combination of this robust mechanical frame and powerful drive system enables the T1 Cartesian injection molding robot to achieve a maximum payload capacity of 7 kg—a 15% increase over the previous generation. This enhanced payload capacity is crucial, as it not only supports complex end-effectors but also allows for the handling of multiple workpieces within a single work cycle. This versatility enables it to flexibly adapt to a wide range of production needs.

Robust Structural Design and Enhanced Load-Carrying Performance

Meets comprehensive requirements for speed, precision, and load capacity

The T1 Cartesian injection robot combines a lightweight aluminum alloy structure with high-speed servo motors, giving it a performance advantage in high-speed part retrieval. The use of 23-bit absolute encoders and digital signal transmission technology ensures micron-level operational precision, protects precision components, and guarantees consistent product quality. Meanwhile, its robust design—featuring thickened steel tubes and large-bore cylinders—provides a powerful payload capacity of up to 7 kg, enabling it to flexibly handle a wide range of complex automation tasks. The combination of these three aspects allows it to meet comprehensive requirements for speed, precision, and payload capacity.
