What are the characteristics of central feeding systems used in the automotive parts industry?

2026/06/29 By le zhan

central feeding systems 1-3

Many high-output automotive parts factories face challenges with their material handling: reliance on manual handling, isolated hoppers, and scattered drying equipment and auxiliary machinery. Operators manually load materials, and technicians manually adjust drying parameters.

As the entire automotive parts supply chain demands ever-higher standards for product precision control, the high costs associated with this traditional model have become unsustainable.

Topstar has designed a central feeding system specifically to meet the high-precision manufacturing needs of automotive parts factories. It integrates precise material ratios, end-to-end automation, innovative energy management, and broad applicability to create a highly integrated, intelligent control platform. This system addresses the issues of high energy consumption, high labor costs, and management difficulties associated with traditional centralized material supply in factories.

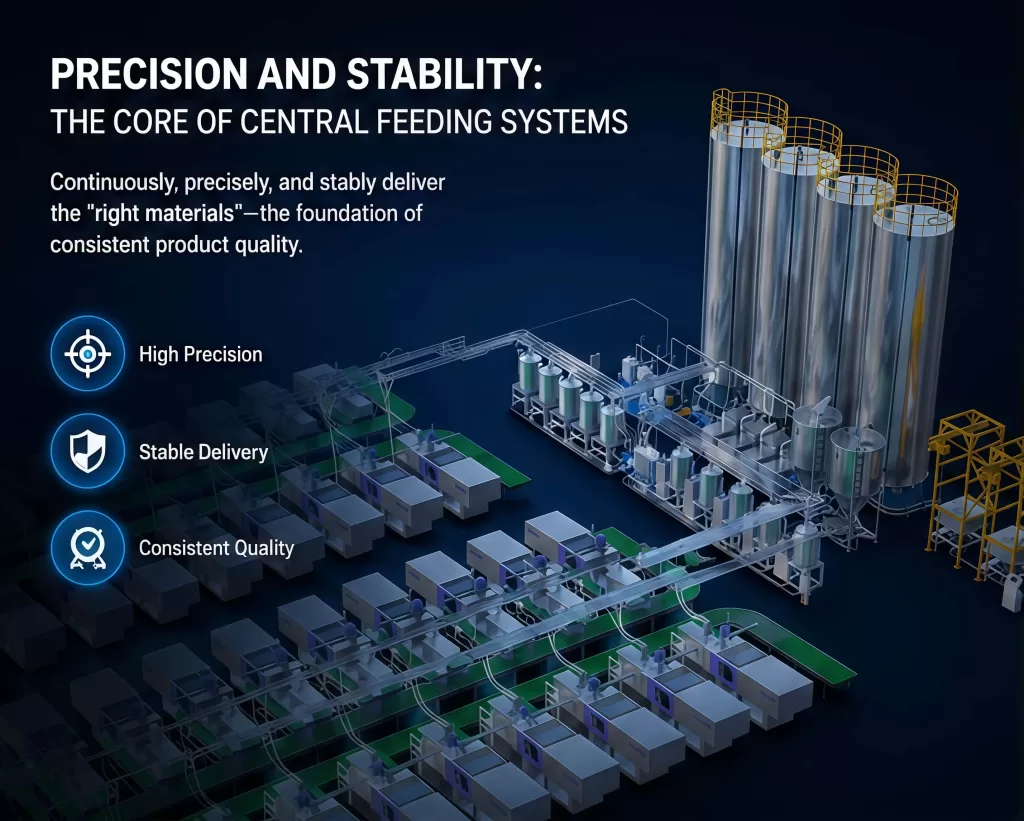

Precision and Stability: The Core of Central Feeding systems

All other capabilities of a central feeding system—such as automation levels, energy efficiency, and environmental compliance—are built upon the ability to continuously, precisely, and stably deliver the “right materials.” Otherwise, even the most advanced automated feeding system will produce inconsistent results, thereby compromising the quality of downstream processes.

Precision in Central Feeding Systems

In automotive parts production, resins are rarely used directly in their raw form. Typically, color concentrates, UV stabilizers, impact modifiers, flame retardants, and glass fiber reinforcements must be blended with the base resin in strict proportions to meet the mechanical properties and aesthetic requirements of each component. Any error in the mix ratio can lead to color variations in parts, reduced impact resistance, changes in surface finish, or even mechanical properties that fall outside the specified tolerance range.

Topstar’s central feeding system addresses this challenge through technologies such as automatic material selection stations and weighing and metering machines, ensuring that material ratios remain within acceptable limits during continuous production. Regardless of variations in bulk density, ambient humidity, or batch characteristics, the system guarantees that the mixed material entering each injection molding machine meets the target specifications.

Precision and Stability The Core of Central Feeding systems

Operational Stability of the Central Feeding Systems

Operational stability is another key pillar of this system. If an automatic material feeding system can only achieve precise mixing ratios intermittently, it cannot meet the high demands for process reliability in automotive production. Topstar’s central feeding system ensures operational stability through robust mechanical design, optimized speed control for conveying, and intelligent monitoring of key system parameters.

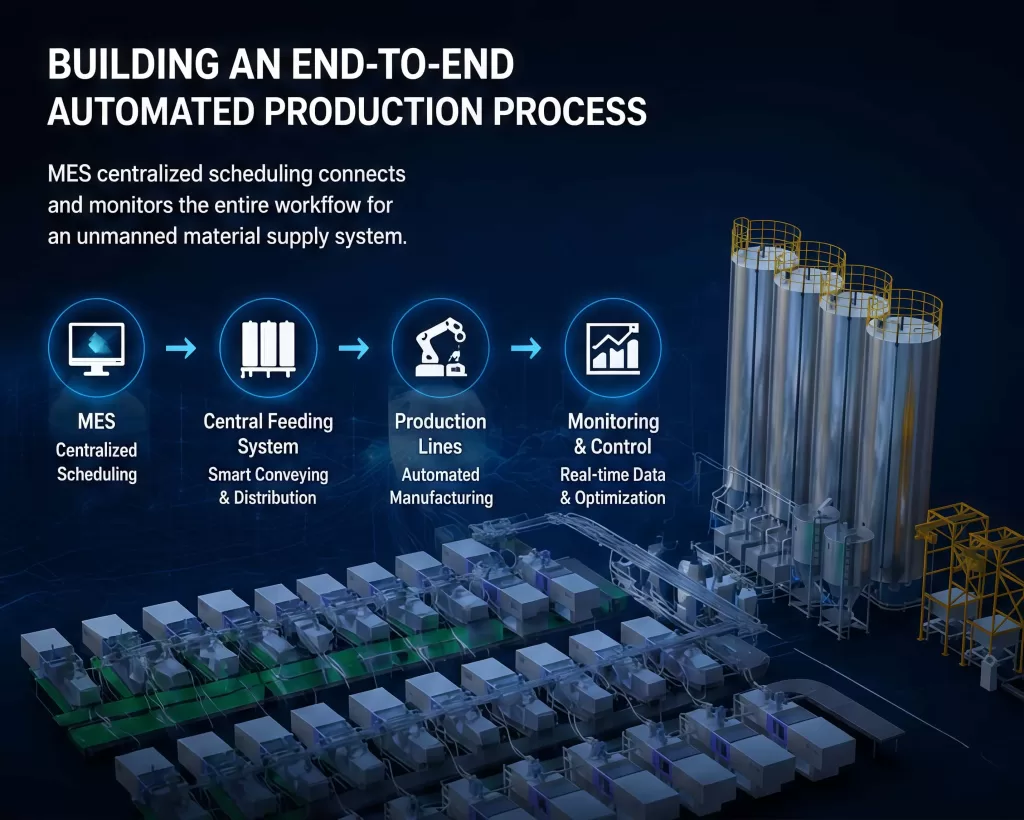

Building End-to-End Automated Production

In automotive parts manufacturing plants, localized automation alone often fails to resolve related issues or maximize efficiency. Therefore, to truly establish an end-to-end unmanned
In a central feeding system, it is necessary to monitor the entire production process through central dispatch via the MES, with unified control and coordination.

Centralized MES Scheduling

The Topstar central feeding system uses the MES’s centralized scheduling function to directly interconnect material supply operations with production plans, equipment status data, and the quality management system. Serving as the intelligent core layer, the MES coordinates every aspect of the automatic material feeding system in response to real-time production demands. This includes seamless integration with intelligent warehousing, AGV transportation, robotic automatic feeding, intelligent dehumidification and drying systems, automatic material change stations, and more. Once a production order is released, the MES automatically identifies the required material types, quantities, delivery timing, and destination machines, then launches the entire workflow without requiring operators to issue step-by-step instructions.

The MES triggers and monitors the entire switching process from start to finish. As a result, it creates a fully unmanned, end-to-end material supply chain, controlling and tracking every material handling operation—from the warehouse all the way to the injection molding machine—while ensuring that every step follows the same standardized procedures.

Building End-to-End Automated Production

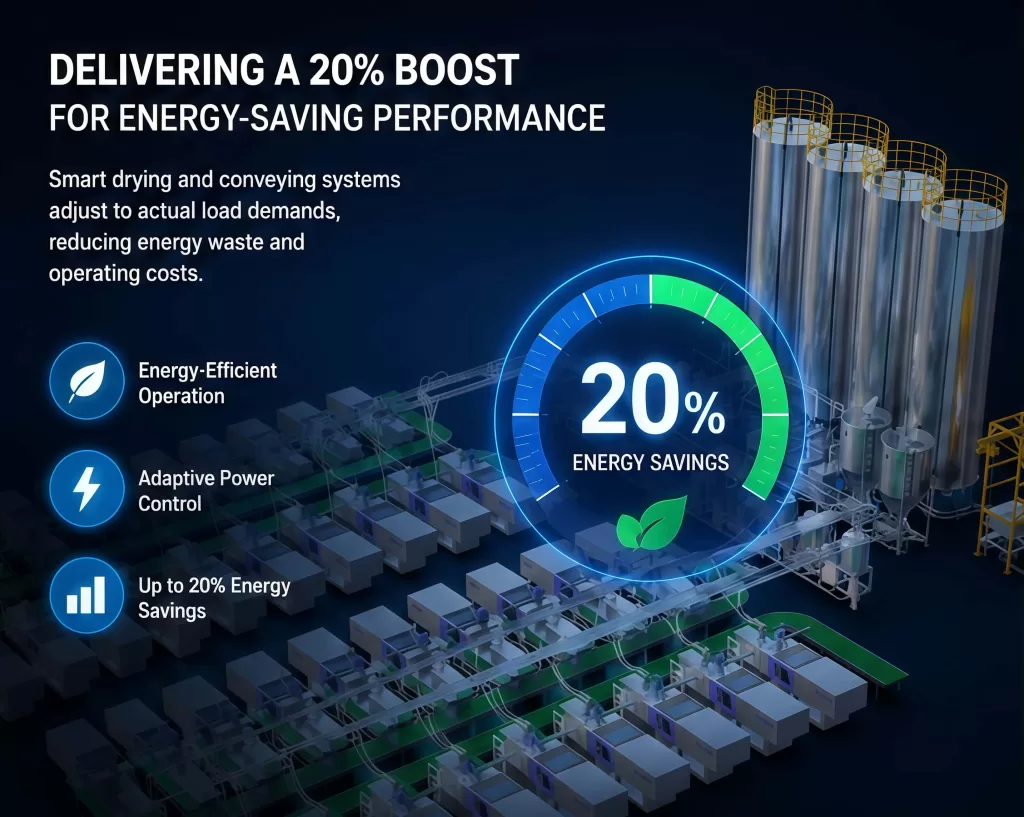

Delivering 20% Energy Savings for Automotive Parts Factories

In any factory, energy consumption is one of the highest operating costs. The drying and conveying processes are the two biggest energy consumers in material handling systems; they must operate continuously to support multi-shift production schedules, and the resulting energy costs accumulate over time. Traditional drying and dehumidification systems typically run at a fixed power level and cannot adjust to actual production demands. As a result, they often waste energy whenever production drops below full capacity or during periods such as mold changes, scheduled maintenance, and routine breaks.

Intelligent Variable-Frequency Drying and Energy-Efficient Variable-Frequency Conveying

Topstar’s automatic material feeding system enhances energy efficiency on the shop floor through two complementary technologies: intelligent variable-frequency drying and energy-efficient variable-frequency conveying.

Intelligent variable-frequency drying technology uses variable-frequency drives to control the heating and airflow systems of central dryers, continuously adjusting input power based on the actual drying load.

  • When production rates are high and material throughput reaches its peak, the dryer operates at full load.
  • When throughput decreases, the variable-frequency control system proportionally reduces both heating power and airflow intensity;

This dynamic power-matching mechanism, based on real-time load monitoring and temperature feedback, eliminates the energy waste caused by fixed power input in traditional drying systems.

Energy-saving variable-frequency conveying technology applies the same principle to the central material conveying network. Conveying fans and vacuum generators no longer operate at a fixed maximum output power but continuously adjust their rotational speed based on demand. While ensuring reliable conveying, this approach avoids the excessively high flow rates, pressures, and turbulence caused by excessive power in fixed-speed systems.

The combined use of these two variable-frequency technologies can achieve energy savings of over 20% compared to traditional fixed-power drying and conveying systems.

Delivering 20% Energy Savings for Automotive Parts Factories

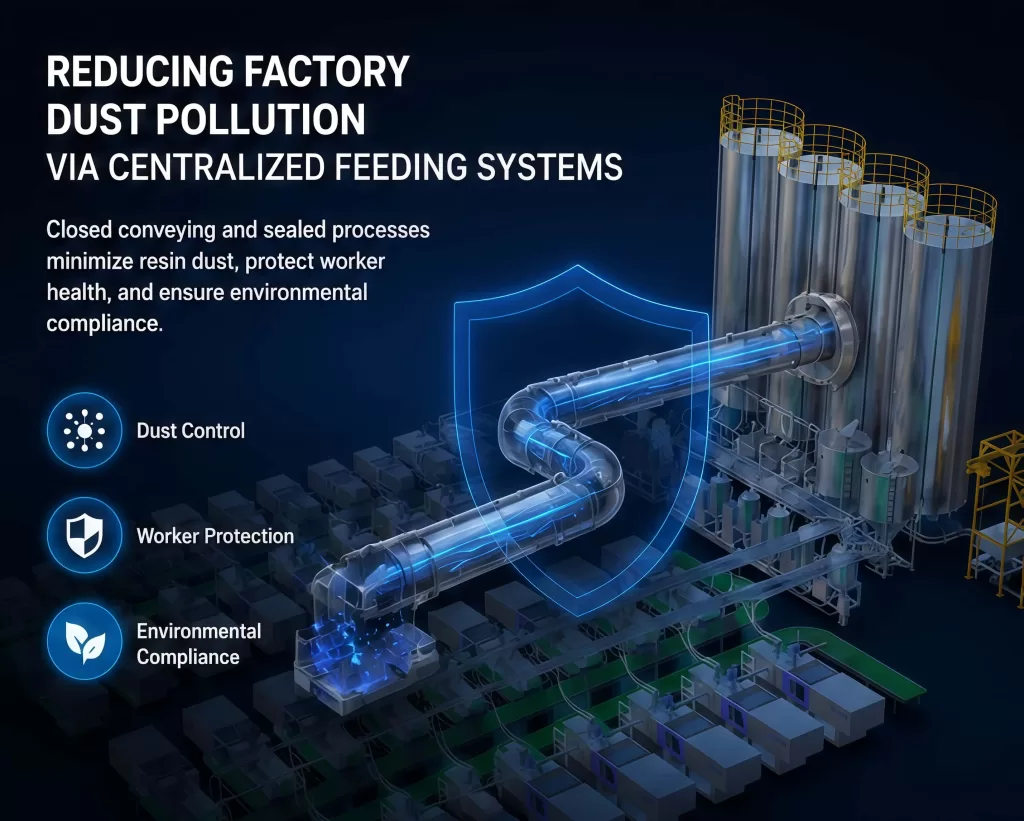

Reducing Dust Pollution in Factories Through Centralized Material Supply Systems

In modern automotive parts manufacturing plants, environmental performance has become an indispensable characteristic alongside energy efficiency. Resin dust generated during material conveying, feeding, metering, and mixing poses a threat to worker health and presents challenges for environmental compliance. If not effectively captured, fine polymer particles dispersed into the workshop air may not only exceed occupational exposure limits and result in regulatory violations but also pose secondary quality risks when they settle on mold surfaces or material handling equipment.

Reducing Dust Pollution in Factories Through Centralized Material Supply Systems

Centralized Dust Collection in Central Feeding Systems Reduces Dust Pollution

Decentralized material handling systems are inherently difficult to design for effective dust control. Each hopper, mixer, and conveyor line acts as a separate dust source; the cumulative effect of numerous independent dust sources within a large production facility results in elevated airborne particulate concentrations, which localized “point-of-use” extraction systems often struggle to control effectively.

Topstar’s centralized material supply system integrates centralized dust collection directly into the material conveying architecture. Rather than attempting to capture dust at numerous independent generation points, it consolidates material-handling operations at a central station. It uses a high-capacity dust-collection system to efficiently capture particulate matter from all sources simultaneously.

This centralized dust-collection architecture ensures that airborne particulate concentrations throughout the workshop consistently remain below environmental and occupational health standards. For automotive parts suppliers operating under specific certification frameworks—such as the environmental requirements of ISO 14001 and IATF 16949—this reliable environmental compliance capability not only helps ensure regulatory compliance but also meets the requirements of major automotive customers regarding suppliers’ audit readiness.

Automated Central Feeding Systems for the Automotive Industry and Beyond

A key distinction between a truly mature central material supply system and application-specific solutions is the former’s ability to serve a wide range of industries and manufacturing processes without requiring a fundamental redesign. Topstar’s centralized feeding solutions have not only been successfully applied in the manufacturing of various automotive components. Still, they are also widely used in home appliances, 3C electronics, medical devices, and other precision manufacturing sectors. This architectural flexibility, process adaptability, and versatility make it an intelligent, multifunctional platform that manufacturers can uniformly adopt across various production environments, thereby maximizing the return on their infrastructure investments.

Process Upgrades Enhance Factory Competitiveness

The high precision and stability, end-to-end automation, innovative energy-efficiency optimization, and broad applicability of central material supply systems have transformed the decentralized, labor-intensive production models that are still prevalent in most factories today. From multiple perspectives, when Topstar’s central material system replaces traditional material-handling methods, labor productivity, material utilization, energy costs, quality consistency, environmental compliance, and production flexibility improve.
