How Does a Microchannel Condenser Improve Heat Transfer in an Air-Cooled Chiller System?

2026/10/07 By le zhan

How Does a Microchannel Condenser Improve Heat Transfer in an Air-Cooled Chiller System

Microchannel condensers improve the heat-exchange performance of air-cooled chiller system by distributing refrigerant across multiple microscopic channels and using a compact tube-fin structure with a large effective heat-exchange area. This design transfers heat more efficiently from the refrigerant to the surrounding airflow while reducing the condenser’s size and maintaining the same cooling capacity. Topstar’s air-cooled chillers use microchannel condensers, which reduce the unit’s size by 20% and increase heat-exchange efficiency by 20%, enabling faster, more efficient cooling.

How Do Microchannel Condensers Enhance Heat Transfer?

In air-cooled chiller systems, the condenser performs a critical function: transferring the heat carried by the refrigerant to the surrounding air. The compressor delivers high-temperature, high-pressure refrigerant to the condenser, while the fan drives air through the heat exchanger. As the refrigerant releases heat, it condenses and continues circulating through the refrigeration cycle.

The efficiency of this process depends largely on how effectively the condenser facilitates heat transfer between the refrigerant side and the air side.

Microchannel condensers use multiple tiny refrigerant channels rather than a limited number of large-diameter pipes. These tiny channels distribute the refrigerant across a broader heat-exchange structure, increasing the contact area between the refrigerant, the tube walls, the fins, and the cooling air.

The result is a shorter, more efficient heat transfer path:

Refrigerant → Microchannel tube wall → Fins → Forced airflow → Ambient air

This principle applies particularly to air-cooled chillers because air has a lower heat-transfer capacity than water. Therefore, the condenser must expose as much effective heat-transfer surface area as possible to the flowing air without making the unit excessively large.

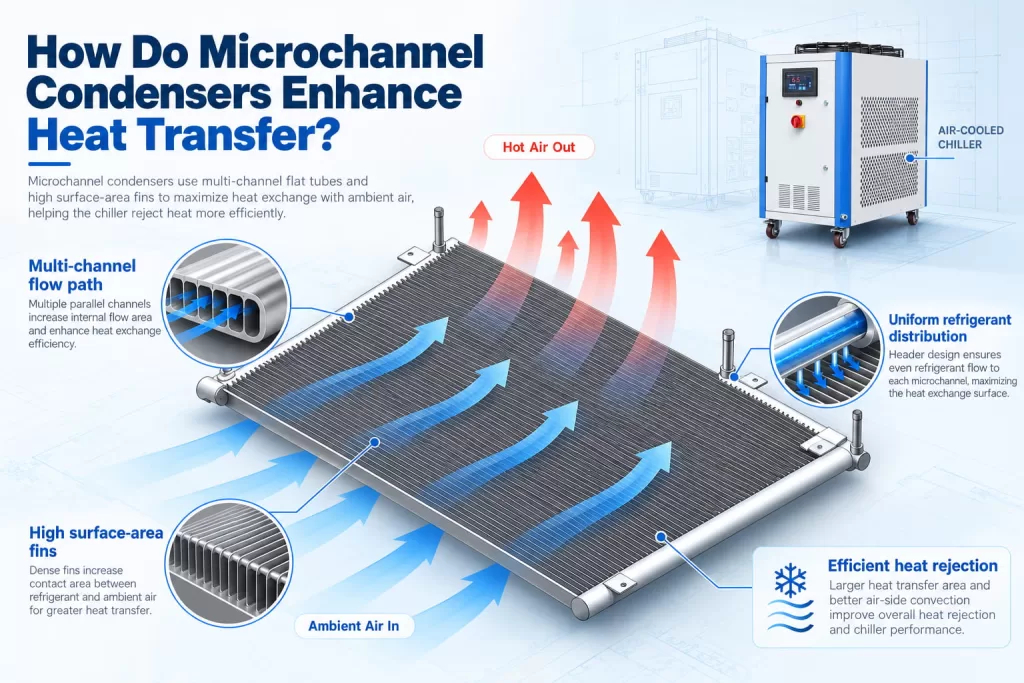

How Do Microchannel Condensers Enhance Heat Transfer

Why do smaller flow channels and fin designs improve the heat transfer efficiency of an air-cooled chiller System?

The term “microchannel” does not mean that smaller flow channels necessarily improve cooling performance; the improvement comes from the overall heat exchanger design.

First, multiple tiny refrigerant flow channels create an extremely high surface-to-volume ratio. With more refrigerant in close contact with the tube walls, the distance heat must travel from the refrigerant to the metal surface decreases. Second, flat, multi-channel tubes provide a wide contact interface for the fins. Consequently, heat can travel from the refrigerant through the tube walls to the larger surface area of the fins, where it is then carried away by the airflow. Third, the well-designed louver-style fins provide more surface area to contact the flowing air.

These factors work together to deliver superior heat dissipation:

More effective refrigerant contact + shorter heat-transfer path + larger effective heat-exchange area on the air side = superior heat dissipation in a compact condenser.

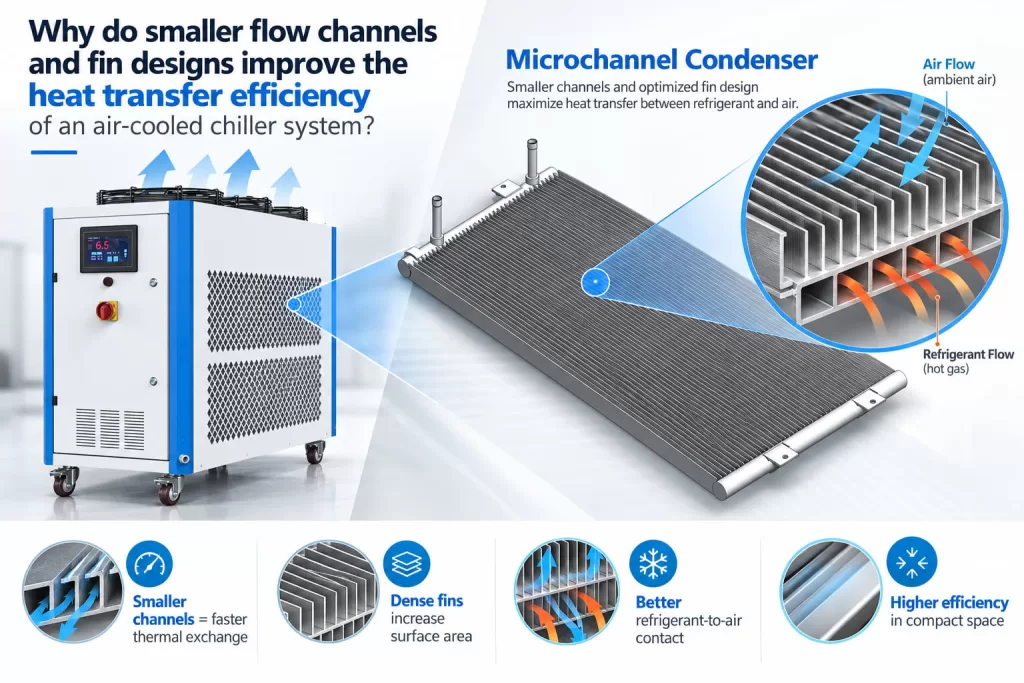

Why do smaller flow channels and fin designs improve the heat transfer efficiency of an air-cooled chiller System

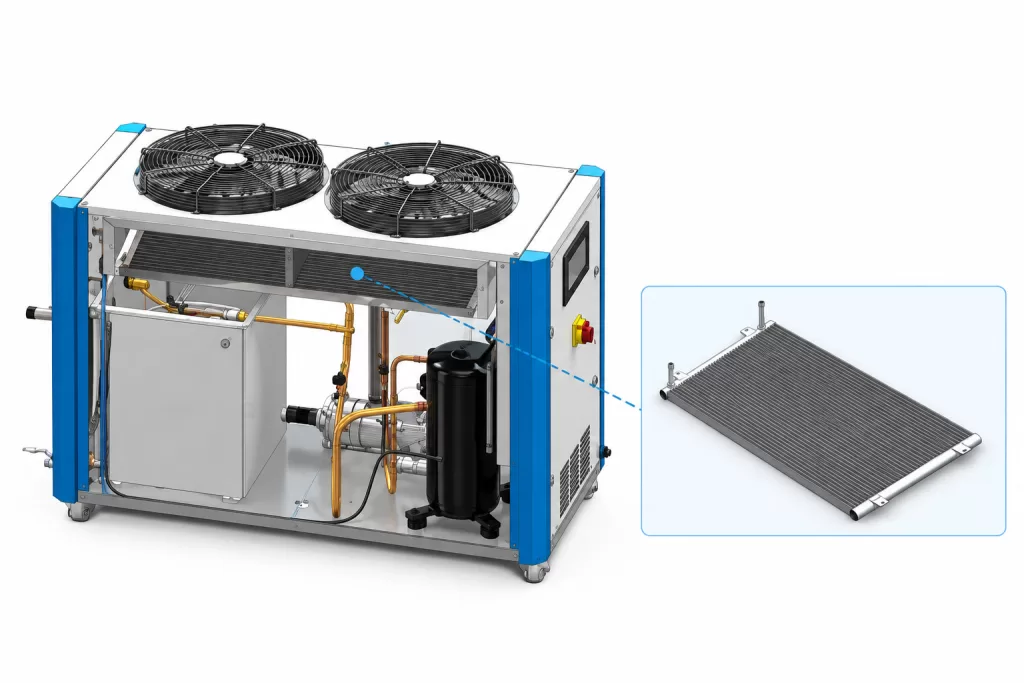

How Do Microchannel Condensers Reduce the Overall Size of Air-Cooled Chiller System?

Another major advantage of microchannel technology is its higher heat-transfer efficiency in a more compact condenser design. With traditional heat exchangers, increasing heat dissipation typically requires larger coils or more heat transfer surface area. This increases the space required for the condenser, which in turn leads to larger overall dimensions for air-cooled chillers.

Microchannel technology increases effective heat transfer capacity within a compact core structure. This means the condenser can meet thermal performance requirements without occupying as much space as traditional designs. By adopting microchannel condensers, Topstar has reduced the volume of its air-cooled chillers by about 20% while improving heat-transfer efficiency by 20%.

These auxiliary devices are typically installed alongside equipment such as injection molding machines, material handling equipment, mold temperature controllers, and circulation piping. Reducing the equipment’s footprint gives engineers more flexibility in planning production areas.

Why do smaller flow channels and fin designs improve the heat transfer efficiency of an air-cooled chiller System
Topstar’s Air-Cooled Chiller

How Do Airflow and Heat Dissipation Space Affect Performance?

Airflow is another key factor in microchannel condenser performance. Although the refrigerant efficiently transfers heat to the condenser fins, air must ultimately carry that heat away. If fan airflow is insufficient, or if exhaust air recirculates back to the condenser’s air inlet, the effective temperature difference available for heat dissipation decreases.

Therefore, a condenser’s heat-exchange capacity depends not only on the heat exchanger itself but also on airflow volume, air velocity, inlet air temperature, and the space available for heat dissipation.

Based on this, air-cooled chillers must meet the following conditions in practical applications:

  • Ensure sufficient fan airflow through the condenser;
  • Keep the air intake unobstructed;
  • Allow sufficient space for hot air to be exhausted;
  • Maintain an appropriate distance from walls or equipment that may obstruct airflow;
  • Prevent the backflow of hot air.

Therefore, the core heat transfer principle of microchannel condensers air-cooled chillers lies in the following: the microchannel structure and optimally designed fins increase the effective heat transfer area and shorten the heat conduction path, enabling a more compact condenser structure to dissipate more heat; meanwhile, sufficient airflow is responsible for carrying this heat away from the unit.

Reduced Size Leads to Improved Heat Transfer Efficiency

From the discussion above, we can conclude that:

The microchannel structure improves heat transfer between the refrigerant and the fins → Compact fins effectively transfer heat to the airflow → Adequate airflow carries the heat away → Consequently, the chiller achieves higher heat transfer performance within a more compact unit size.

This is the principle behind how microchannel condensers enhance the heat transfer performance of air-cooled chiller systems: they not only reduce the condenser’s volume but also improve heat transfer efficiency per unit of condenser space while ensuring the airflow required for reliable heat dissipation. For Topstar’s air-cooled chillers, this design delivers outstanding results, reducing unit volume by 20% while increasing heat transfer efficiency by 20%.
