How Does Integrated Piping Design Prevent Leaks in Mould Temperature Control Systems?

2026/10/05 By le zhan

How Does Integrated Piping Design Prevent Leaks in Mould Temperature Control Systems

The integrated piping design uses a more compact, monolithic flow path to replace the previously dispersed pipe sections, fittings, welds, and connection points in the mould temperature control systems, effectively reducing the risk of leaks. Fewer connection points also minimise potential seal weak points during repeated heating, cooling, pressure fluctuations, and long-term cyclic operation. Topstar mould temperature controllers use an integrated piping structure design that optimises internal space utilisation while reducing potential leak points. This design also reduces pressure loss, improves heating uniformity, and simplifies inspection and maintenance during continuous injection moulding production.

Why does reducing piping connections lower the risk of leaks in mould temperature control systems?

During production, piping is subjected to temperature fluctuations, internal pressure, pump vibrations and repeated thermal expansion and contraction. Under these operating conditions, every connection point can become a potential leak point.
Traditional piping layouts may involve many elbows, threaded joints, welded sections, flanges, valves, and sealed interfaces. Each additional connection point adds another sealed area that must remain reliable through repeated thermal cycles.

From a technical design perspective, the logic is very simple:

More connection points → More sealed interfaces → More potential leak points.

Integrated piping design, however, transforms this structure. Rather than assembling numerous independent pipe sections, it consolidates flow paths into fewer integrated components. This reduces the number of joints that must withstand temperature and pressure fluctuations. This monobloc casting structure, combined with specific welding techniques, minimises weld seams and reduces leakage risk. This design aims not only to improve the piping’s appearance; it also eliminates unnecessary interfaces that could lead to leaks.

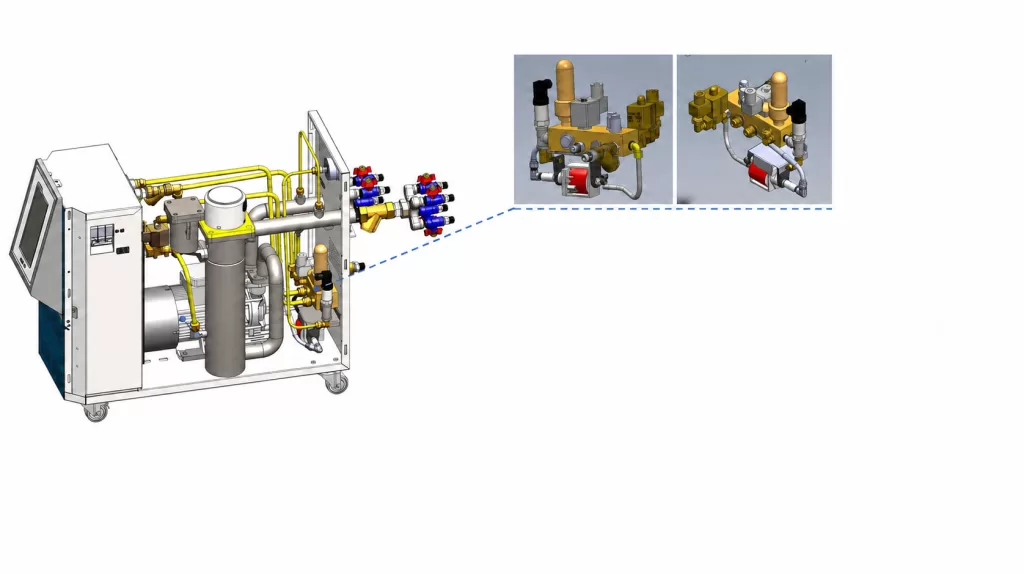

Integrated Piping Design
Reference for Topstar Mold Temperature Controller Integrated Piping Design

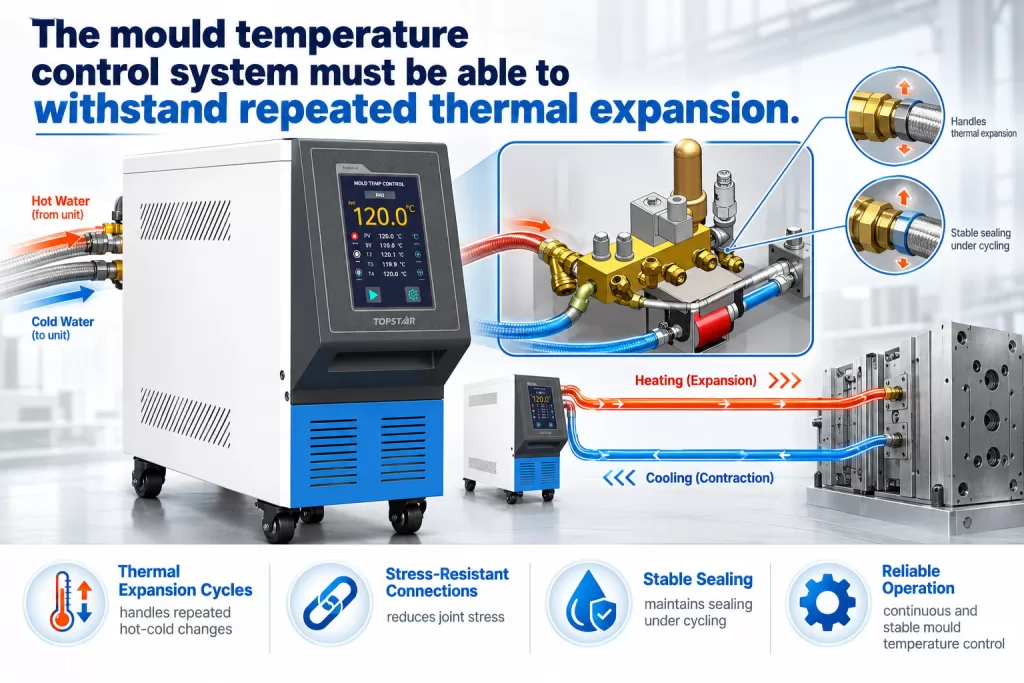

The mould temperature control system must be able to withstand repeated thermal expansion

As the operating temperature rises, leak prevention becomes increasingly important. When the heat transfer medium and metal pipework heat up, they expand; when they cool, they contract. This repeated expansion and contraction stresses pipe joints and sealing surfaces, particularly when multiple independently connected components respond inconsistently to temperature changes.

A more integrated piping configuration reduces the number of joints exposed to these repeated stresses. This helps to maintain the integrity of the circulation loop during prolonged production runs and repeated heating and cooling cycles.

The mould temperature control system must be able to withstand repeated thermal expansion

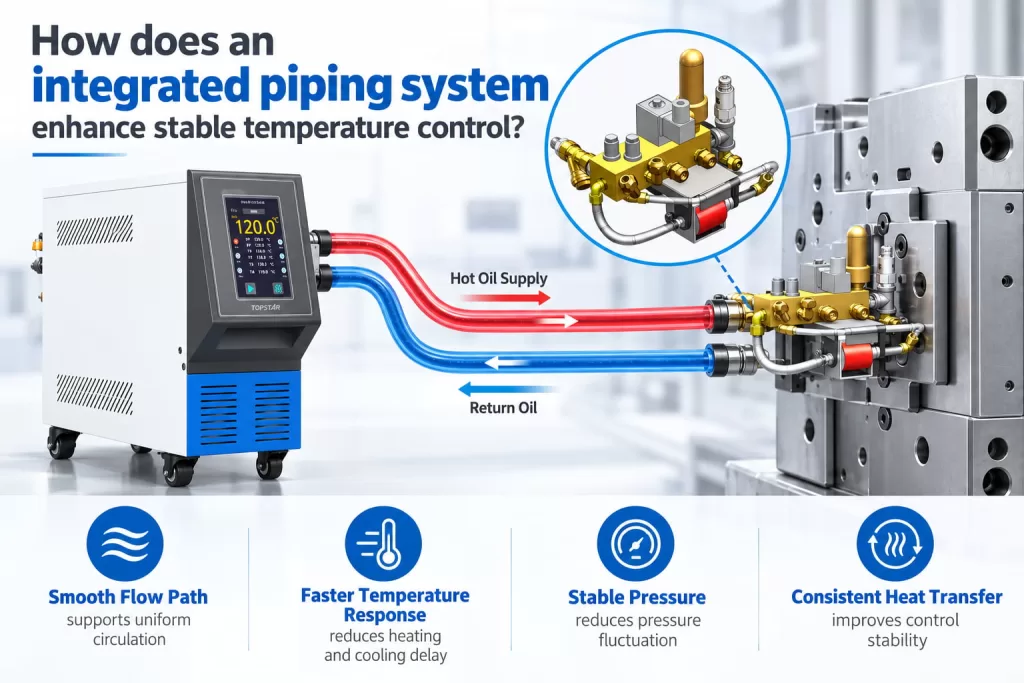

How does an integrated piping system enhance stable temperature control?

The impact of piping design extends far beyond leak prevention; it also directly affects how efficiently the temperature control unit circulates the heat transfer medium.

Unnecessary bends, changes in pipe diameter, narrow joints, or poorly laid-out connections create fluid resistance. Excessive resistance leads to pressure loss, which reduces the effective flow rate delivered to the mould. This is because heat transfer depends on the stable flow of the circulating medium. If the flow rate in a particular circuit is insufficient, the system cannot remove or add heat at the expected rate; this may increase temperature differences across different areas of the mould, reducing the consistency of process control.

Integrated piping offers three key practical advantages:

  • Reduced unnecessary changes in flow direction;
  • Lower fluid resistance within the internal circulation circuit;
  • Ensured more stable and uniform delivery of the heating or cooling medium to the mould circuit.

These advantages strongly support PID control, as temperature-control software can respond effectively and make adjustments to achieve stable temperature control only when the physical circulation circuit remains stable.

How does an integrated piping system enhance stable temperature control

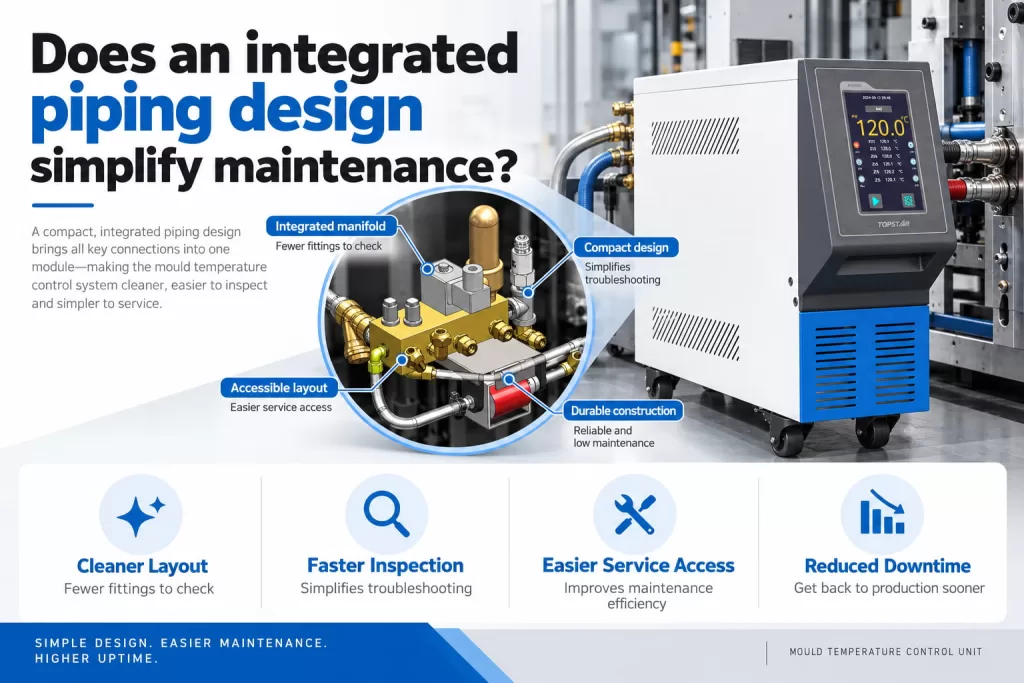

Does an integrated piping design simplify maintenance?

Leak prevention is only one aspect of long-term equipment reliability. A mould temperature control system design should also enable technicians to efficiently locate, inspect, and maintain individual components. If the piping system is assembled from many separate pipes and fittings, the interior of the cabinet can become crowded and cluttered. More components mean more connection points to inspect, and less available working space.

An integrated, modular piping design effectively reduces this complexity.

By consolidating the main flow path into fewer components, the internal layout becomes more compact and organised. This not only improves space utilisation but also ensures components requiring regular inspection or replacement have a clearer, more accessible working area. Topstar incorporates integrated piping and maintenance-friendly cabinet designs into all its existing mould temperature controller to minimise potential leak points and reduce maintenance time.

Maintenance becomes significantly easier when the piping layout clearly separates the main circulation circuit from the electrical and control components.

Does an integrated piping design simplify maintenance

Reducing the Risk of Leaks and Improving Space Utilisation

Mould temperature control systems with an integrated piping design primarily prevent leaks by reducing the number of joints, welds, fittings, and sealed interfaces in the circulation circuit. Fewer connection points mean fewer potential risk points where seals may fail and cause leaks due to thermal expansion and contraction, pressure fluctuations, vibration or long-term operation.

By consolidating the main flow path into a compact, integrated structure, the mould temperature controller not only shortens the piping length and reduces flow resistance but also improves internal space utilisation, thereby creating a simpler, more stable and easier-to-inspect circulation system.

From a practical application perspective, the logic behind leak prevention is very clear:

Fewer joints → Reduced risk of seal failure → Lower probability of leakage → More reliable mould temperature control

The integrated modular piping design is not merely intended to save space; it is a structured design approach that reduces potential leakage points at the source and enhances the long-term reliability of the entire mould temperature control system.
