When production processes involve medium-to-large parts, embedding, stacking part extraction, palletizing, or non-standard handling tasks, an injection molding robot is no longer merely performing simple motion tasks. It must bear actual physical loads, withstand cyclical stresses, and simultaneously safeguard both the mold and the parts. Consequently, an injection molding robot suited for high-load extraction requires the ability to maintain precision under pressure, ensure motion stability during high-speed movements, and support flexible automation integration. Our MBW series injection molding robots feature aluminum-profile robotic arms, a cylinder-free design, a high-rigidity structural frame, a dual-stage dual-guide rail system, and intelligent configuration capabilities, making them ideally suited for high-load applications such as part extraction, insert molding, sprue cutting, and palletizing.

How Do Injection Molding Robot for High-Load Scenarios Differ?

While both injection molding robots performing light-part extraction and those operating in high-load scenarios require automation, the mechanical stresses, cyclical pressures, and process sensitivities involved are vastly different. In high-load environments, an injection molding robot must not only complete the task of extracting parts but also maintain stability while moving heavier loads, preserve precision while resisting vibration, and respond rapidly to prevent overshoot or misalignment.

If the structure is too lightweight, it may flex under load; if the driving force is too weak, motion speeds may slow down or become unstable. This is why standard take-out robots are often insufficient to meet these requirements. So, we have designated our injection molding robots designed for high-load extraction scenarios as a distinct product series. Their design is engineered not only to support heavy-duty extraction but also to satisfy the specific requirements for force, timing, and repetitive precision demanded by heavy-duty manufacturing operations.

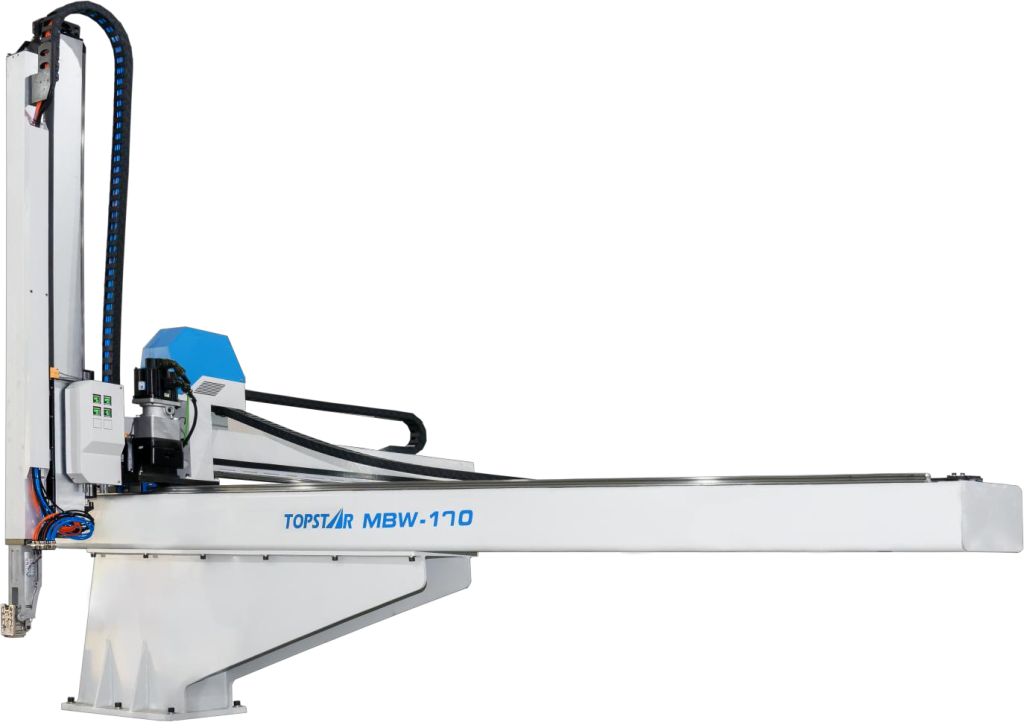

Injection Molding Robot for High-Load Scenarios

Injection Molding Robot with High-Rigidity Structures

Robots designed to carry heavier loads must be more effective at resisting structural deformation. If the robotic arm flexes excessively, positioning accuracy will be compromised; if frame vibration is too severe, parts may not be extracted cleanly; and if the robot’s return-to-home position is unstable, the entire mold cycling process becomes unstable.

Topstar’s MBW series features a specially engineered, high-rigidity structural design. This rigid structure allows the robot to return reliably to the same mechanical state after every motion cycle, thereby providing a more stable operational foundation for the control system. This capability enables the robot to maintain precision while handling heavier loads, minimizes the potential for positional drift, and facilitates more reliable interaction with both the injection mold and downstream equipment. High-rigidity take-out robots are also better equipped to withstand the repetitive impacts and dynamic stresses commonly encountered in automotive and home appliance manufacturing.

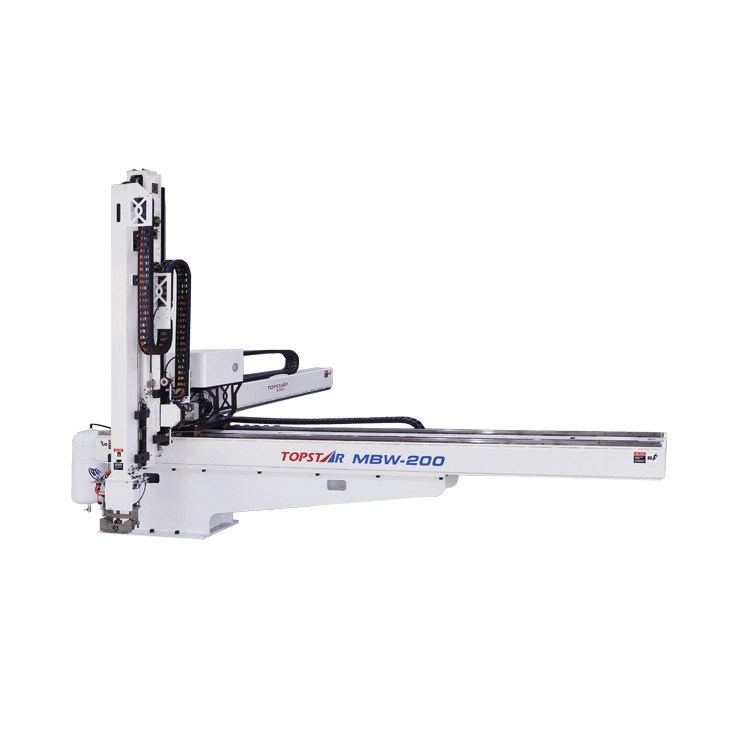

AC-Servo-Injection-Robots-MBW-200

Injection Molding Robot with High Load Capacity and High Power Output

Robots designed for light-load extraction are insufficient for the gripping and handling of large-sized parts. High-load scenarios involve long strokes, tilting movements, insert placement, and repetitive acceleration and deceleration actions that place significant stress on the robot. Topstar’s MBW series of injection molding robots boosts power output by 30% and load capacity by 20%, directly enhancing their capability to handle heavier workpieces. Simultaneously, they maintain the response speeds required for stable cyclic operation, resulting in faster and more robust performance.

Aluminum Profile Arms and Cylinder-Free Design

The MBW series injection molding robots feature aluminum alloy profile arms and a cylinder-free design; in high-load scenarios, this combination endows the robots with a more robust and efficient motion structure. The aluminum alloy arms strike a perfect balance between weight and rigidity, while the cylinder-free structure reduces unnecessary complexity and facilitates faster, more responsive movements. This design ensures the extraction robots remain highly practical and effective on actual production lines. Faster and more powerful take-out robots boost production efficiency while maintaining the precision required for extraction and insertion operations.

Aluminum Alloy Profiles

Dual-Stage, Dual-Guide Rail Structure: Stable and Durable Operation

The MBW series employs a dual-stage, dual-guide rail structure to enhance both stability and durability. This design ensures a safer motion trajectory for the robot and minimizes the risk of vibration or deflection during movement. In high-load scenarios, injection molding robots must constantly balance speed with force. When moving medium-to-large parts or performing insert operations, the robot’s motion path must remain linear and predictable.

The dual-guide rail structure helps the robot resist lateral loads, maintaining stable positioning even under demanding conditions. In repetitive gripping cycles, less stable systems may experience accelerated wear or require more frequent adjustments. The MBW series mitigates this risk by distributing motion loads more effectively, thereby ensuring more stable operation.

High-Precision Positioning Modules for Insert Molding and Custom Insert Applications

In high-load and custom insert molding scenarios, the robot not only extracts parts but also places, aligns, or inserts them with high precision. The high-precision positioning module employed in the MBW series makes it particularly well-suited for insert molding and other non-standard operations. Handling heavy loads typically increases the difficulty of achieving precise positioning; the robot must maintain exact positional control while simultaneously moving heavier payloads. Even a slight positional deviation can lead to insertion failures, excessive stress on the mold, or damage to the parts. So, the high-precision positioning module supports the entire motion cycle by enhancing accuracy, thereby helping to prevent these issues from occurring.

Industry Applications for the MBW Series

MBW series robots are designed for processing workflows involving medium-to-large workpieces or heavy loads. They are especially suitable for industries such as automotive components, home appliances, part extraction, insert molding, gate cutting, and palletizing. In automotive parts production, the MBW series can handle large injection-molded components, performing stable extraction and precise transfer operations. In home appliance manufacturing, it can effortlessly extract panels, housings, or structural components. This broad scope of application makes the series ideal for factories seeking to implement standardized automation across multiple production lines; a single MBW series injection molding robot optimized for heavy-load extraction scenarios can effectively meet the requirements of a diverse range of processing workflows.

FeatureConventional RobotMBW Series Injection Molding RobotBenefit
Power OutputStandard+30% increaseHandles heavier loads with stability
Load CapacityLimited+20% increaseSuitable for medium-to-large parts
Arm StructureTraditionalAluminum-profile armsBetter rigidity + lighter weight
Drive DesignCylinder-basedCylinder-free designFaster response, less maintenance
Guide SystemSingle railDual-stage dual-guide railHigher stability and durability
I/O CapacityLimited8 suction + 8 gripping channelsSupports complex automation
Positioning AccuracyStandardHigh-precision moduleIdeal for insert molding
ProgrammingGenericDedicated instructionsEasier customization

Faster Operation and Enhanced Structural Stability

In heavy-load scenarios, an injection molding robot must not only be capable of handling parts but also possess the structural integrity to support significantly heavier payloads. Featuring aluminum alloy manipulator arms, a cylinder-free structural design, dual-stage guide rails, precise positioning capabilities, and specialized programming support, the MBW series injection molding robots can be effortlessly deployed in industries such as automotive and home appliances to execute processes including extraction, insert placement, gate cutting, and palletizing involving medium-to-large workpieces or heavy-load conditions.
