How Does 0.3 μm Filtration Reduce Dust Contamination in Optical Injection Molding?

2026/10/19 By le zhan

How Does 0.3 μm Filtration Reduce Dust Contamination in Optical Injection Molding

The 0.3 μm filter achieves up to 99.97% particulate capture efficiency and complies with EU EN 1822. In the three-in-one dehumidifying dryer, the 0.3 μm filtration protects the resin during drying, storage, and conveying by filtering process air and reducing dust contamination in optical injection molding production. Topstar’s TCDH-S optical-grade dehumidifying dryer is equipped with this type of filter in its conveying and drying circuits. By combining high-efficiency filtration with a closed-loop material-conveying system, it effectively reduces airborne particulate contamination.

How 0.3 μm Filtration Protects Resin from Dust Contamination？

In the optical injection molding process, dust contamination primarily arises through two pathways:

  1. Airborne particles entering with the process airflow;
  2. Particles introduced or generated during material conveyance.

A 0.3 μm high-efficiency filter addresses the first source of contamination by capturing airborne particles in the process airflow. However, it cannot prevent contamination caused by open feed ports, leaks at connections, or internal friction within the conveying system. Therefore, effective dust control requires two complementary measures: filtering the process airflow and protecting the resin throughout the entire material conveying circuit.

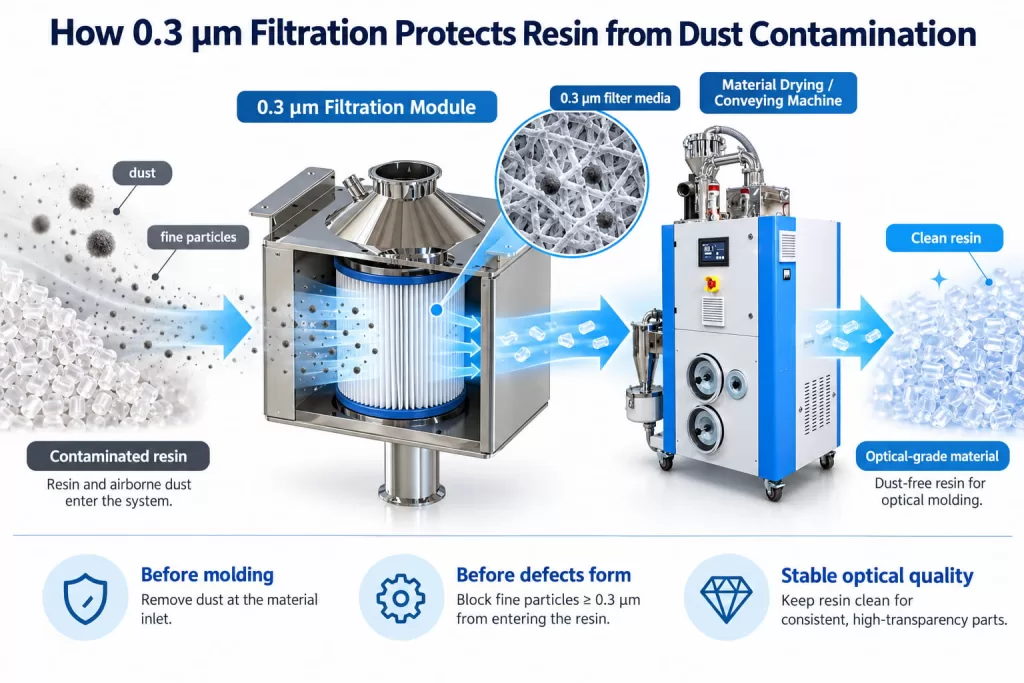

How 0.3 μm Filtration Protects Resin from Dust Contamination？

How does 0.3 μm filtration remove dust particles from the air?

A 0.3 μm HEPA filter reduces airborne particle contamination by capturing particles carried in the process airflow. Topstar equips its TCDH-S optical-grade dryers with this 0.3 μm filter, which complies with the EN 1822 standard and achieves up to 99.97% particle capture efficiency. (See the overview of the EN 1822 standard for details)

In optical injection molding, the practical benefit is cleaner process airflow and a reduced risk of resin contacting airborne dust. However, filter efficiency and overall system cleanliness are two distinct concepts. Even with a 0.3 μm HEPA filter, you can’t prevent particles from entering the dryer through damaged seals or from new particles generated downstream in the system.

Therefore, fine filtration alone cannot control airborne contamination. Proper installation and clean material-handling components also help maintain this level of cleanliness.

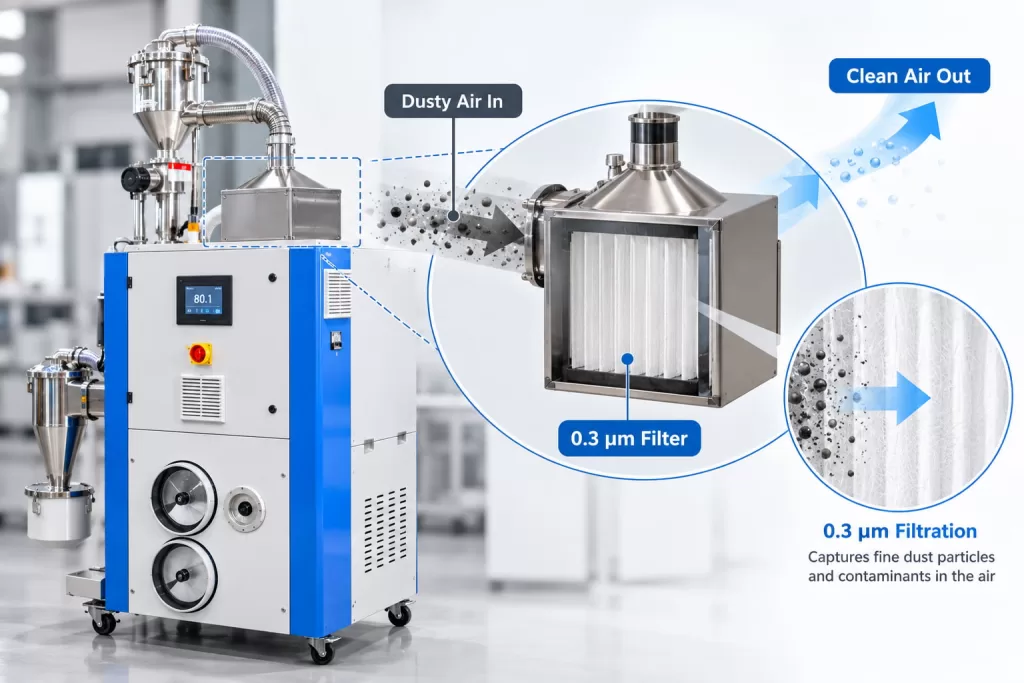

How does 0.3 μm filtration remove dust particles from the air

How to Combine This with Dust-Controlled Material Conveyance?

Even when filters clean the process airflow, dust can still enter the resin conveying circuit through open feed ports, poorly sealed connections, or residue that builds up inside hoppers and conveying pipes. Friction between resin particles and pipe walls during conveyance can also generate fine particles.

These risks show that air filtration alone is not enough. Manufacturers must protect the material after filtration and minimize contamination from within the conveying system. Topstar’s TCDH-S optical-grade dehumidifying dryer addresses these risks through sealed air ducts, optical-grade storage tanks, dust-collection hoppers, and wear-resistant PU conveying hoses.

Filtration technology with a 0.3 μm pore size captures airborne particles, prevents external dust from entering through the conveying circuit, and minimizes particle generation during material conveyance. By controlling these three key stages, the resin stays clean throughout drying and feeding, right up to the injection molding machine.

How to Protect Resin Throughout the Entire Optical Injection Molding Process?

Filtering the process air is only the first step. After the air has been filtered, the system must also ensure that dust does not re-enter during material storage, conveyance, and feeding. Therefore, an optical-grade compact 3-in-1 dehumidifying dryer should combine filtration with a sealed conveying system and controlled material-handling processes. This combination extends contamination protection beyond the filter, keeping the resin clean before it enters the injection molding machine.

Why Must 0.3 μm Filtration Be Used in Conjunction with a Sealed Conveyance Loop?

If the resin is exposed to dust-laden air after filtration, the filter can’t protect it. Therefore, an optical-grade compact three-in-one dehumidifying dryer requires a protected conveyance path to minimize the risk of secondary contamination.

Topstar’s TCDH-S series features high-efficiency filters installed in the conveyance and drying circuits. Seamless integration of high-efficiency filtration, sealed ductwork, and contamination-resistant conveying components reduces unnecessary friction between materials, limiting additional dust generation during conveyance. This creates a fully enclosed loop that prevents contamination of raw materials.

This establishes a more comprehensive contamination control process:

Filter particulates from the air → Maintain a sealed conveying path → Minimize dust generated by friction → Convey cleaner resin to the injection molding machine.

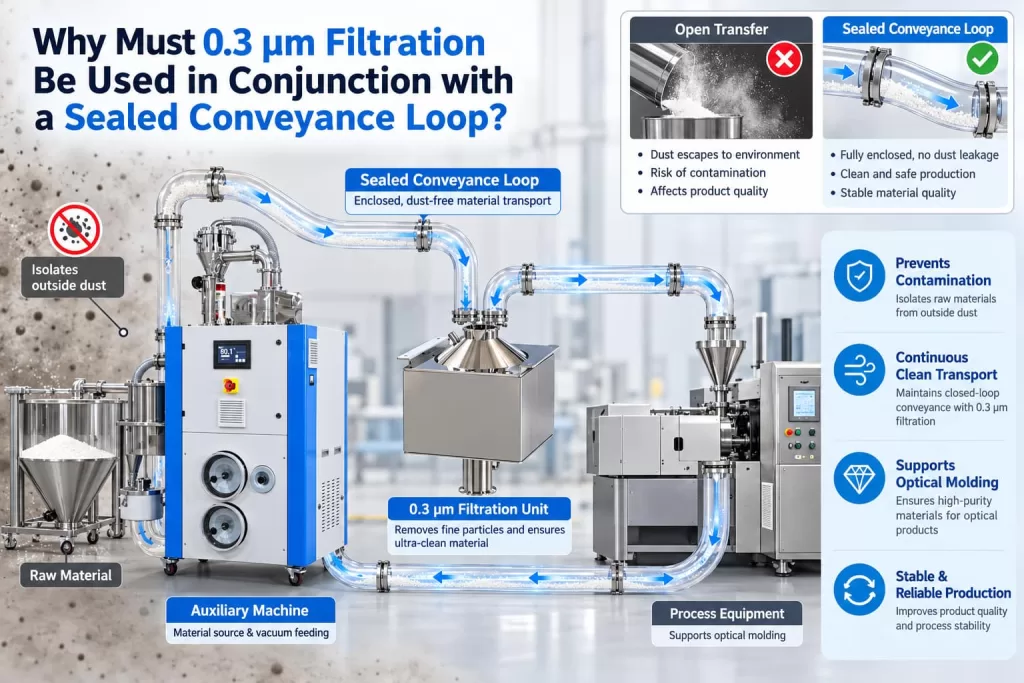

Why Must 0.3 μm Filtration Be Used in Conjunction with a Sealed Conveyance Loop

Achieving Effective Dust Control in Optical Products

Topstar’s TCDH-S optical-grade dehumidifying dryer integrates these control measures into a single material handling system. Its 0.3μm high-efficiency filter reduces the material’s exposure to airborne particulates, while the enclosed conveying loop and anti-contamination components help prevent secondary contamination.

Ultimately, 0.3μm filtration captures airborne particles before they contact the resin, reducing dust contamination; meanwhile, the closed-loop conveying system protects the material from subsequent contamination. For products such as optical lenses, LED components, and light guides, this approach creates a fully enclosed cycle that prevents raw-material contamination.
