Oil‑resistant Dehumidifying Dryer: Drying Solution for High‑oil‑filled Raw Materials

2026/08/17 By le zhan

Oil‑resistant Dehumidifying Dryer

Oil-containing materials are widely used in fields with high mechanical performance requirements, such as automotive components and electronic product housings. Oil molecules in these materials may gradually evaporate and enter the dry air circulation system, thereby contaminating filters and reducing heat transfer efficiency. Therefore, when processing raw materials with high oil content, it is not sufficient to simply use a conventional dehumidifying dryer; instead, a specialized drying and dehumidification system is required that can both maintain stable dew point performance and prevent oil contamination. To address this situation, our TCDH series oil-resistant dehumidifying dryer is specifically designed for difficult-to-process materials such as those with high oil content.

Unlike standard drying equipment, it employs an expanded, multi-stage dehumidification tower design. This system achieves a make-up air dew point of -57°C and maintains the actual process airflow dew point at approximately -38°C, thereby ensuring stable dehumidification performance while minimizing the adverse effects of oil molecules on the drying process.

The Challenge of Drying Materials with High Oil Content

In injection molding, raw materials must be effectively dried before entering the injection molding machine. Residual moisture inside plastic pellets can cause a variety of quality issues. Traditional dehumidifying dryers remove moisture by circulating low-dew-point dry air within the hopper. After absorbing moisture from the pellets, the dry air returns to the drying system for regeneration and reuse.

However, when manufacturers process materials containing oily additives, the drying environment becomes more complex. High-oil materials may release oil vapors during heating. These oil molecules travel with the circulating airflow and gradually accumulate on critical components, including air filters, heat exchangers, air ducts, and drying towers.

Oil-Discharge Design to Prevent Component Damage (1)

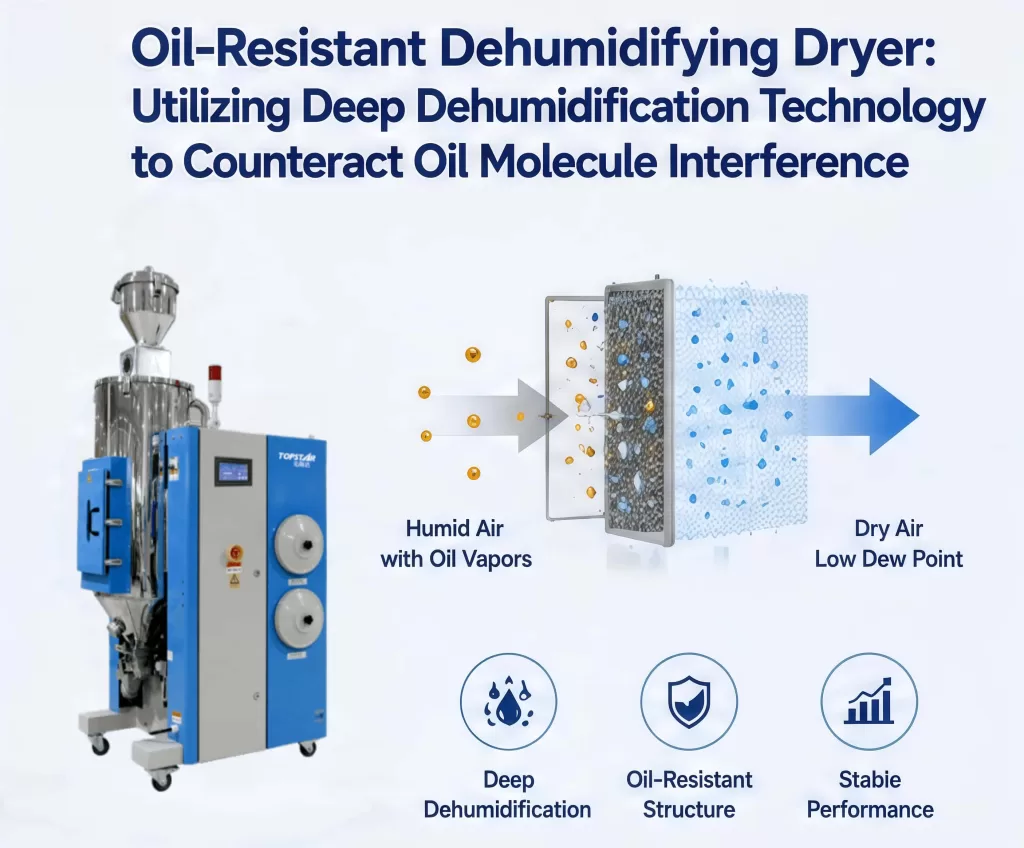

Oil-Resistant Dehumidifying Dryer: Utilizing Deep Dehumidification Technology to Counteract Oil Molecule Interference

For raw materials with high oil content, the biggest challenge is not only removing moisture but also maintaining stable drying performance while preventing oil contamination from affecting the internal circulation system. Traditional drying systems primarily focus on dehumidification, whereas oil-resistant dehumidifying dryers must simultaneously address two major challenges:

Continuously supplying dry air with a low dew point;
Preventing oil molecules from compromising system reliability.

Topstar’s TCDH Series oil-resistant dehumidifying dryers enhance dehumidification capacity while improving resistance to oil contamination, enabling manufacturers to process difficult-to-handle materials more reliably.

Utilizing Deep Dehumidification Technology to Counteract Oil Molecule Interference

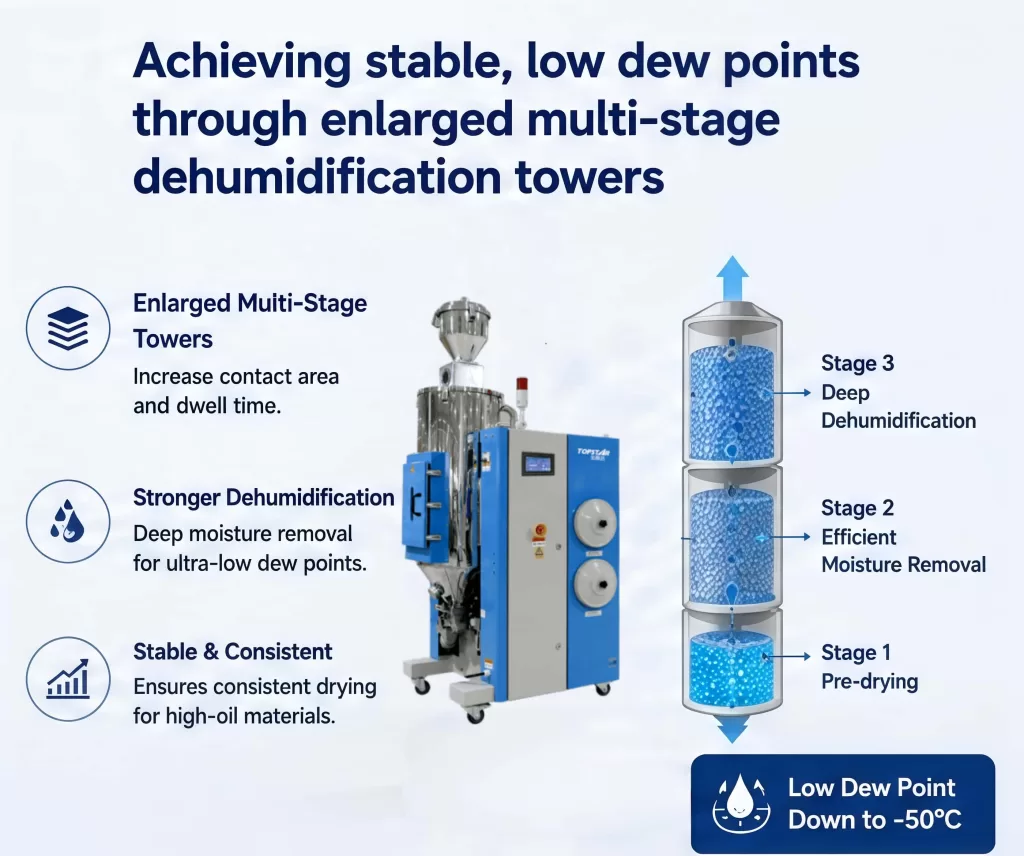

Oil-resistant Dehumidifying Dryer: Enlarged multi-stage dehumidification tower achieves a stable, low dew point

The core of any drying and dehumidification system lies in its ability to maintain stable dry air conditions. For oil-containing materials, dew point stability is even more critical, as oil molecules can interfere with traditional desiccant systems.

The TCDH Series oil-resistant dehumidification dryers feature an enlarged, multi-stage dehumidification tower structure.

Compared to standard designs, this structure offers the following advantages:

  • Higher moisture absorption capacity;
  • More stable regeneration performance;
  • Greater resistance to oil contamination;
  • Longer-lasting continuous drying capability.

Through this optimized design, the system achieves:

Make-up air dew point: as low as -57°C
Actual dried gas dew point: approximately -38°C

This means the equipment can maintain sufficient moisture-absorption capacity even when processing materials containing oil-based additives.

Achieving stable, low dew points through enlarged multi-stage dehumidification towers

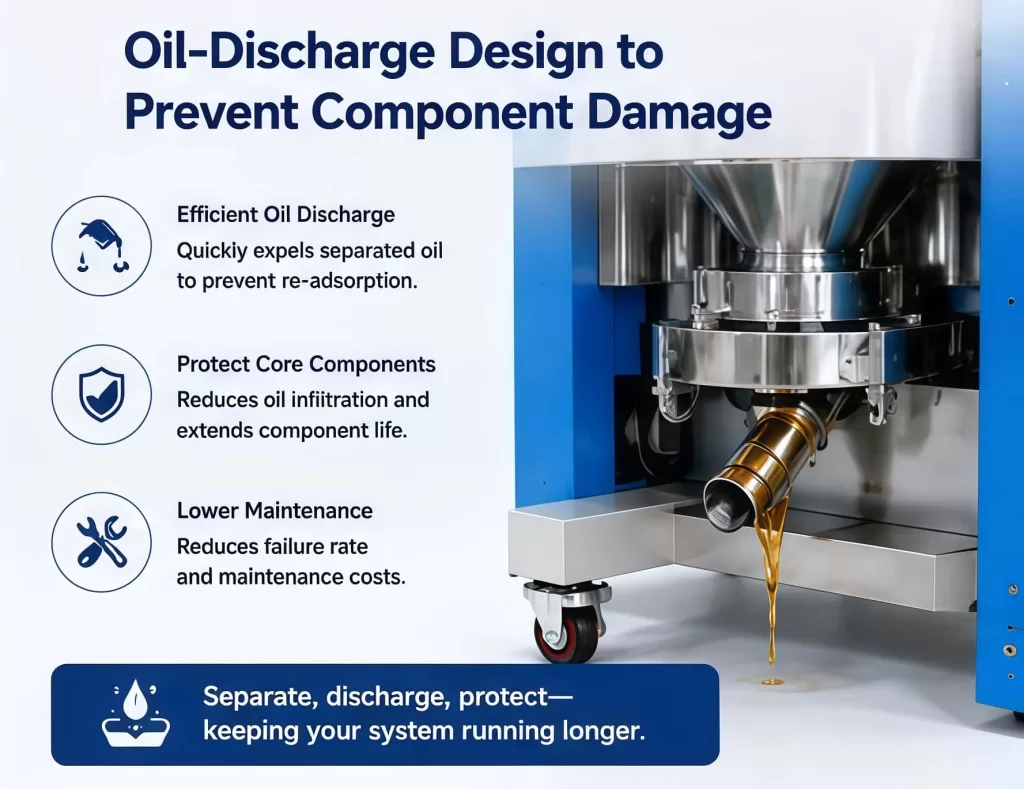

Oil-Discharge Design to Prevent Component Damage

During long-term processing of oil-containing materials, oil buildup is inevitable. Topstar has equipped its TCDH series oil-type dehumidifying dryers with a specialized oil-discharge design. The fan system features a standard oil discharge port that actively removes accumulated oil. With this design, the oil-resistant dehumidifying dryer prevents oil residue from accumulating in the fan system, reducing the risk of mechanical blockages, ensuring stable fan operation, and extending component service life.

This feature significantly reduces unplanned maintenance caused by oil residue buildup.

Oil-Discharge Design to Prevent Component Damage

Oil-Resistant Dehumidifying Dryer Integrates High-Efficiency Oil-Removal Filtration to Ensure Cleaner Operation

Air cleanliness is also critical for any dehumidifying dryer, as the drying airflow comes into direct contact with raw materials. If oil particles circulate repeatedly within the dehumidifying dryer, they may contaminate the drying ductwork, material-contact surfaces, and air-circulation components.

Therefore, the TCDH series of oil-resistant dehumidifying dryers includes built-in, high-efficiency oil-removal filters.

These filters remove oil particles during the dry air circulation process, thereby ensuring:

  • A cleaner airflow;
  • More stable drying conditions;
  • Reduced risk of contamination;
  • Longer equipment service life.

Specialized Oil Drainage Design Reduces Cleaning Frequency

For many manufacturers, equipment maintenance involves more than just repair costs—it directly impacts production efficiency. When dehumidifying dryers require frequent cleaning, manufacturers often face production interruptions, reduced equipment utilization, and the burden of additional maintenance planning.

The oil-resistant dehumidifying dryer features a specially designed clean oil-drainage structure. This design lets operators remove accumulated oil more easily, shortens cleaning, keeps the system clean, and reduces daily maintenance workload. This design supports long-term continuous operation, reducing cleaning frequency and maintenance difficulty.

Ensuring Oil-Containing Raw Materials Are Thoroughly Dried

For ordinary materials, conventional drying equipment may suffice. However, high-oil-content raw materials present additional challenges that require specialized equipment. The TCDH series oil-resistant dehumidifying dryers employ the following design features to ensure oil-containing raw materials remain thoroughly dried:

  • Enlarged multi-stage dehumidification towers;
  • Ultra-low dew point drying capability;
  • Oil-resistant airflow protection;
  • Dedicated oil drainage design;
  • High-efficiency oil filtration.

Combining deep dehumidification with long-term contamination resistance, the TCDH Series Oil-Resistant Dehumidifying Dryers provide manufacturers using oil-containing raw materials with a targeted drying and dehumidification solution that keeps these materials thoroughly dry.
