Optical-grade dehumidifying dryer: Meets industry cleanliness standards and processing requirements

2026/08/07 By le zhan

Optical-grade dehumidifying dryer

Optical components used in lenses, LED light guides, displays, and precision electronic devices require extremely stringent production environments—one that rivals the cleanliness standards of semiconductor manufacturing facilities. Therefore, the drying process in injection molding must not only achieve highly efficient dehumidification but also ensure ultra-high cleanliness and stable temperature control throughout the material handling process. The TCDH-S series from Topstar’s line of dehumidification dryers is an optical-grade dehumidifying dryer.

It integrates optical-grade cleanroom technology, honeycomb desiccant wheel dehumidification technology, precision air filtration technology, and a contamination-resistant material handling design to create a comprehensive optical-grade product drying and dehumidification solution. This ensures that raw materials are protected from moisture, dust, and secondary contamination throughout the entire processing cycle, while meeting ISO cleanliness standards.

Optical-Grade Dehumidifying Dryer Meets the Cleanliness Requirements for Optical Materials

Optical components have extremely high requirements for surface quality and transparency. During the injection molding process, even trace amounts of dust, moisture, or foreign particles can directly affect the final appearance and optical performance of the product. Therefore, optical product manufacturers need more than just a dryer that removes moisture; they require a system capable of preventing contamination throughout the entire material preparation process.

Topstar’s optical-grade dehumidifying dryers meet the requirements for optical-grade clean production. They strictly control environmental cleanliness at every stage—from material storage, conveyance, and drying to feeding—ensuring that resin materials remain protected at all times before entering the molding machine. This integrated approach helps manufacturers reduce defects caused by external contamination and maintain consistent product quality throughout continuous production.

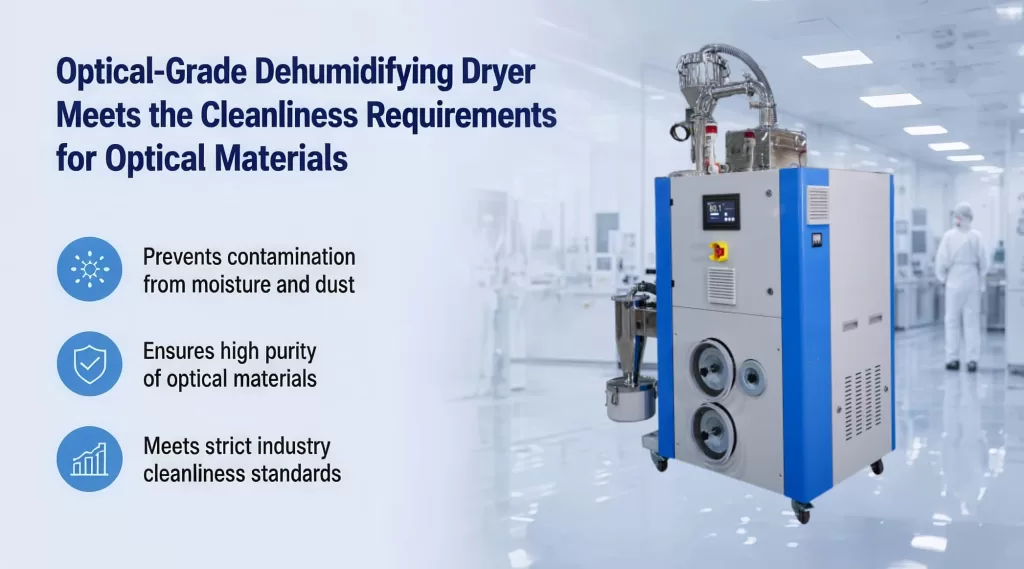

Optical-Grade Dehumidifying Dryer Meets the Cleanliness Requirements for Optical Materials

Optical-Grade Dehumidifying Dryer Compliant with ISO 14644-1 Class 6 Cleanroom Standards

To meet the demands of high-end optical manufacturing, the TCDH-S series is designed in accordance with optical cleanroom principles and complies with the ISO 14644-1 Class 6 cleanroom standard. It effectively reduces:

  • Airborne particles entering the drying process;
  • Dust accumulation on raw material surfaces;
  • Surface defects caused by contamination.

The TCDH-S optical-grade dehumidifying dryer also integrates a 0.3 μm HEPA filter compliant with the EU EN1822 standard, which captures up to 99.97% of airborne particles, enhancing air cleanliness during the drying and conveying processes. Compared to conventional drying equipment, this optical-grade design ensures that the drying air itself does not become a source of contamination. Therefore, manufacturers can confidently use the TCDH-S dehumidifying dryer in the production of precision optical products.

Achieving Deep Drying and Stable Humidity Control

Moisture control is one of the most critical factors in the processing of optical materials. Many optical-grade polymers are highly susceptible to absorbing moisture from the environment. If moisture content is unstable before molding, issues such as hydrolytic degradation and reduced transparency may arise.

In its optical-grade dehumidifying dryers, Topstar employs honeycomb rotor dehumidification technology to deliver consistent drying performance at a low dew point. The honeycomb rotor structure continuously absorbs moisture from the return air and regenerates it through a heating process. This enables the equipment to maintain stable drying performance during long-term operation. The TCDH-S series achieves a drying dew point of approximately -40°C, creating a highly stable, low-humidity environment for optical-grade materials.

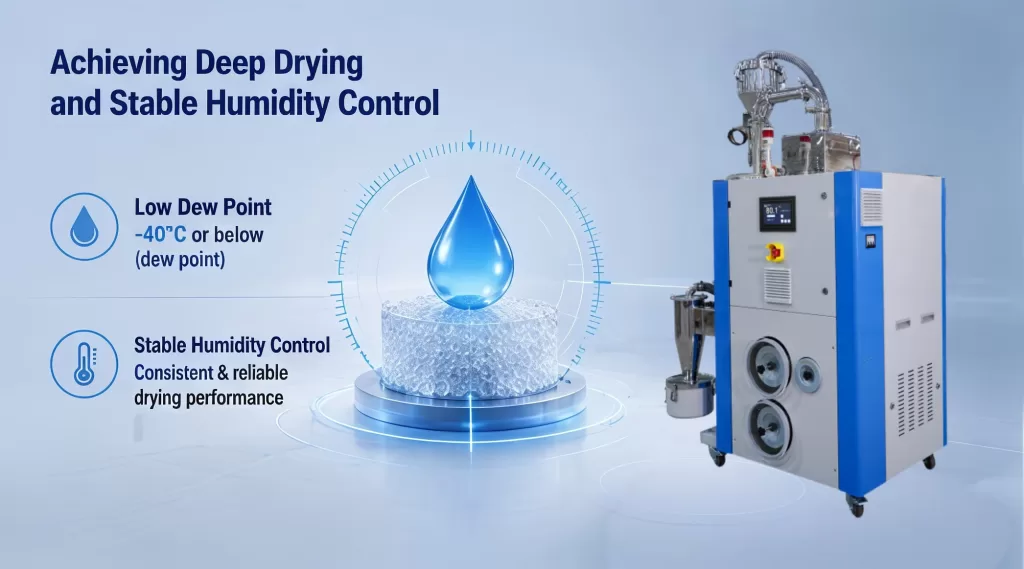

Achieving Deep Drying and Stable Humidity Control

Maintaining Stable Processing Conditions for Sensitive Materials

Optical materials are extremely sensitive to processing conditions; even minor fluctuations can affect the performance of the final product.

Topstar’s optical-grade compact 3-in-1 dehumidifying dryer integrates the following functions:

  • Dehumidification;
  • Drying;
  • Material feeding.

This integrated design minimizes external connections, reducing the risk of material re-moistening or contamination during conveyance. The dehumidifying dryer continuously supplies dry, clean air to ensure materials remain stable before molding. As a result, manufacturers can produce optical products with more consistent optical transparency, lower defect rates, and higher production stability.

Optical-Grade Dehumidifying Dryer Protects Materials Through Contamination-Resistant Conveying Technology

In the field of optical manufacturing, contamination often occurs not within the drying system itself, but during the material conveying process. Traditional conveying components can generate dust due to friction, wear, or improper sealing.

To address this issue, Topstar has incorporated specialized material handling components into the design of its optical-grade dehumidifying dryers. The core design features the following components:

1. Wear-Resistant Optical-Grade PU Feed Tubing:

Optical-grade PU feed tubing offers excellent wear resistance, reducing dust generated by prolonged friction with the material. This effectively prevents particles resulting from tubing wear from entering the material stream, thereby safeguarding the quality of optical components.

2. Dust-removal hopper:

The specially designed hopper helps eliminate dust contamination that may occur during material loading and conveying. By controlling the source of contamination before molding, this system reduces abnormal defects caused by foreign particles.

3. Optical-grade storage bin:

The storage bin is specifically designed for optical material applications. Its sealed structure minimizes external contamination and maintains material cleanliness during temporary storage. These features enable the TCDH-S series to establish a clean material supply chain from storage through molding.

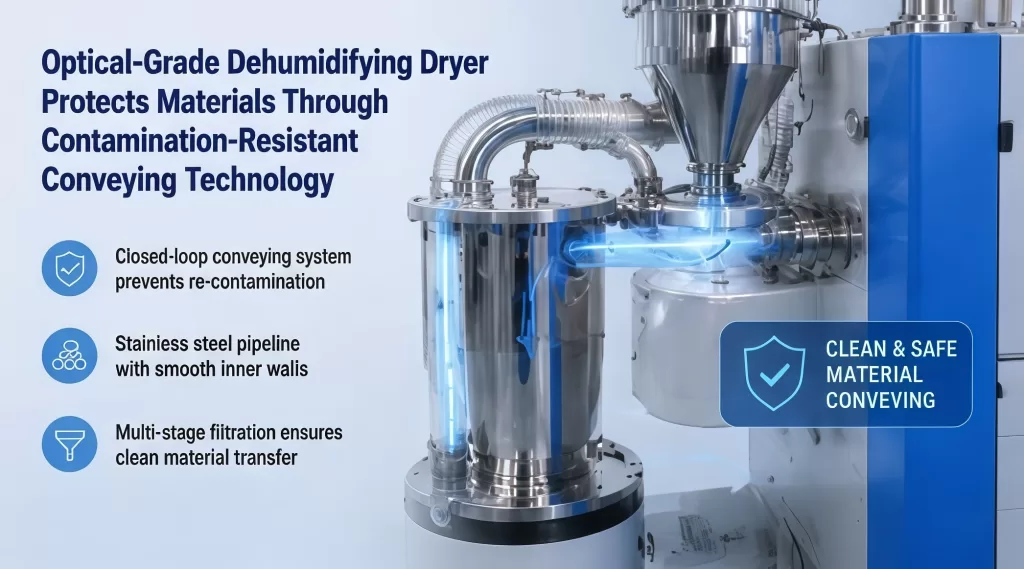

Optical-Grade Dehumidifying Dryer Protects Materials Through Contamination-Resistant Conveying Technology

Preventing Dust Generation During Conveyance

Material conveyance speed and airflow design also affect contamination control effectiveness. Topstar’s optical-grade dehumidifying dryers employ a short-circuit airflow cutoff conveyance method to reduce unnecessary material friction during conveyance. This minimizes dust generation while maintaining efficient conveyance.

At the same time, the sealed air ducts prevent external dust from entering the conveying system, ensuring that clean materials remain pristine throughout the entire process. For optical components, this design prevents the generation of microscopic contaminants.

Providing a Comprehensive Dehumidification and Drying Solution for Optical Materials

In production, the drying and dehumidification stages directly impact molding stability and final product quality. Therefore, the Topstar TCDH-S series integrates the following features to meet the production requirements of optical products:

  • Optical-grade cleanroom design compliant with ISO 14644-1 Class 6 standards;
  • 0.3 μm HEPA filtration system;
  • Honeycomb desiccant wheel dehumidification technology with a dew point of -40°C;
  • Optical-grade material handling components;

These technologies help optical product manufacturers achieve cleaner, more stable, and more efficient production of optical products.
