Topstar 4-axis SCARA robot: Enabling high-speed material handling and precision assembly

2026/06/15 By le zhan

4-axis SCARA robot

The machining quality and efficiency of automated manufacturing processes depend on the ability of industrial robots to perform high-speed material handling and precision assembly. For the common 4-axis SCARA robot, it is essential to effectively balance motion speed, repeatability, rigidity, and adaptability to achieve high-speed handling and precision assembly.

Topstar’s 4-axis SCARA robots feature a repeatability of ±0.01 mm, rotational backlash of less than 1 arc minute, a cycle time of 0.36 seconds with a 2 kg payload, and a lightweight, topologically optimized arm structure, enabling them to meet the performance demands of high-speed material handling and precision assembly in manufacturing.

The 4-Axis SCARA Robot for Precision Assembly

In terms of precision, the Topstar 4-axis SCARA robot offers a repeatability of ±0.01 mm and rotational backlash of less than 1 arcminute. It ensures the robot consistently returns to the same position, enabling precision assembly, delicate part transfer, and accurate material handling.

Rotational backlash is one of those hidden mechanical issues that can compromise accuracy even when a SCARA robot appears to be moving normally. If the drive system allows excessive rotational backlash, the robotic arm cannot move precisely along a predetermined path, especially during rapid direction changes. Topstar minimizes rotational backlash to within 1 arc minute, thereby improving the robot’s motion quality and enhancing its ability to maintain precise positioning.

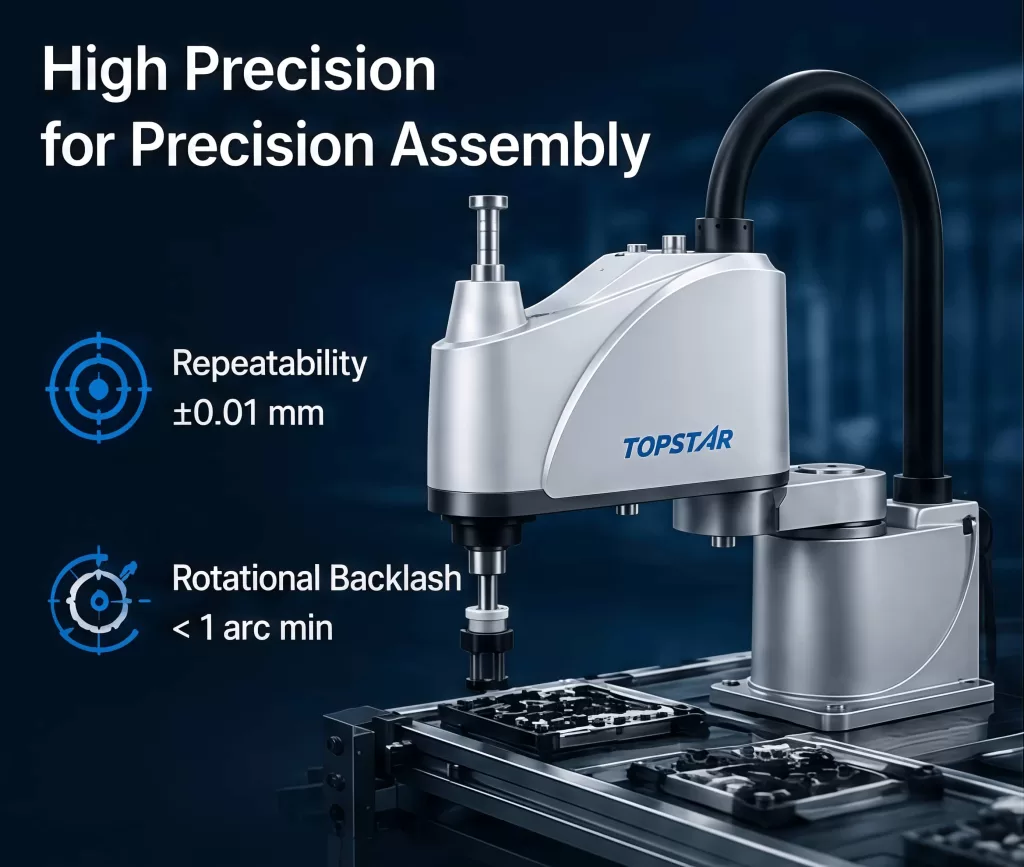

The 4-Axis SCARA Robot for Precision Assembly

35% Improvement in Path Accuracy

Topstar’s 4-axis SCARA robot improves path accuracy by 35%, helping to overcome operational limitations faced by many users in real-world production scenarios.

Path deviations can lead to subtle issues. The robot may reach the correct endpoint, but if its path is unstable, the entire process may still suffer from issues such as vibration, misalignment, or timing inconsistencies. Higher path accuracy helps the 4-axis SCARA robot move more smoothly, thereby improving component handling and increasing the reliability of the assembly process. In addition, it enables the robot to support a wider range of precision tasks, handle parts with greater care, and reduce the likelihood of subtle motion errors that affect quality.

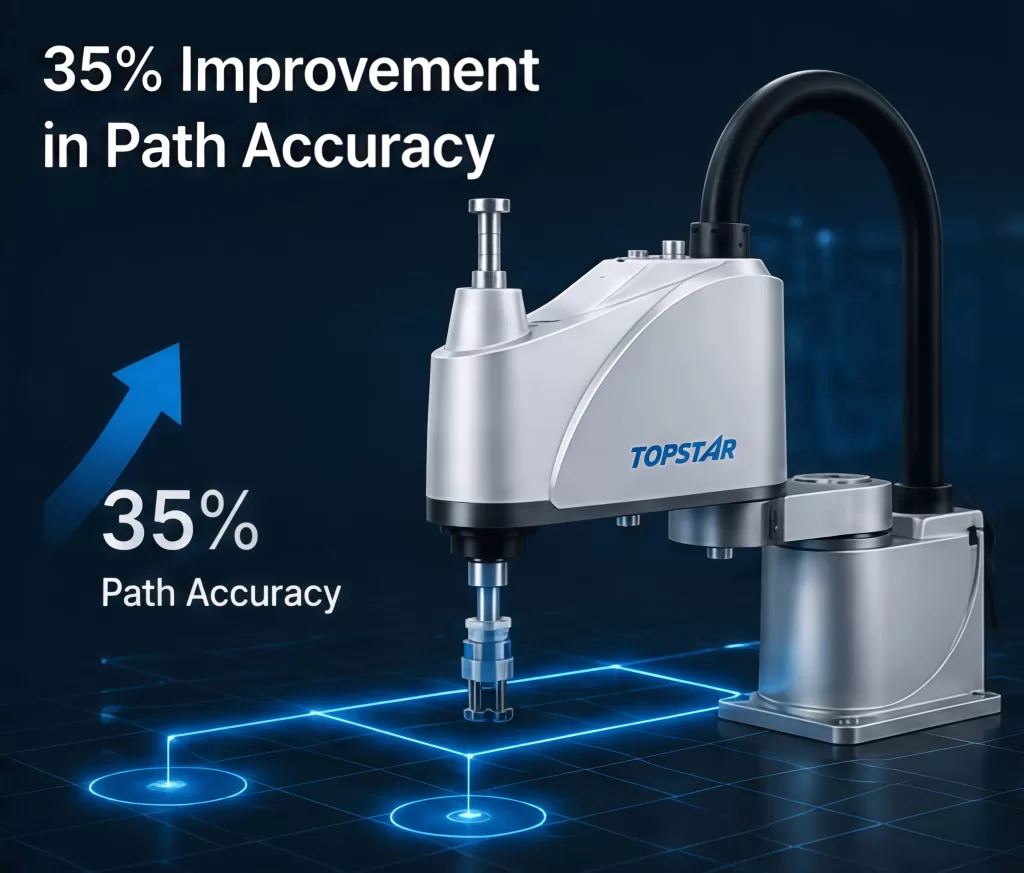

35% Improvement in Path Accuracy

High-Speed, Lightweight 4-Axis SCARA Robot

Cycle Time as Low as 0.36 Seconds

Speed is one of the most notable features of Topstar’s 4-axis SCARA robots. Equipped with a proprietary controller, Topstar’s 4-axis SCARA robots achieve a cycle time of just 0.36 seconds with a payload of 2 kg. In high-volume production environments, this reduced cycle time directly boosts output.

20% Faster Acceleration for Quicker Cycle Response

A significant portion of a SCARA robot’s operating cycle is spent not at maximum speed, but during acceleration and deceleration. If these transition phases are slow, the entire cycle time will be prolonged, even if the peak speed is high. Topstar’s 4-axis SCARA robot reduces acceleration time by 20%, allowing it to start moving sooner, complete transfers faster, and better synchronize with the rest of the production line.

25% Faster Deceleration, Maintaining Stability

Speed is not only reflected in how quickly a robot starts but also in the precision with which it stops. Topstar’s design enhances equipment stability and reduces the time required to decelerate from high speed to a complete stop by 25%. When the 4-axis SCARA robot can stop more efficiently, it completes motion cycles with superior control. This reduces overshoot, improves placement consistency, and lowers mechanical stress, ensuring excellent stability during high-speed material handling.

Lightweight TopoOpt Structure and Flexible Configuration

Topstar’s 4-axis SCARA robots feature a unique, TopoOpt high-rigidity arm design. This approach reduces weight while maintaining structural strength, giving the robot the dual advantages of low inertia and minimal vibration. A lighter arm accelerates and decelerates faster, thereby improving cycle performance. At the same time, the rigid structure ensures the robot remains stable during motion. This balance is precisely what high-speed material handling requires.

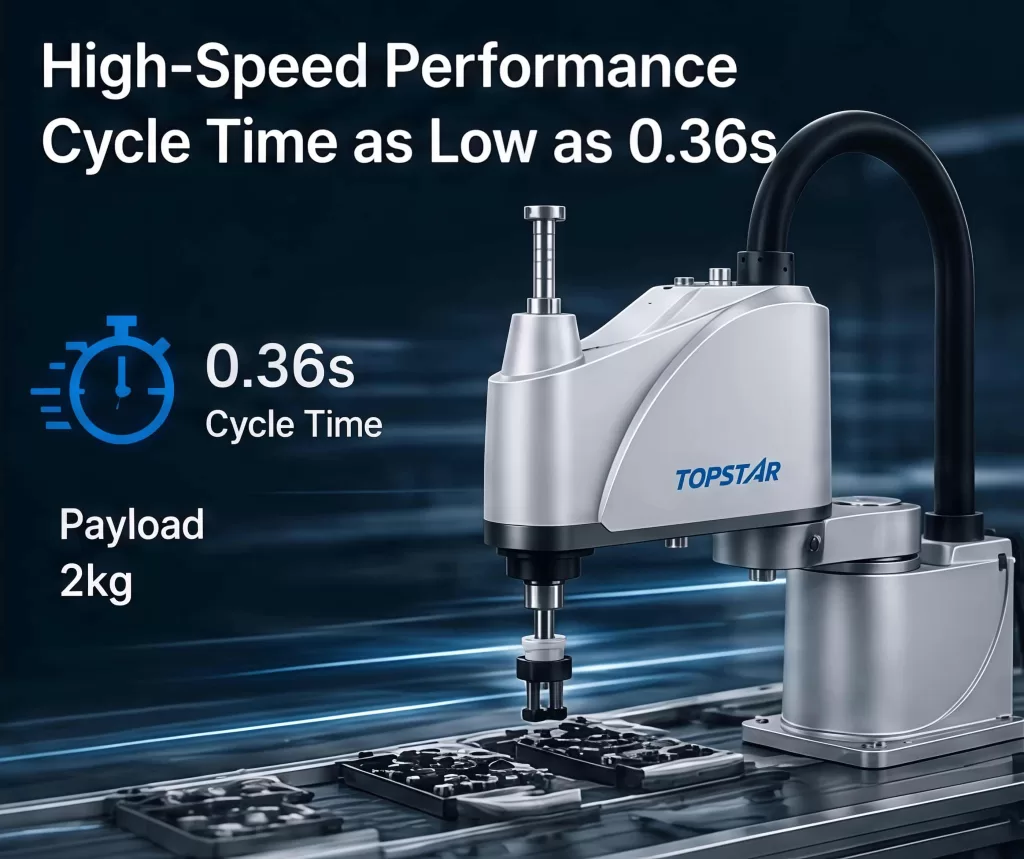

High-Speed, Lightweight 4-Axis SCARA Robot

4-Axis SCARA Robot with Arm Lengths from 400 mm to 700 mm

To meet a wide range of precision assembly needs, Topstar offers arm lengths from 400 mm to 700 mm. In this way, customers have more flexibility when choosing the SCARA robot that best fits their applications. At the same time, these different arm lengths allow the 4-axis robot to adapt to various production line layouts without forcing customers to redesign their processes around the machine.

Payload Range: 1–6 kg

Different automated manufacturing tasks require varying payload capacities. Some tasks involve very lightweight components, while others require greater material-handling capability. Topstar’s 4-axis SCARA robots feature payloads ranging from 1 kg to 6 kg, making them suitable for applications in PCB manufacturing, food packaging, medical devices, consumer goods, and more. They are capable of meeting the needs of diverse industries and processes.

4-axis SCARA robot for high-speed handling and precision assembly

Topstar’s 4-axis SCARA robots combine high-speed material handling with precision assembly. They achieve this through exceptional repeatability, higher path accuracy, fast cycle performance, a lightweight, topologically optimized structure, and flexible configuration options. This effectively helps businesses improve production efficiency and product quality.
