Water-type Mold Temperature Controller’s TTWB vs TTWP Series: Flagship vs Standard Series

2026/06/10 By le zhan

water-type mold temperature controller 1-3

The TTWP series is Topstar’s standard water-type mold temperature controller, while the TTWB series is the flagship model that features integrated ultrasonic detection. Both series share the same core functions, but the flagship model adds ultrasonic detection, significantly enhancing mold temperature control during injection molding. This is the fundamental difference between the two series. If you’d like to learn more about their distinctions, please continue reading.

How do the TTWB and TTWP water-type mold temperature controller differ in their market positioning?

The standard TTWP series primarily addresses common mold temperature control issues

The TTWP series is Topstar’s standard water-type mold temperature controller. Its primary function is to provide stable, precise, and long-lasting temperature control for general and precision injection molding applications. In typical production environments, the TTWP series addresses the most common issues operators face daily: temperature instability, component wear, leakage risks, and intelligent monitoring.

The TTWP series mold temperature controllers are designed with durability at their core. Their indirect heaters do not come into direct contact with the medium. The direct heater is made of copper, extending its service life by 40%. The monolithic cast structure, combined with single-sided welding and double-sided forming processes, reduces the number of weld seams and lowers the risk of leaks. For buyers seeking a standard mold temperature controller, the TTWP series offers exceptional value. It provides factories with precise temperature control and excellent durability.

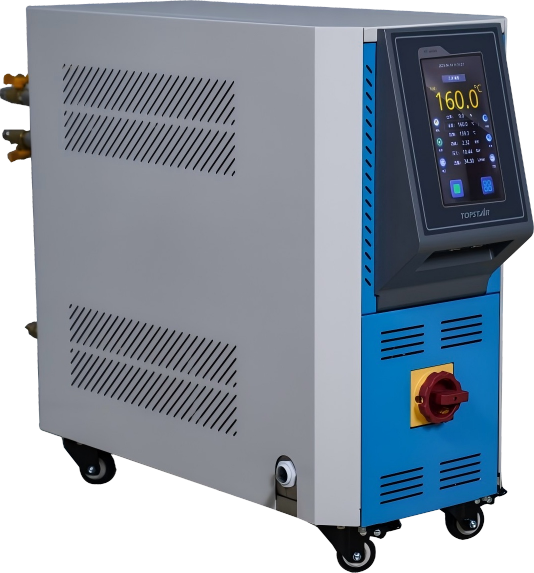

TTWP series mold temperature controller

The TTWB Flagship Series with Added Ultrasonic Detection

The TTWB series is a flagship water-cooled mold temperature controller that adds a key feature not found in the standard TTWP: integrated ultrasonic detection. This feature elevates the unit from a simple temperature measurement device to a more comprehensive safety and diagnostic system.

In actual factory settings, fluid flow issues are not always immediately apparent. Pipes may begin to leak slowly, scale may gradually clog flow channels, and bubbles may form in the medium, leading to cavitation. Operators may not notice these issues until mold temperatures become unstable or a failure occurs. By monitoring medium flow in real time without affecting the original flow rate, the TTWB series helps detect these risks early. It retains all the advantages of the TTWP while adding active detection and early warning capabilities.

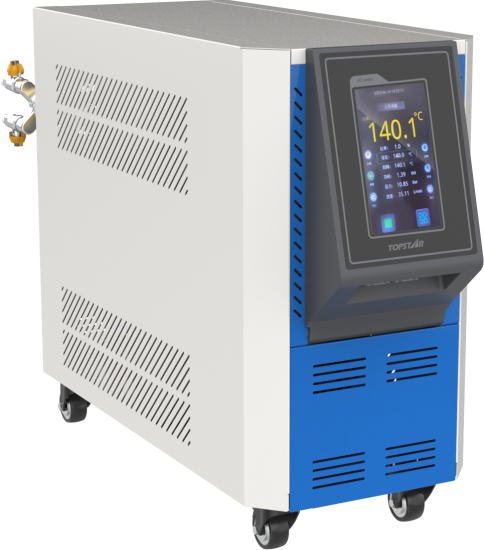

TTWB series water-based mold temperature controller

Detailed Comparison of the TTWB and TTWP Series

FeatureTTWP Standard SeriesTTWB Flagship Series
Heater designIndirect heater / direct copper heaterSame as TTWP
StructureOne-piece casting, fewer weldsSame as TTWP
Temperature controlThird-generation PID, ±0.5°CSame as TTWP
Intelligent controlTouchscreen, timed on/off, RS485 + MODBUSSame as TTWP
Flow monitoringStandard control onlyIntegrated ultrasonic detection
Bubble detectionNot availableDetects bubbles up to 22 mm
Leak and scaling predictionNot availableDetects low flow caused by leaks and scaling
Mold applicabilityStandardCan drive larger molds with same power

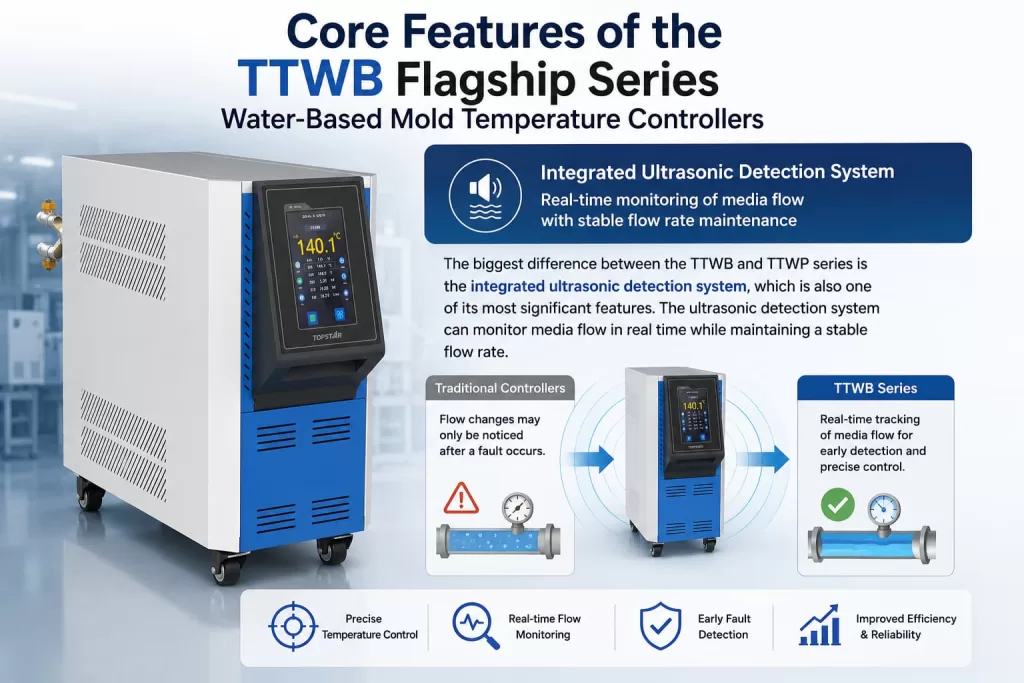

Key Features of the TTWB Flagship Series Water-Type Mold Temperature Controller

The most significant difference between the TTWB and TTWP series is the integrated ultrasonic detection system, which is also a standout feature. The ultrasonic detection system monitors the medium’s flow rate in real time while maintaining a stable flow rate.

In standard injection mold temperature controllers, operators may only notice changes in flow rate after a malfunction has occurred. The TTWB series changes this by tracking the flow of the medium within the system. This provides the factory with a clearer understanding of the operating conditions inside the temperature controller circuit, allowing the controller to maintain precise temperature control while also providing diagnostic information.

Key Features of the TTWB Flagship Series Water-Type Mold Temperature Controller

Bubble Detection Reduces the Risk of Cavitation and Mold Damage

Cavitation is extremely dangerous because it causes flow instability and can damage the circulatory system over time. If bubbles are ignored, the mold may fail to achieve the required stable thermal control. The TTWB series can detect bubbles up to 22 millimeters in diameter. This helps reduce cavitation and protects the mold. By identifying bubbles early,

The TTWB series water-type mold temperature controllers allow operators to respond before the situation worsens. The bubble detection feature is one of the most significant advantages that sets the TTWB series apart from standard mold temperature controllers. It proactively helps plants manage risks.

Detects low flow caused by leaks and scaling

Another key feature of the TTWB series is its ability to identify low flow caused by pipe leaks and scaling. These are common issues in water-type mold temperature controllers. Minor leaks can gradually degrade performance. Scaling narrows the circuit, reducing flow. If the controller fails to detect these changes early, the mold may operate suboptimally.

The TTWB series addresses this issue by alerting factories before failures become severe, helping them anticipate problems before a complete shutdown occurs.

Same Power Output Drives Larger Molds

One of the TTWB’s most practical advantages is its ability to drive larger molds with the same power output. This enhances versatility and makes the flagship series of temperature-control units more flexible during production. This is a significant advantage for factories that use large molds or require controllers with a wider control range.

A machine capable of supporting larger molds without increasing power provides factories with more options. It can handle a broader range of applications while maintaining the same core control platform. This not only improves efficiency but also makes water-type mold temperature controllers more versatile across different production lines.

Choose the right mold temperature controller for you

NeedBetter Choice
Stable daily productionTTWP
Durable standard performanceTTWP
Real-time flow monitoringTTWB
Bubble and cavitation detectionTTWB
Leak and scaling predictionTTWB
Larger mold support with same powerTTWB
Lower complexity and strong valueTTWP

The TTWP is a reliable standard series that prioritizes durability, precise control, and intelligent daily operation. The TTWB is the flagship series, built on the TTWP with enhanced features, including ultrasonic detection for real-time flow monitoring, bubble detection, early leak and scaling warnings, and broader mold compatibility.

For factories seeking stable production, reduced downtime, and better mold protection, the TTWP offers robust standard performance, while the TTWB adds an even higher level of safety and intelligence. If you’re unsure which model to choose, please get in touch with us—we can help you select the most suitable mold temperature controller based on your specific needs.
