Injection Molding Whole Plant Solution for High-end Liquor Bottle Cap Production

2026/08/26 By le zhan

Injection Molding Whole Plant Solution for High-end Liquor Bottle Cap Production

The liquor packaging Industry must meet three basic requirements: compliance with food contact safety standards, a clear and consistent appearance, and reliable sealing performance. To meet these standards, injection molding machines alone are not sufficient; strict control is also required over processes such as material storage, conveyance, drying, cooling, molding, and automated part removal. For customers producing high-end liquor bottle caps, Topstar provides an injection molding whole plant solution that seamlessly integrates a constant-pressure intelligent water system, automated material handling, a central feeding system, dehumidification and drying equipment, injection molding machines, and Cartesian robots.

As a result, the injection molding whole plant solution reduced energy consumption for circulating cooling water by about 30%, cut labor requirements for material handling by more than 60%, and increased overall production efficiency by about 50%.

Why does liquor bottle cap production require a injection molding whole plant solution?

Liquor Bottle cap quality depends on stable material conditions, precise molding parameters, uniform cooling, and controlled product handling. Fluctuations in any production stage can affect the cap’s appearance, dimensions, or sealing reliability. An injection molding whole plant solution manages these stages as a coordinated system rather than letting individual machines operate independently. This approach focuses on three key aspects:

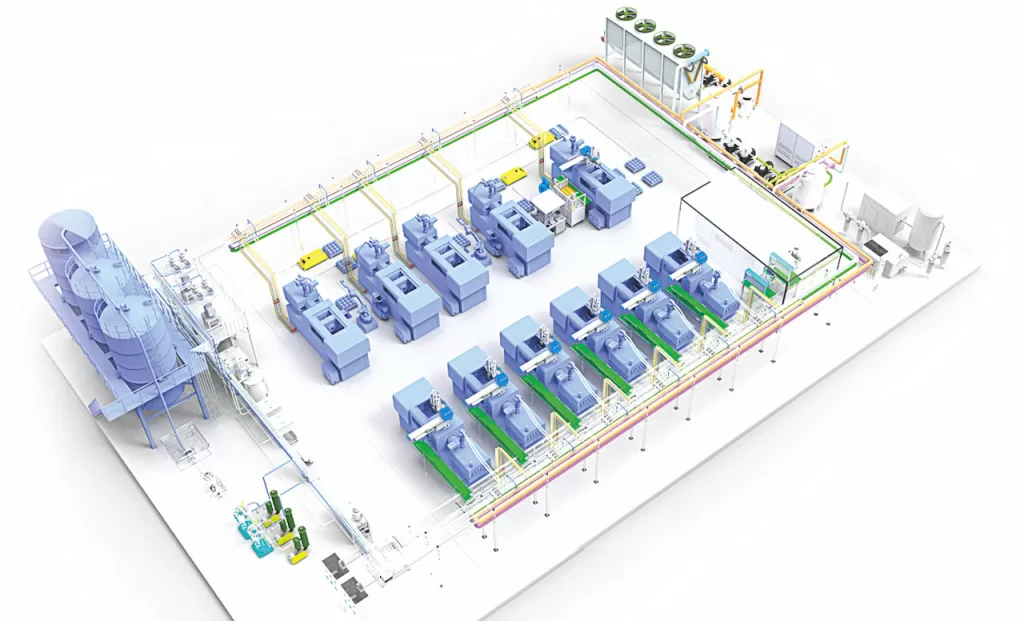

injection molding whole plant solution

Food Contact Safety

Manual material handling exposes raw materials to dust, moisture, and operators, posing a risk of contamination. Topstar employs enclosed conveying pipelines and automated feeding equipment to establish a clean conveying path from material storage to the injection molding machine.

Clear and Consistent Appearance

Defects are often particularly noticeable on transparent or high-gloss liquor bottle cap components. Moisture or impurity contamination can lead to silver streaks, bubbles, surface imperfections, and reduced transparency. The integrated drying and conveying system precisely controls the material’s condition before molding, helping customers maintain consistent product appearance.

Reliable Sealing Performance

Liquor Bottle caps must maintain precise dimensions and stable sealing performance during transportation, storage, and use. Stable material preparation, cooling, molding, and automated part retrieval processes help enhance product consistency in continuous production.

Core Systems in Topstar’s Turnkey Injection Molding Solutions

Topstar’s injection molding whole plant solution integrates multiple key systems tailored to the specific production requirements of liquor bottle caps.

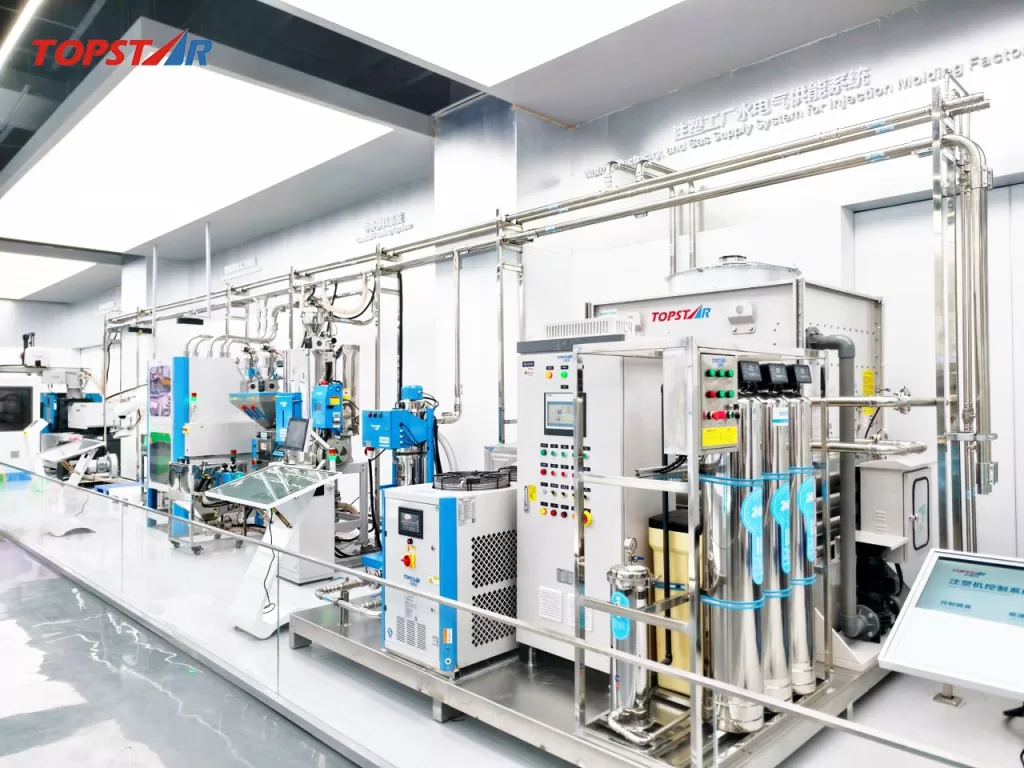

Constant-pressure Intelligent Water System

Stable cooling water pressure is critical for controlling mold temperature, product cooling, and molding cycles. Pressure fluctuations can cause uneven cooling or longer production cycles. Topstar’s constant-pressure intelligent water system adjusts water supply based on production needs and offers the following advantages:

  • Maintains stable cooling water pressure;
  • Ensures uniform mold cooling;
  • Reduces unnecessary pump operation;
  • Improves molding cycle consistency;
  • Enables centralized water distribution management.

This system reduces energy consumption for circulating cooling water by approximately 30%.

Constant-pressure Intelligent Water System

Automated Material Handling

Traditional material handling requires operators to manually transport, open bags, store, and feed materials. These activities are labor-intensive and increase contamination risk.

Topstar uses automated feeding and material-handling equipment to integrate material storage with the production process. Project data shows that this configuration reduces labor requirements for material handling by more than 60%. Automation also improves on-site management and makes material flow between storage areas and production equipment more predictable.

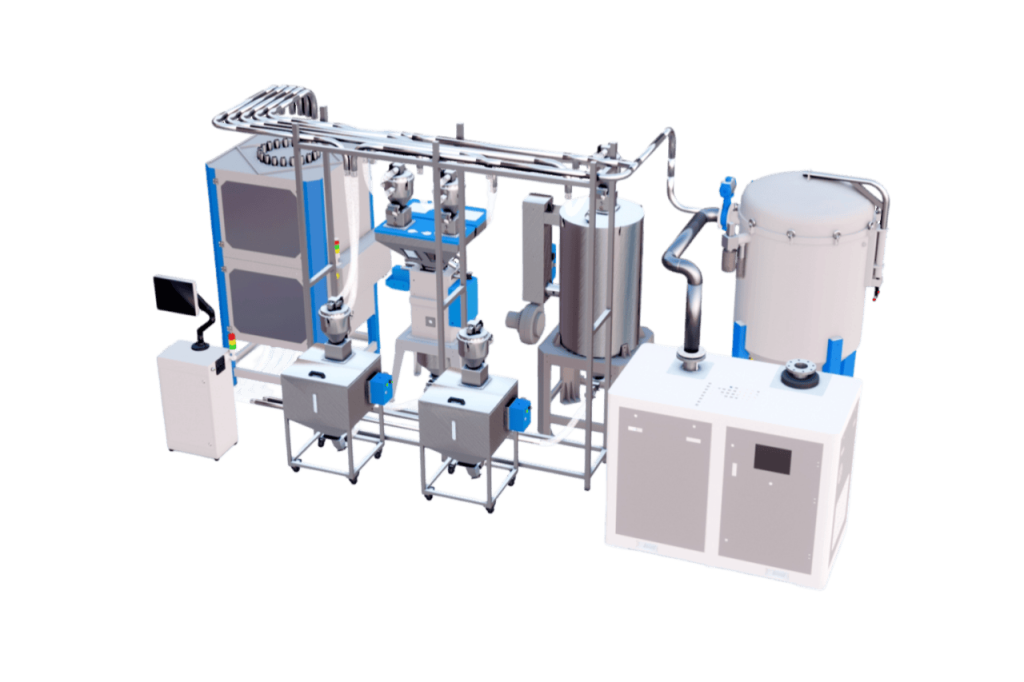

Central feeding system

The central feeding system is central to raw material handling. It connects material storage, metering, drying, conveying, and machine-end demands through a centralized network. Raw materials move through enclosed pipelines rather than open containers or manual carts. The system provides:

  • Dust-free automated conveying;
  • Centralized material distribution to multiple machines;
  • Reduced manual feeding;
  • Flexible material allocation;
  • A cleaner production environment;
  • More stable material conveyance.

For liquor bottle cap manufacturers, a central material supply system improves production efficiency while ensuring food-contact safety.

Central Feeding System 1

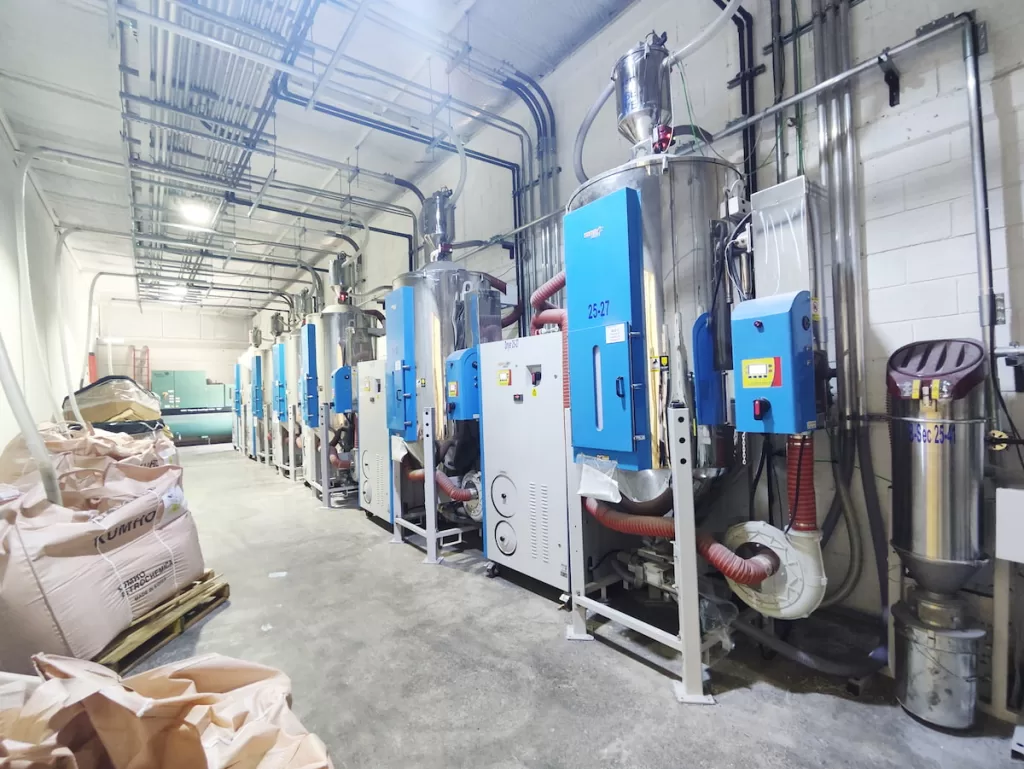

High-Precision Metering and Dehumidification Drying

Precise material metering is critical when manufacturers use different polymers, color concentrates, or additives. Topstar integrates high-precision metering modules to optimize mixing ratios, reduce waste, and maintain product consistency.

This turnkey injection molding solution also combines the central material supply system with a “three-in-one” dehumidifying and drying unit. Removing moisture before molding helps prevent quality issues such as silver streaks, bubbles, moisture-induced surface defects, and reduced transparency. Furthermore, the sealed conveying system after drying prevents the material from reabsorbing moisture before it reaches the injection molding machine.

High-Precision Metering and Dehumidification Drying

Quick Changeover Design

Liquor beverage packaging manufacturers often need to produce liquor bottle caps in a variety of colors, designs, and materials. Slow material changeover can cause downtime and reduce production flexibility.

Topstar’s rapid material changeover design helps manufacturers switch between production tasks more efficiently. This design minimizes production interruptions, supports flexible order scheduling, and reduces the risk of material residue in the conveying lines. When combined with other systems, this design boosts overall production efficiency by approximately 50%.

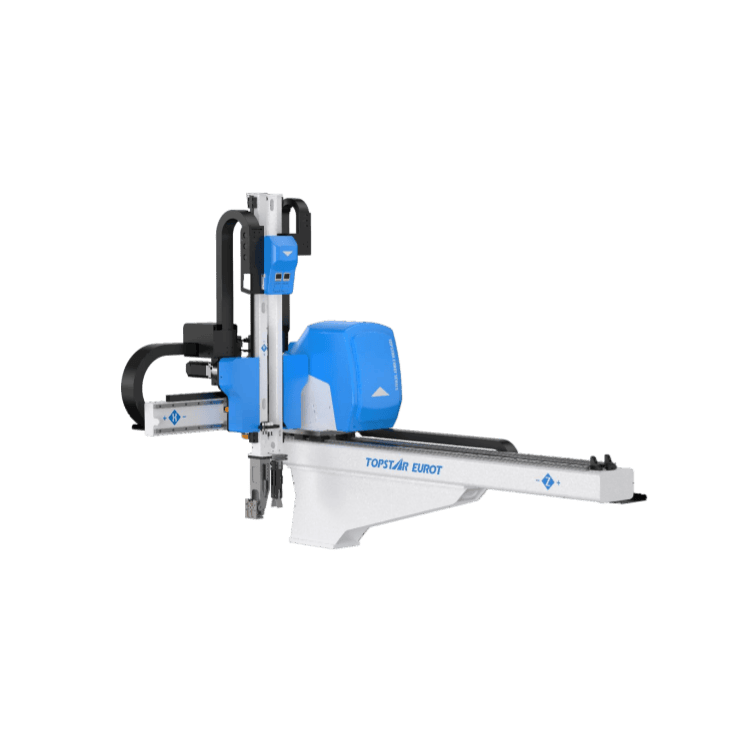

Cartesian Robot for Automatic Part Retrieval

After injection molding, bottle cap assemblies must be retrieved quickly and reliably. Manual retrieval can lead to fluctuating cycle times, contamination, scratches, or product deformation. Topstar uses a Cartesian robot to automatically remove parts at the molding station. Its programmable motion control ensures precise positioning and repeatable handling operations. During part removal, it maintains consistent removal times and precise positioning while minimizing manual contact, thereby reducing the risk of surface damage and facilitating integration with downstream automated equipment. For transparent bottle caps or those with strict aesthetic requirements, controlled robotic handling helps protect the finished product’s surface.

Cartesian-Injection-Robot

How an Injection Molding Whole Plant Solution Works？

This comprehensive process seamlessly integrates material preparation, utilities, molding, and product handling. It primarily links the following three core stages:

Material Preparation and Conveyance:

Raw materials are managed in a centralized storage area. High-precision weighing modules handle on-demand batching, while a dehumidification and drying system removes moisture. The central material supply system then conveys the processed materials to designated injection molding machines via enclosed piping.

Stable Molding and Cooling:

Injection molding machines process the materials under controlled parameters. Meanwhile, a constant-pressure intelligent water system provides stable cooling conditions, ensuring consistency in molding cycles and product quality.

Automated Part Removal:

After molding, a Cartesian robot retrieves the liquor bottle cap assemblies and conveys them to the next production stage. This process minimizes manual handling and maintains high repeatability in production cycles.

Through this coordinated workflow, the factory integrates material requirements, drying, conveying, cooling, molding, and product removal into a seamless operational process.

Project Outcomes and Manufacturing Value

Topstar’s injection molding whole plant solution for high-end liquor bottle cap production has achieved the following results:

  • Energy consumption for circulating cooling water reduced by approximately 30%;
  • Labor required for material handling reduced by over 60%;
  • Overall production efficiency increased by approximately 50%;
  • Cleaner and more automated material handling;
  • Reduced risk of product defects caused by moisture issues;
  • More stable cooling and molding conditions;
  • Precise automated part removal.

Actual results may vary depending on factory layout, material type, production volume, cap design, existing equipment, and automation requirements. These systems work in tandem to reduce process fluctuations and create a cleaner, more transparent, and more efficient factory environment.

For manufacturers planning to build new cap factories or upgrade existing production lines, Topstar can tailor injection molding whole plant solutions based on material properties, product structure, factory layout, production scale, automation level, and future expansion needs.
